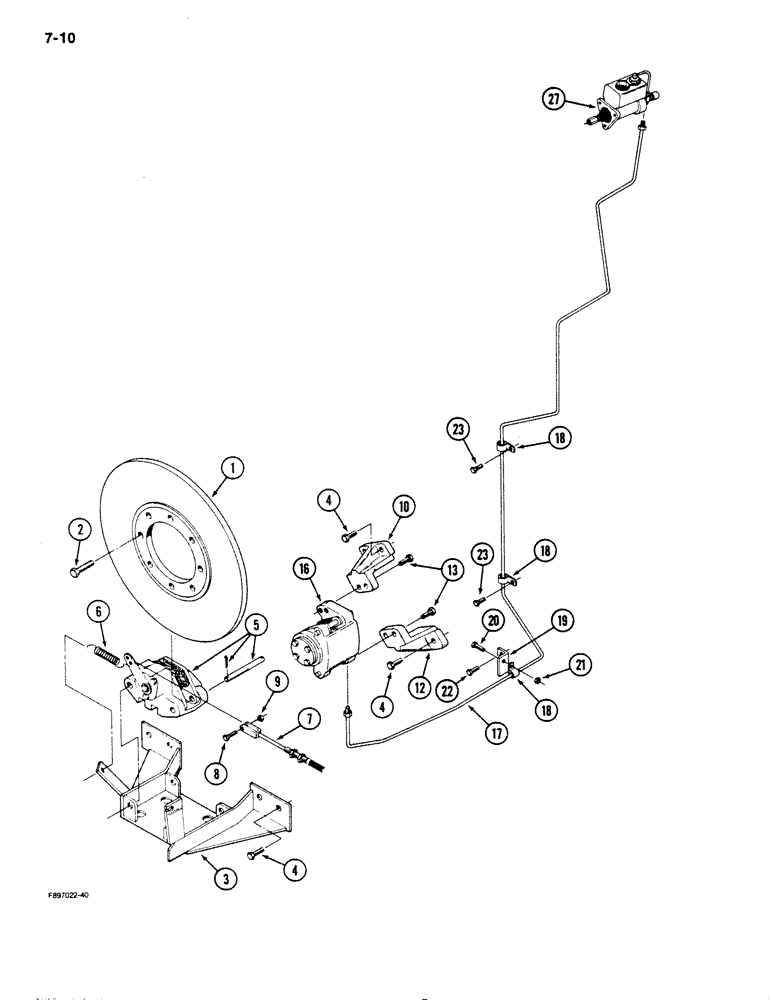

Запчасти Case IH 9110 (7-10) - BRAKE SYSTEM, IF EQUIPPED (07) - BRAKES

1

90-7028T1

BRAKE DISC

DISC - brake, 18 inch diameter

1шт.

2

19-6089

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8

- flanged, 1/2 NC x 1-1/2 inch, Grade 8

8шт.

3

90-7112T1

ANCHOR

MOUNT - caliper, park brake

1шт.

4

19-839

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch, Grade 8

8шт.

5

REF

INSTRUCTION

CALIPER ASSEMBLY - park brake (See Fig. 7-16)

1шт.

6

90-2902T1

SPRING

- retractor (See Fig. 7-16)

1шт.

7

60-5008T2

CABLE

- actuating, park brake

1шт.

8

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

1шт.

9

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

10

90-7026T1

MOUNTING PARTS

MOUNT - caliper, hydraulic brake, top

1шт.

12

90-7027T1

MOUNTING PARTS

MOUNT - caliper, hydraulic brake, bottom

1шт.

13

9424760

SCREW,5/8" - 11 x 2", Gr 8

BOLT - hex, 5/8 NC x 2 inch, Grade 8

4шт.

16

REF

INSTRUCTION

CALIPER ASSEMBLY - hydraulic brake (See Fig. 7-14)

1шт.

17

90-7031T1

TUBE,.25" OD

- brake line, caliper to master cylinder

1шт.

18

31-1862

CLAMP

- tube

3шт.

19

90-6894T1

SUPPORT

BRACKET - clamp mount

1шт.

20

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

SM8121240

BOLT

BOLT - hex, 12 mm - 1.75 x 40 mm

1шт.

23

SM8120825

BOLT

- hex, 8 mm - 1.25 x 25 mm

2шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - master, brake (See Fig. 7-18)

1шт.
