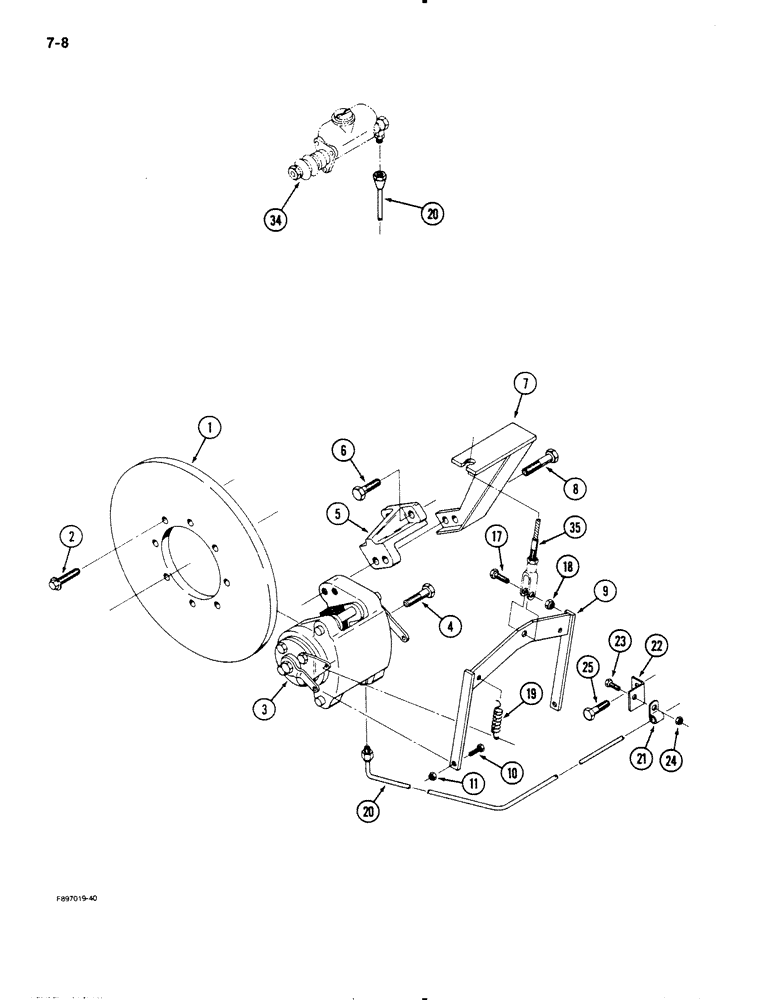

Запчасти Case IH 9110 (7-08) - BRAKE SYSTEM (07) - BRAKES

1

90-6479T1

BRAKE DISC

DISC - brake, 15 inch diameter

1шт.

2

19-6089

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8

- flanged, 1/2 NF x 1-1/2 inch, Grade 8

8шт.

3

REF

INSTRUCTION

CALIPER - brake (See Fig. 7-10)

1шт.

4

9424760

SCREW,5/8" - 11 x 2", Gr 8

BOLT - hex, 5/8 NC x 2 inch, Grade 8

2шт.

5

90-6481T1

SUPPORT

MOUNT - caliper, top and bottom

2шт.

6

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

7

90-6466T3

BRACKET

- cable mount

1шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, Grade 8

2шт.

9

90-4030T1

SUPPORT

BRACKET - actuating, park brake

1шт.

10

19-654

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, Grade 8

2шт.

11

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

17

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

1шт.

18

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

19

REF

INSTRUCTION

SPRING - retractor, park brake (See Fig. 7-12)

1шт.

20

90-6722T1

TUBE,.25" OD

- brake line, master cylinder to brake caliper

1шт.

21

31-1862

CLAMP

- tube

3шт.

22

90-6894T1

SUPPORT

BRACKET - clamp mount

1шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

SM8121240

BOLT

BOLT - hex, 12 mm - 1.75 x 40 mm

1шт.

34

REF

INSTRUCTION

CYLINDER ASSEMBLY - master, brake (See Fig. 7-2)

1шт.

35

60-5615T1

CABLE

- park brake, 32 inch (See Fig. 7-6)

1шт.
