Запчасти Case IH 9110 (6-70) - AXLE ASSEMBLY, AXLE SHAFT AND HOUSING, K593 BAR AXLE (06) - POWER TRAIN

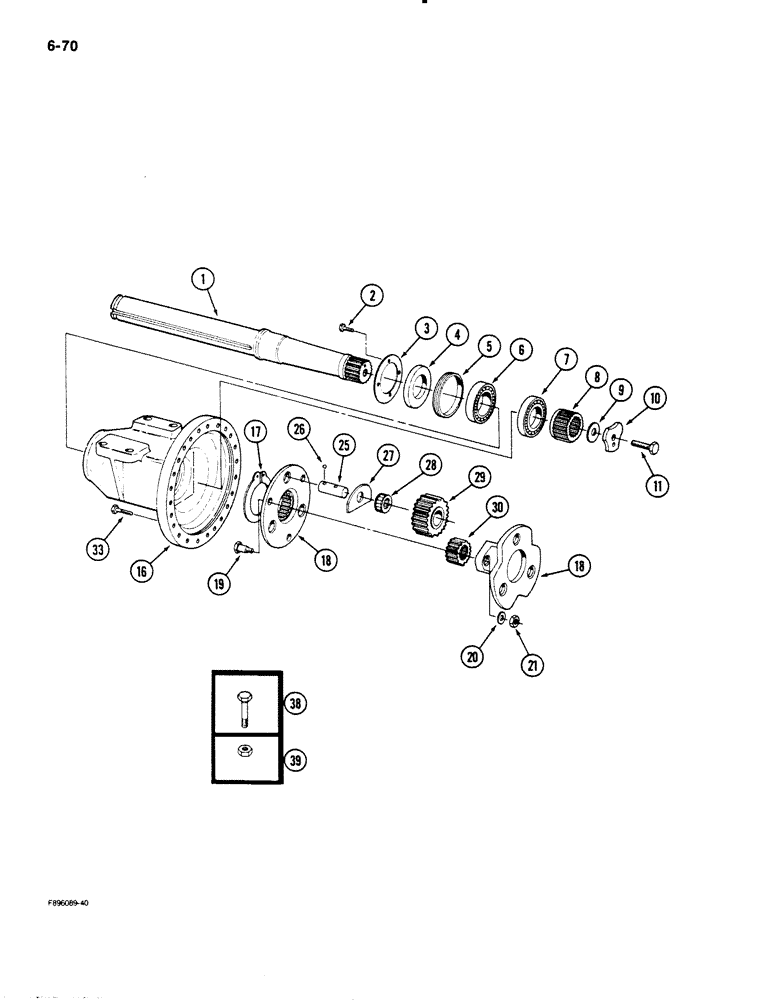

Схема запчастей Case IH 9110 - (6-70) - AXLE ASSEMBLY, AXLE SHAFT AND HOUSING, K593 BAR AXLE (06) - POWER TRAIN
39
28
18
17
2
27
4
21
3
25
11
6
19
5
26
20
16
10
8
33
38
18
1
30
7
9
29

Артикул

Название

Примечание

Количество

90-6994T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without differential lock) (Continued), Includes: Ref. 1 - 33

1шт.

90-6995T91

REAR AXLE

AXLE ASSEMBLY - rear (Without differential lock), Includes: Ref. 1 - 33

1шт.

90-6996T91

AXLE, FRONT

AXLE ASSEMBLY - front (With differential lock), Includes: Ref. 1 - 33

1шт.

90-6997T91

REAR AXLE

AXLE ASSEMBLY - rear (With differential lock), Includes: Ref. 1 - 33

1шт.

1

33-1500T1

AXLE SHAFT

SHAFT - axle

2шт.

Ref #1 - (48 1/4" )

1шт.

2

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, 6 x 12 mm, Grade 10.9

8шт.

3

33-1244T1

WEAR PLATE

PLATE - end cover

2шт.

4

33-1245T1

RING

- shoulder

2шт.

5

33-1246T1

OIL SEAL

- oil, axle shaft

2шт.

6

33-1247T1

TAPERED BEARING,105mm ID x 160mm OD x 43mm W

BEARING - taper roller

2шт.

7

33-1248T1

TAPERED BEARING,90mm ID x 160mm OD x 32.5mm W

BEARING - taper roller

2шт.

8

33-1249T1

PINION

GEAR - pinion drive

2шт.

9

33-1250T1

SHIM

- bearing, 0.10 mm thick

1шт.

9

33-1251T1

SHIM

- bearing, 0.15 mm thick

1шт.

9

33-1252T1

SHIM

- bearing, 0.25 mm thick

1шт.

9

33-1253T1

SHIM

- bearing, 0.70 mm thick

1шт.

10

33-1254T1

WASHER

- retainer, axle

2шт.

11

90-4480T1

SCREW,Hex, M22 x 1.5 x 65mm, Gr 10.9

BOLT - hex, 22 mm - 1.5 x 64 mm

2шт.

16

33-1501T1

HOUSING

- axle

2шт.

17

90-2562T1

RING, SNAP

RING - snap

2шт.

33-1502T91

CARRIER

ASSEMBLY - planetary, Includes: Ref. 18 - 21

2шт.

18

NSS

NOT SOLD SEPARAT

CARRIER - pinion

2шт.

19

16-1608

SCREW,Hex Shldr

BOLT - shouldered

6шт.

20

16-1599

WASHER

- flat

6шт.

21

16-1598

NUT

- hex, 16 mm - 1.5

6шт.

25

90-4536T1

LARGE PIN

SHAFT - pinion gear

6шт.

26

16-1607

BALL

- steel

6шт.

27

90-2564T1

LARGE PLATE

PLATE - thrust

12шт.

28

1-8340

BEARING, NEEDLE

BEARING - needle roller (2 per gear)

12шт.

29

33-1503T1

PINION

GEAR - pinion (37 Tooth)

6шт.

Ref #29 - This gear is 35 tooth, 6" O.D. 2.6" I.D. 2.38" Wide 05/02/96

1шт.

30

33-1504T1

GEAR

- sun (20 Tooth)

2шт.

Ref #30 - Replaced by 33-1504T2 and 90-7328T1 Snap Ring

1шт.

33

33-1505T1

CAPSCREW,M14 x 1.5 x 120mm

BOLT - hex, 14 x 120 mm

24шт.

33

33-1513T1

CAPSCREW,M14 x 1.5 x 100mm

BOLT - hex, 14 x 110 mm

24шт.

38

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

- hex, 1 NC x 3-1/2 inch, Grade 8

16шт.

39

131-1221

LOCK NUT,1"-8, GC

NUT - hex lock, 1 inch NC

16шт.
