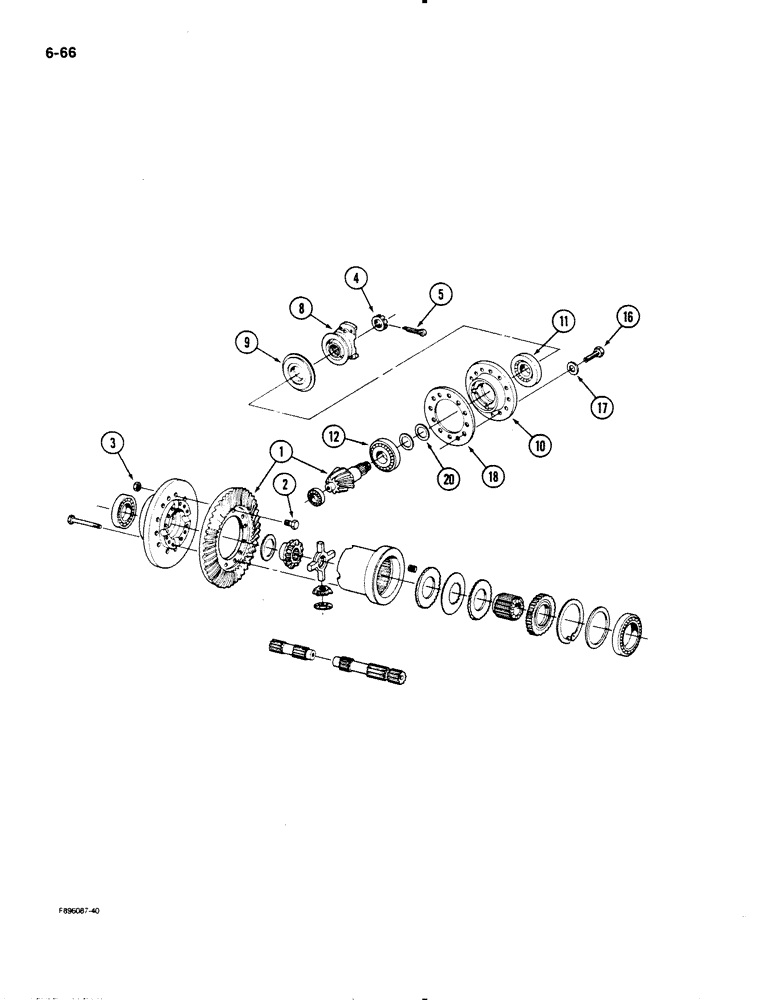

Запчасти Case IH 9110 (6-66) - AXLE ASSEMBLY, DIFFERENTIAL, K593 BAR AXLE (06) - POWER TRAIN

90-6994T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without differential lock), Includes: Ref. 1 - 20 and Ref. 22 - 49 on Fig. 6-68

1шт.

90-6995T91

REAR AXLE

AXLE ASSEMBLY - rear (Without differential lock), Includes: Ref. 1 - 20 and Ref. 22 - 49 on Fig. 6-68

1шт.

90-6996T91

AXLE, FRONT

AXLE ASSEMBLY - front (With differential lock), Includes: Ref. 1 - 20 and Ref. 22 - 49 on Fig. 6-68

1шт.

90-6997T91

REAR AXLE

AXLE ASSEMBLY - rear (With differential lock), Includes: Ref. 1 - 20 and Ref. 22 - 49 on Fig. 6-68

1шт.

1

33-1488T91

PINION

GEAR SET - ring and pinnion, front (With and without differential lock), Includes: Ref. 2 - 5

1шт.

1

33-1487T91

PINION

GEAR SET - ring and pinnion, rear (With and without differential lock), Includes: Ref. 2 - 5

1шт.

2

33-1490T1

CAPSCREW,M16 x 1.5 x 54mm

BOLT - hex, 16 mm - 1.5 x 54 mm

12шт.

3

33-1489T1

NUT

- hex lock, 16 mm - 1.5

12шт.

4

16-1589

NUT

NUT - flanged castle, 42 mm - 1.5

1шт.

5

16-1590

COTTER PIN,M6.3 x 63

PIN - cotter, 6.3 x 83 mm

1шт.

8

33-1486T1

FLANGE

YOKE - input

1шт.

9

33-1178T1

OIL SEAL

- oil, input yoke

1шт.

10

33-1183T91

CAGE ASSY.

HOUSING ASSEMBLY - bearing, Includes: Ref. 11 and 12

1шт.

11

33-1179T1

TAPERED BEARING

BEARING - taper roller

1шт.

12

33-1216T1

TAPERED BEARING

BEARING - taper roller

1шт.

16

33-1180T1

SCREW

BOLT - hex, 14 mm - 1.5 x 35 mm, Grade 10.9

12шт.

17

33-1182T1

LOCK WASHER

NUT - hex lock, 14 mm

12шт.

18

33-1184T1

SHIM

- bearing housing, 0.10 mm thick

1шт.

18

33-1185T1

SHIM

- bearing housing, 0.15 mm thick

1шт.

18

33-1186T1

SHIM

- bearing housing, 0.25 mm thick

1шт.

18

33-1187T1

SHIM

- bearing housing, 0.70 mm thick

1шт.

20

33-1188T1

SPACER

- bearing, 6.90 mm thick

1шт.

20

33-1189T1

SPACER

- bearing, 7.00 mm thick

1шт.

20

33-1190T1

SPACER

- bearing, 7.02 mm thick

1шт.

20

33-1191T1

SPACER

- bearing, 7.04 mm thick

1шт.

20

33-1192T1

SPACER

- bearing, 7.06 mm thick

1шт.

20

33-1193T1

SPACER

- bearing, 7.08 mm thick

1шт.

20

33-1194T1

SPACER

- bearing, 7.10 mm thick

1шт.

20

33-1195T1

SPACER

- bearing, 7.20 mm thick

1шт.

20

33-1196T1

SPACER

- bearing, 7.32 mm thick

1шт.

20

33-1197T1

SPACER

- bearing, 7.44 mm thick

1шт.

20

33-1198T1

SPACER

- bearing, 7.56 mm thick

1шт.

20

33-1199T1

SPACER

- bearing, 7.68 mm thick

1шт.

20

33-1200T1

SPACER

- bearing, 7.80 mm thick

1шт.

20

33-1201T1

SPACER

- bearing, 7.92 mm thick

1шт.

70-3126T1

WEAR PAD

axle, Model: 9110 and 9130

1шт.
