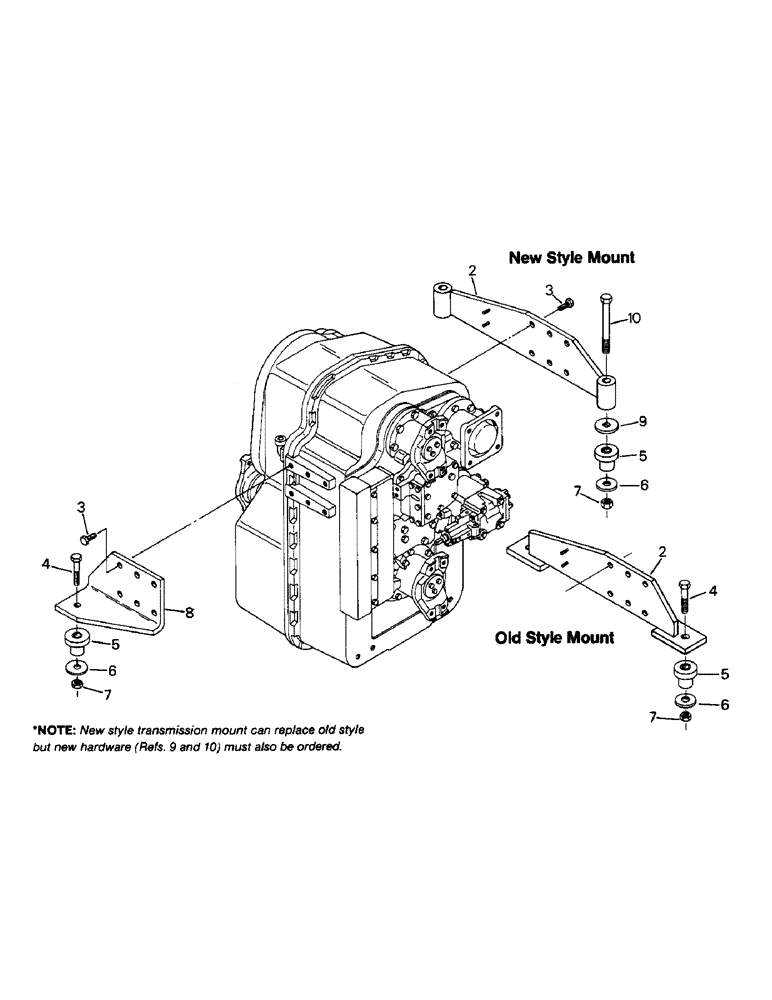

Запчасти Case IH 9110 (04-66) - TRANSMISSION MOUNTING (04) - Drive Train

1

90-6531T91

KIT

TRANSMISSION ASSEMBLY (See Fig., Serial Range: 4-66-4-81)

1шт.

2

90-6898T1

ANCHOR

MOUNT - transmission (90-6528T1)

1шт.

3

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 UNC x 1-1/2 G-5

12шт.

4

19-769

BOLT,Hex, 3/4" - 10 x 4", Gr 5

CAPSCREW, 3/4 UNC x 4 G-5 (Quantity 3 with old style mount)

1шт.

5

47-4172

SHOCK ABSORBER

MOUNT - rubber, isolator

3шт.

6

19-5781

WASHER

- flat, 3/4 x 2-3/4 x 3/16 thk

3шт.

7

19-85

LOCK NUT

- lock, 3/4 UNC G-B

3шт.

8

90-6527T1

ANCHOR

MOUNT - transmission

1шт.

9

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, 3/4 x 3-2/3 x 3/16 thk (New style mount only)

2шт.

10

19-396

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

CAPSCREW, 3/4 UNC x 6-1/2 G-5 (New style mount only)

2шт.
