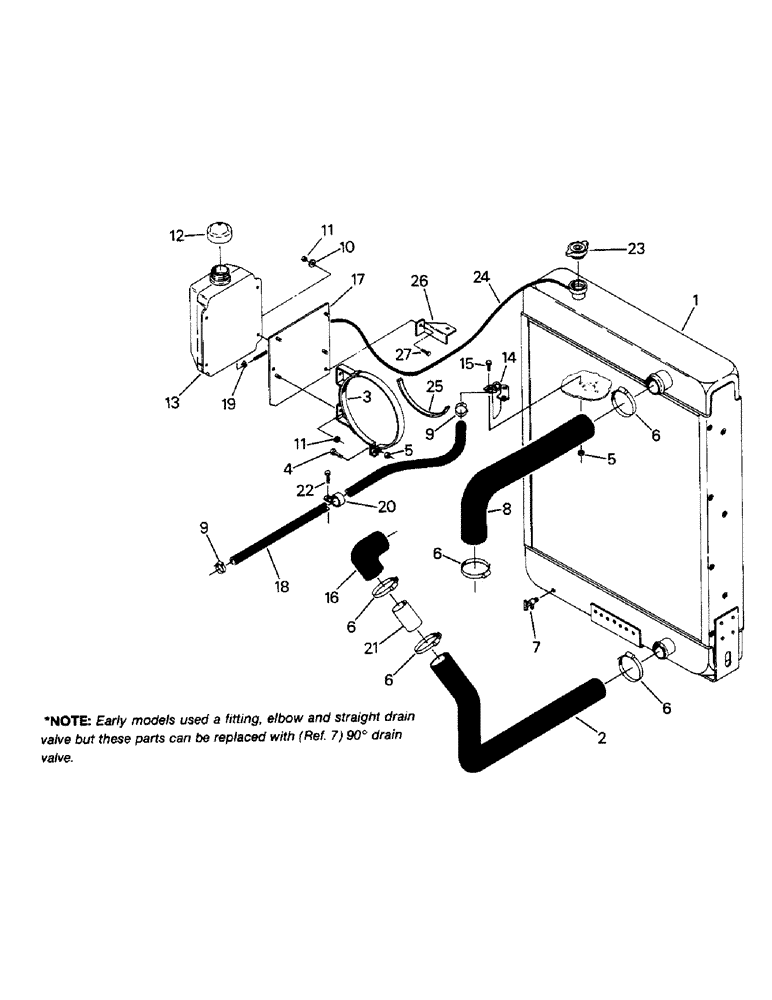

Запчасти Case IH 9110 (04-65) - RADIATOR AND HOSES (04) - Drive Train

1

90-6952T91

RADIATOR

- cooling (90-6623T91) (Includes refs. 23 and 24)

1шт.

2

31-2482

RADIATOR HOSE,2.00" ID x 17.82"

- Lower 2.00" ID x 17.82"

1шт.

3

90-6241T1

CLAMP

- mounting (Includes refs. 4 and 5)

2шт.

4

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

CAPSCREW, 5/16 UNC x 1-3/4 G-5

2шт.

5

19-508

LOCK NUT

- lock, 5/16 UNC G-B

5шт.

6

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP - hose, 2 x 3 inch

5шт.

7

31-159

COCK, DRAIN

VALVE - radiator drain, 1/4 NPT

1шт.

Early models used a fitting, elbow and straight drain valve but these parts can be replaces with (Ref. 7) 90° drain valve.

1шт.

8

31-2483

RADIATOR HOSE,2.25" ID x 14.85"

- Upper 2.25" ID x 14.85"

1шт.

9

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, 1 x 2 inch

2шт.

10

19-223

WASHER,1/4"

- flat, 1/4

4шт.

11

19-76

NUT,1/4"-20, G5

- 1/4 UNC G-B

8шт.

12

60-4241T1

FILLER CAP

CAP - vented, overflow tank

1шт.

13

90-6320T1

TANK

- overflow, radiator

1шт.

14

60-4550T1

TUBE,1.77, 1.77" Length

- A/C aspirator

1шт.

15

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

3шт.

16

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

- Elbow, Water (33-1161T1) 50.08 mm ID, 60.08 mm ID x 39.70 mm

1шт.

17

90-6272T2

BRACKET

- tank mounting

1шт.

18

31-1508

HOSE,1.00" ID x 51.75"

A/C Aspirator 1.00" ID x 51.75"

1шт.

19

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose, 1/4 x 5/8

1шт.

20

32-343

MOUNTING CLIP

CLAMP - hose (31-1348)

2шт.

21

90-6575T2

TUBE,2 mm OD x 3 mm L

- hose connector

1шт.

22

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 UNC x 1-1/2 G-5

1шт.

23

90-6633T1

CAP

- radiator

1шт.

24

31-1260

HOSE,0.25" ID x 57.00"

Overflow 0.25" ID x 57.00"

1шт.

25

90-6834T1

FOAM

2шт.

26

90-6974T1

BRACKET

- support

1шт.

27

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

1шт.
