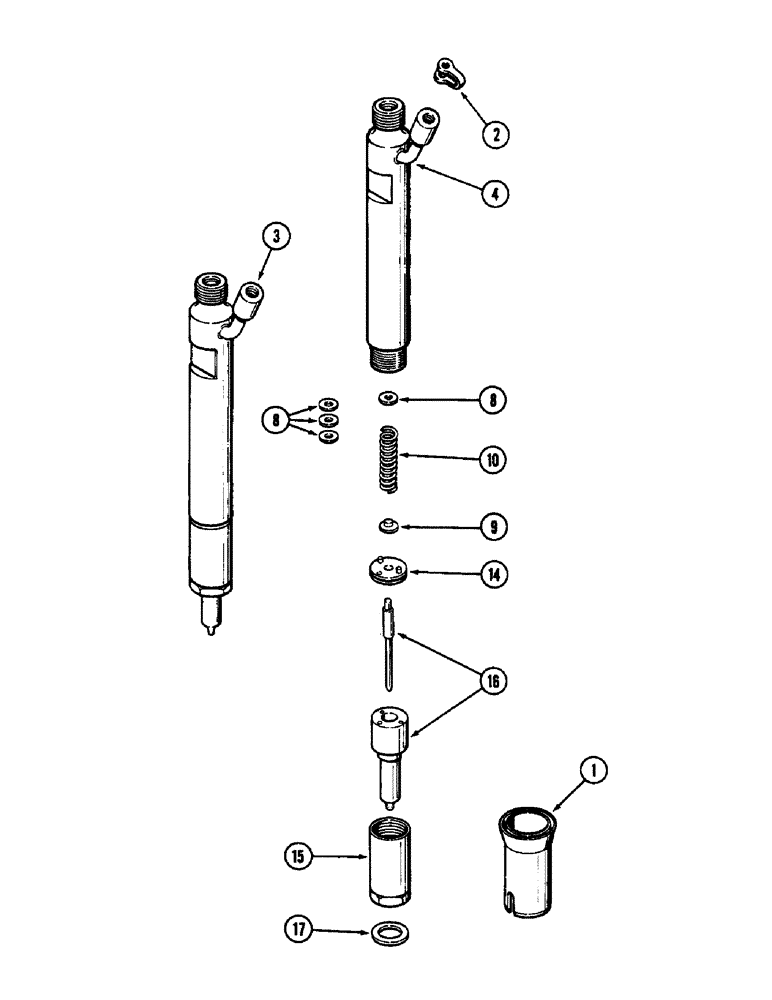

Запчасти Case IH 9110 (04-52) - FUEL INJECTION NOZZLE, 6TA-830 ENGINE, SERIAL NUMBER 17900567 AND AFTER (04) - Drive Train

A77622

NOZZLE INJECTION

NOZZLE KIT - injector, Includes: Ref. 1 - 17

6шт.

JR908507

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

JC908507

CORE-FUEL INJECTOR

Return Part Number

6шт.

1

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - seal, injector

1шт.

2

J903380

SEAL

SEAL - connector

1шт.

3

NSS

NOT SOLD SEPARAT

INJECTOR ASSEMBLY - fuel (Order A77622), Includes: Ref. 4 - 16

1шт.

Whenever a nozzle is removed from the cylinder head, J906659 gasket must be replaced before nozzle is installed in cylinder head.

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

A48186

KIT

SHIM KIT - injector, opening pressure, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.00 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.04 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.08 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.10 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.14 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.18 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.20 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.24 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.28 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.30 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.34 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.38 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.40 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.44 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.48 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.50 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.54 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.58 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.60 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.64 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.68 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.70 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.74 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.78 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.80 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.84 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.88 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.90 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.94 MM (5 in kit)

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.98 MM (5 in kit)

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - nozzle pressure spring

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - nozzle pressure

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE STOP ASSEMBLY - nozzle

1шт.

15

NSS

NOT SOLD SEPARAT

CAP NUT - nozzle end

1шт.

16

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY - nozzle injector

1шт.

17

J906659

SEAL

GASKET - nozzle

6шт.

Whenever a nozzle is removed from the cylinder head, J906659 gasket must be replaced before nozzle is installed in cylinder head.

1шт.
