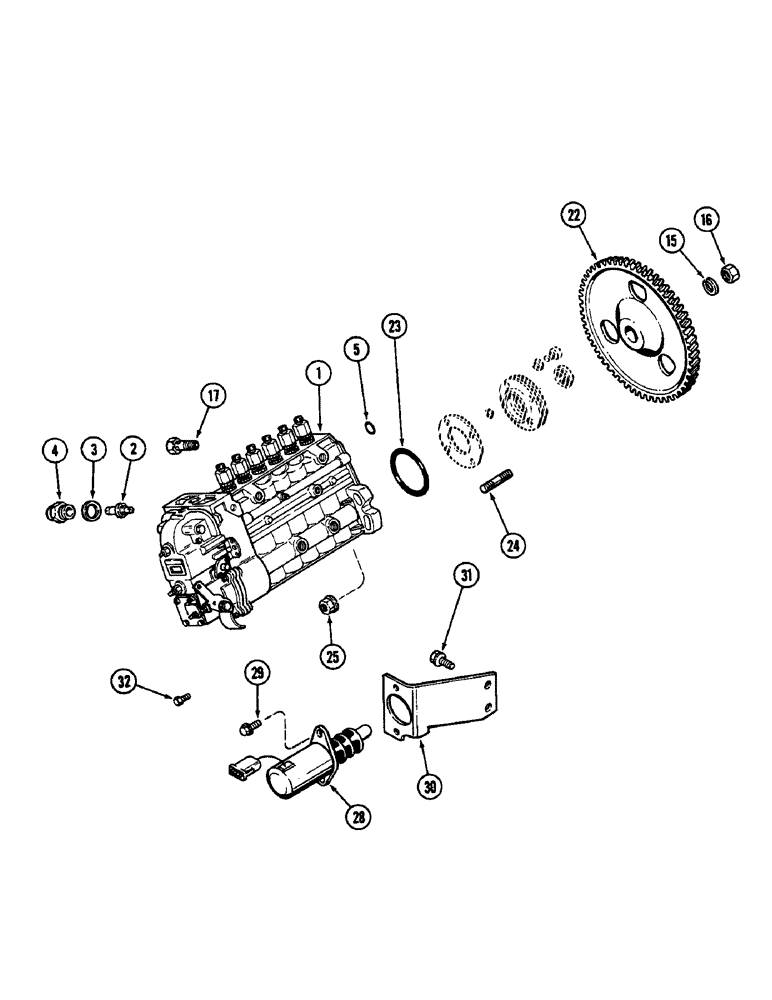

Запчасти Case IH 9110 (04-48) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, SERIAL NUMBER 17900567 AND AFTER (04) - Drive Train

JR911540

PUMP

ASSEMBLY - injection, remanufactured (North American only), Includes: Ref. 2 - 17

1шт.

JC911540

CORE-INJECTION PUMP

RETURN NUMBER - injection pump (Use this part number to return pump core for credit), Includes: Ref. 2 - 17

1шт.

1

J911540

PUMP, FUEL INJECTION

PUMP ASSEMBLY - injection, fuel (New), Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - timing

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - plug

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - timing

1шт.

5

J910501

O-RING

- port, oil

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - banjo

1шт.

22

J912614

GEAR

- pump, fuel

1шт.

23

J910501

O-RING

- sealing

1шт.

24

J907978

STUD

- mounting, pump

4шт.

25

J902662

FLANGE NUT

- hex flange, M10

4шт.

28

J914093

SOLENOID

- shut off, fuel (12 volt)

1шт.

J906649

NUT

- crown

1шт.

29

J902261

BOLT,Hex Flg

- hex flange, M6 x 16 MM

2шт.

30

J913297

BRACKET

- mounting, solenoid

1шт.

31

J903990

BOLT,Hex Flg, M10 x 20, 10.9

- hex flange, M10 x 20 MM

2шт.

32

J910768

BOLT

- hex, ground wire

1шт.
