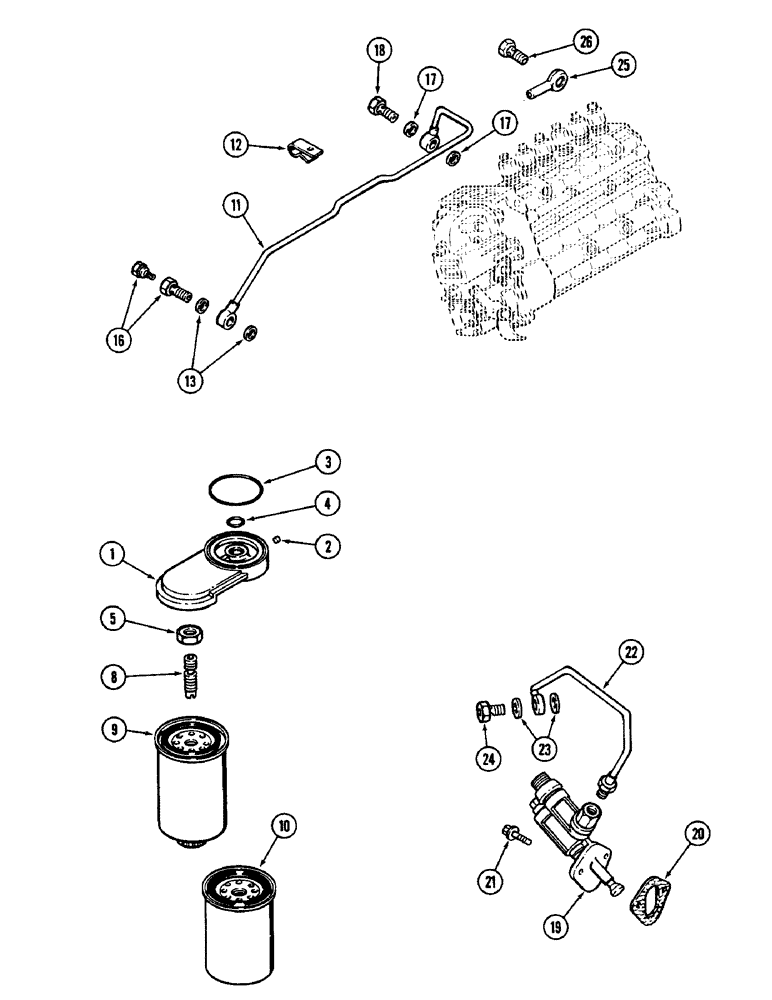

Запчасти Case IH 9110 (04-44) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, SERIAL NUMBER 17900567 AND AFTER (04) - Drive Train

1

J904362

HEAD

ASSEMBLY - filter, fuel, Includes: Ref. 2

1шт.

2

A77432

PLUG

- expansion, 0.26 MM OD

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, filter head, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, adapter, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, M16

1шт.

8

J903845

BANJO BOLT

ADAPTER - filter

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, primary

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - fuel, secondary

1шт.

11

J910512

FUEL TUBE

TUBE ASSEMBLY - supply, fuel

1шт.

12

A77436

CLIP

- tube, P style

1шт.

13

J903037

PACKING RING

WASHER - sealing

2шт.

16

J905860

BANJO BOLT

ASSEMBLY - connector

1шт.

17

J907542

WASHER

- sealing

2шт.

18

J907541

BANJO BOLT

SCREW - connector, banjo

1шт.

19

J906795

PUMP

ASSEMBLY - transfer, fuel

1шт.

20

J904044

GASKET

- mounting, pump

1шт.

21

J900631

FLANGE BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

BOLT - hex flange, M8 x 25 MM

2шт.

22

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE ASSEMBLY - supply

1шт.

23

J903037

PACKING RING

WASHER - sealing

2шт.

24

J903035

BANJO BOLT

SCREW - banjo, M12 x 24

1шт.

25

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE - banjo restrictor

1шт.
