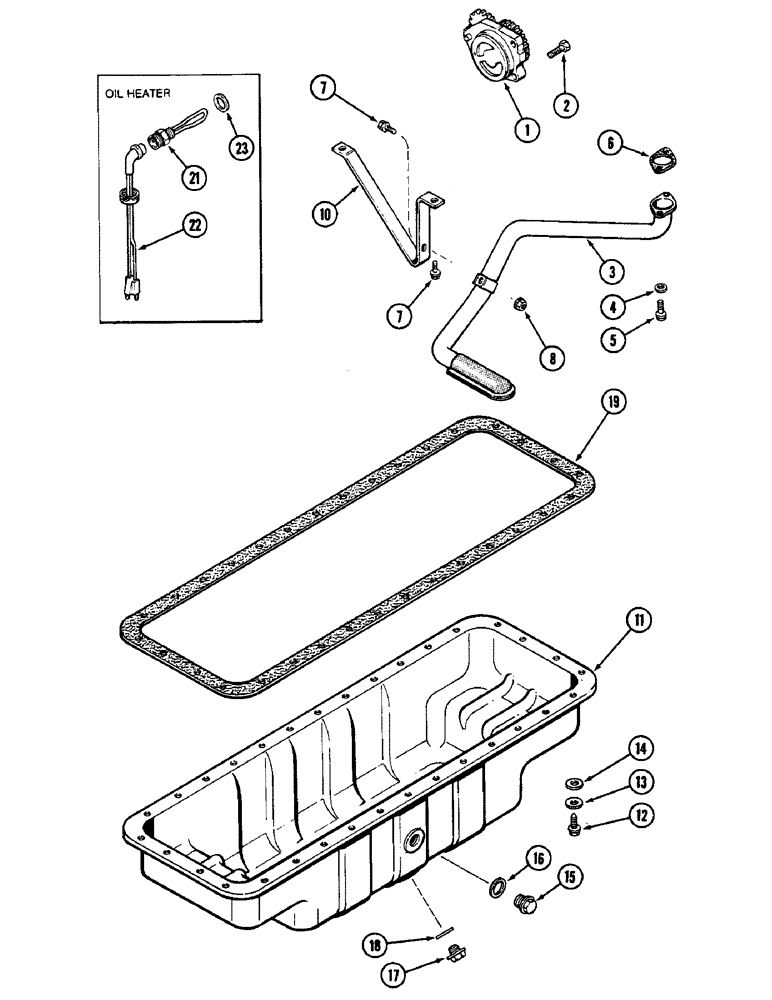

Запчасти Case IH 9110 (04-34) - OIL PUMP AND OIL PAN, 6T-830 ENGINE (04) - Drive Train

1

J910066

ENGINE OIL PUMP

PUMP ASSEMBLY - oil engine, new

1шт.

JR910066

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, remanufactured (North America only)

1шт.

JC910066

PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

3

J911245

TUBE

TUBE AND SCREEN - suction, oil

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

J900628

BOLT,Hex Flg, M6 x 30, 8.8

SCREW - hex flange, M6 x 30 MM

2шт.

6

J906202

GASKET

GASKET - mounting, oil tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77583 also order J902425 washer

1шт.

7

J900627

BOLT,Hex Flg, M6 x 14mm, Cl 8.8

SCREW - hex flange, M6 x 14 MM

3шт.

8

J906216

FLANGE NUT

NUT - hex flange, M6

1шт.

10

J910785

BRACE

BRACE - tube, suction

1шт.

11

J908538

CUP

PAN - oil, engine

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT, , Mounting Hex, Flg Hd, M8 x 25, Spcl

32шт.

13

J910266

LOCK WASHER

WASHER - spring, belleville

32шт.

14

J908316

WASHER

WASHER - flat, M9 x 16 x 1

32шт.

15

J904386

PLUG

PLUG - heater hole, oil

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing

1шт.

17

J900215

PLUG

PLUG - drain, pan

1шт.

18

J900216

PACKING RING

WASHER - sealing

1шт.

Part of Oil Pan Gasket Kit, P/N A77583 also order J902425 washer

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - pan, oil

1шт.

Part of Oil Pan Gasket Kit, P/N A77583 also order J902425 washer

1шт.

A77583

GASKET

GASKET KIT - oil pan, Includes Refs. 6, 18 and 19, also order J902425 washer

1шт.

20

A77580

SERVICE KIT

HEATER KIT - oil pan, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt

1шт.

22

J905113

CABLE

CABLE - heater

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing

1шт.
