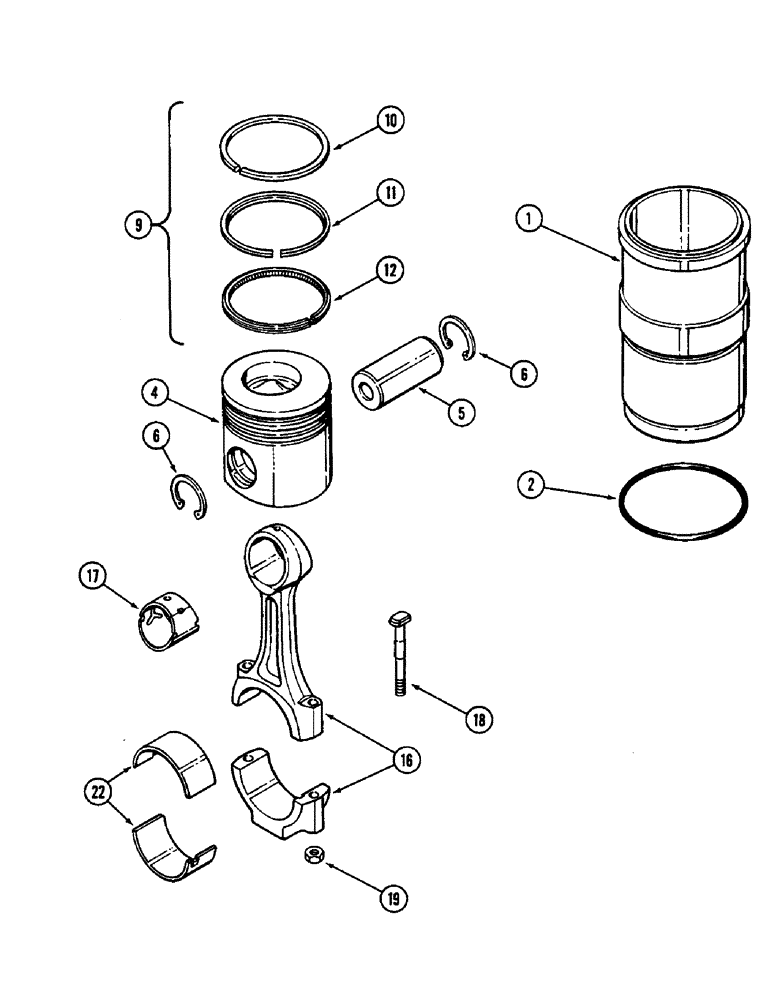

Запчасти Case IH 9110 (04-32) - PISTONS AND SLEEVES, 6T-830 ENGINE (04) - Drive Train

A77598

CYLINDER

PISTON AND SLEEVE KIT - engine, Includes: Ref. 1 - 12

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77599

KIT

PISTON KIT - engine (Standard), Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

5

J901597

PIN

- piston

1шт.

6

J901996

RING

- retaining

2шт.

9

A77562

PISTON RING SET

RING KIT - piston, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil

1шт.

16

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting, Includes: Ref. 17 - 19

6шт.

84487529R

REMAN-CONNECTING ROD

9110 PRIOR TO S/N JCB0003600 (12/86 - 6/89), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

16

JR901383

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD - N.A. Only

6шт.

16

JC901383

CORE-ROD CONNECTING

Return No, CONNECTING ROD - N.A. Only

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - rod, connecting

1шт.

18

J901380

BOLT

- rod, bearing cap, connecting

2шт.

19

J901381

SPECIAL NUT

- hex, rod bolt, connecting

2шт.

22

A77563

BEARING SET

BEARING KIT - rod (Set) (Upper and lower standard), connecting

6шт.

22

A77564

BEARING SET

BEARING KIT - rod (Set) (Upper and lower 0.25 MM oversize), connecting

6шт.

22

A77566

BEARING SET

BEARING KIT - rod (Set) (Upper and lower 0.75 MM oversize), connecting

6шт.

22

A77567

BEARING SET

BEARING KIT - rod (Set) (Upper and lower 1.0 MM oversize), connecting

1шт.
