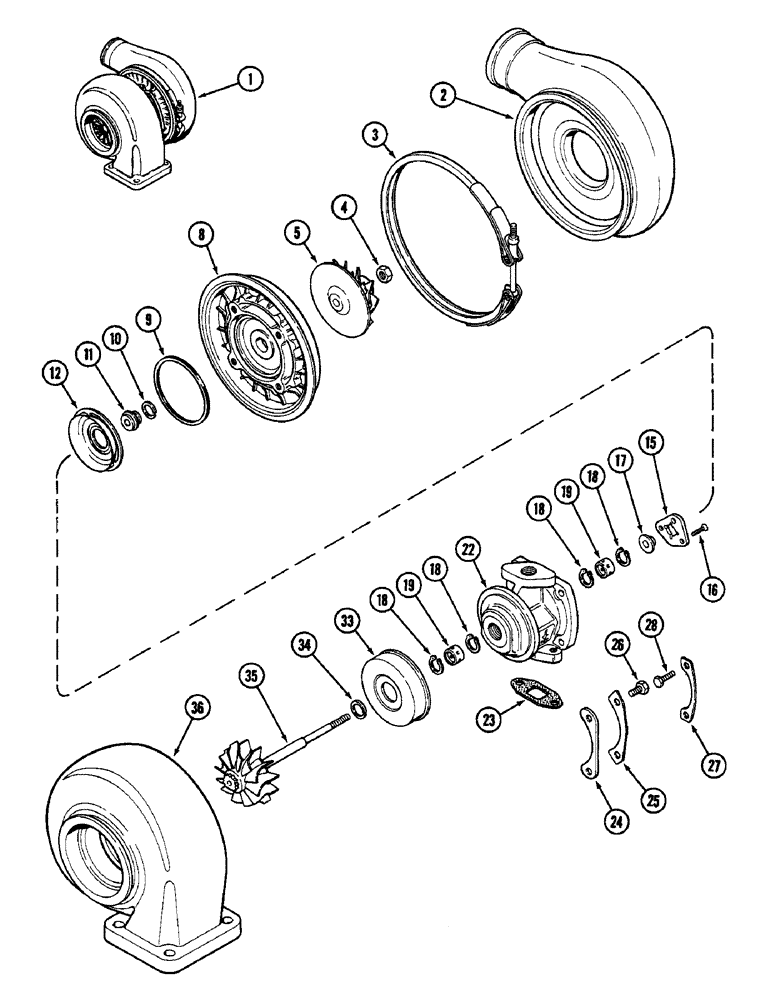

Запчасти Case IH 9110 (04-10) - TURBOCHARGER, 6T-830 ENGINE (04) - Drive Train

1

J909308

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, Includes: Ref. 2 - 35

1шт.

1

JR802303

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR909308

TURBOCHARGER

TURBOCHARGER ASSEMBLY - remanufactured (North America only), Includes: Ref. 2 - 35

1шт.

1

JC909308

TURBOCHARGER

RETURN NUMBER - (Use this part number to return turbocharger core for credit), Includes: Ref. 2 - 35

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

11

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - flat head slotted

3шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

17

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

18

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - shaft, impeller

2шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - oil drain

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - clamp, turbine housing

2шт.

25

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT - hex, retainer

4шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

28

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex lock

4шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

33

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

34

NSS

NOT SOLD SEPARAT

SEAL - ring, turbine

1шт.

Part of Turbocharger Service Kit, P/N J904772

1шт.

35

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

J904772

PACKAGE, REPAIR

SERVICE KIT - turbocharger, Includes Refs. 4, 15, 16, 18, 19, 25, 26, 28 and 34

1шт.
