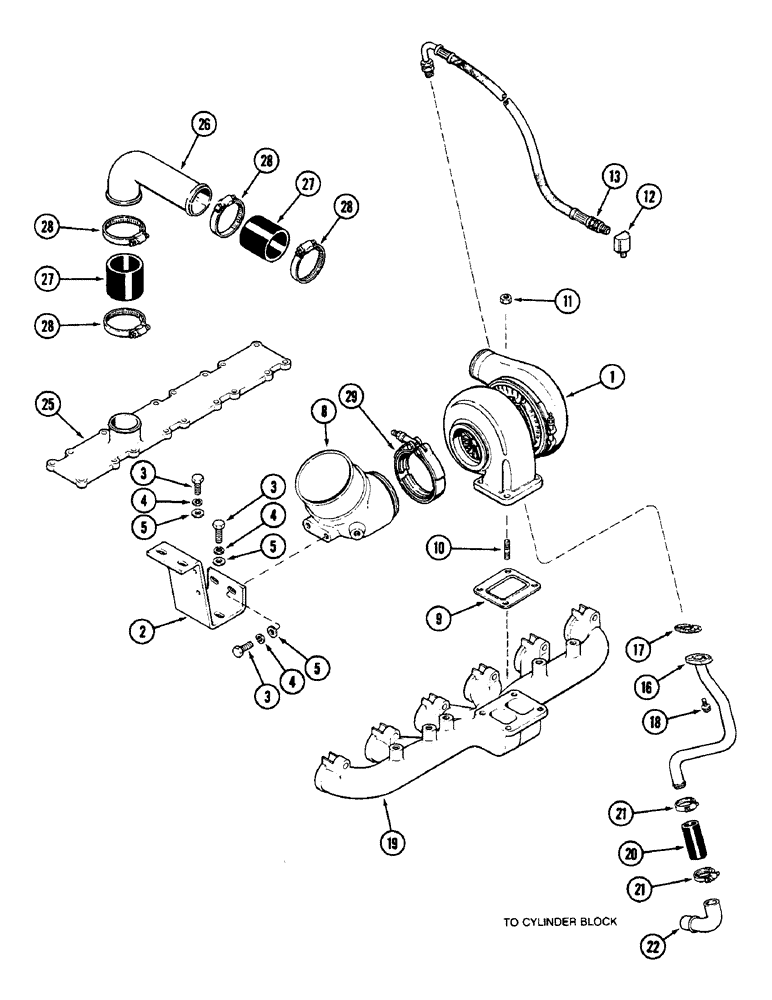

Запчасти Case IH 9110 (04-08) - TURBOCHARGER SYSTEM, 6T-830 ENGINE, SERIAL NUMBER 17900567 AND AFTER (04) - Drive Train

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Fig. 4-10)

1шт.

2

1289168C1

BRACKET

- elbow

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

3

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, M10

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

(13/32") M10 x 20 x 2

4шт.

8

A184232

ELBOW UNION

ELBOW - turbocharger

1шт.

9

J907973

GASKET

- mounting, turbocharger

1шт.

10

J905417

STUD

- mounting, turbocharger, M10 x 1.25 x 1.50 MM

4шт.

11

J901961

NUT

- hex, stud, M10 x 1.25

4шт.

12

A77588

ELBOW

- adapter, 90 degree

1шт.

13

J909545

HOSE

Supply, Oil

1шт.

16

J906739

TUBE

- drain, oil

1шт.

17

J901805

GASKET

- mounting, drain tube

1шт.

18

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

19

REF

INSTRUCTION

MANIFOLD - exhaust (See Fig. 4-14)

1шт.

20

J903745

LARGE HOSE

HOSE - tube drain

1шт.

21

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.

22

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain

1шт.

23

REF

INSTRUCTION

MANIFOLD - cover, intake (See Fig. 4-14)

1шт.

26

J906738

TUBE,63.5 mm OD x 207.8, 91.9 mm L

- air, cross over

1шт.

27

J904422

HOSE

- tube, air

2шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

29

A170807

CLAMP,102mm ID

elbow

1шт.
