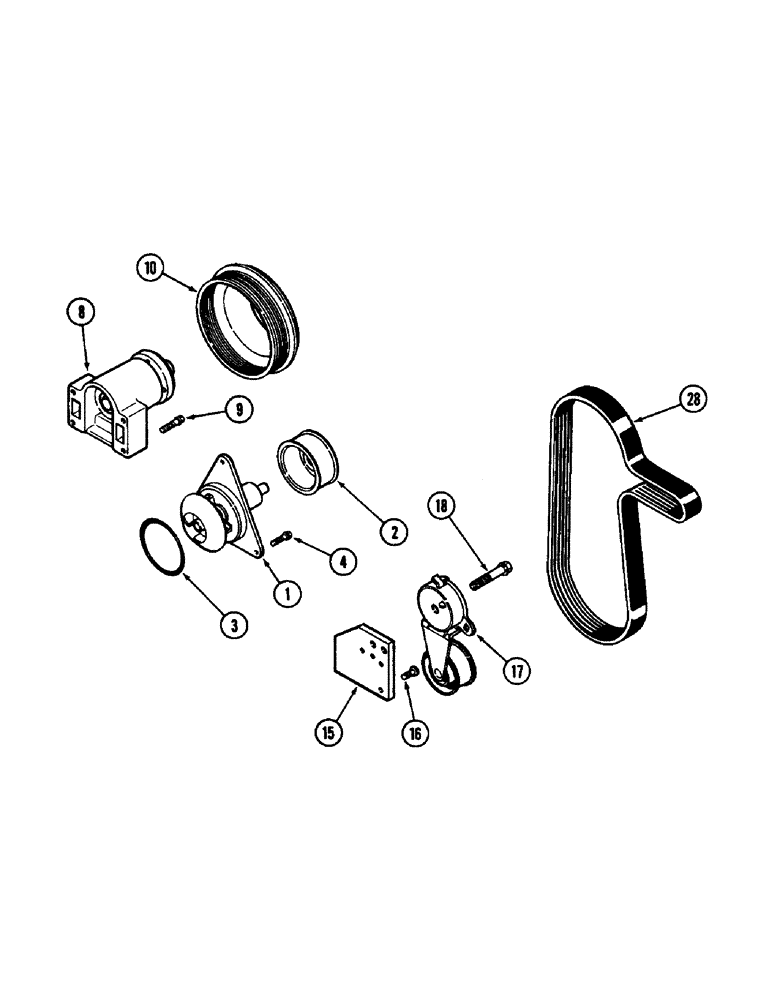

Запчасти Case IH 9110 (04-02) - WATER PUMP AND FAN, 6T-830 ENGINE (04) - Drive Train

AR77579

PUMP, WATER

PUMP - water, remanufactured (North American only)

1шт.

J800976R

REMAN-WATER PUMP

9110 6T-830 ENGINE (PRIOR TO S/N JCB0003600) (12/86-6/89), Reman for New P/N AR77579

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77579

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77579

PUMP, WATER

PUMP KIT - water, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

9110 6T-830 ENGINE (PRIOR TO S/N JCB0003600) (12/86-6/89), Reman for New P/N A77579

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump (Order A77579)

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

4

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flange, M8 x 25 MM

3шт.

8

J910738

SUPPORT ASSY.

SUPPORT ASSEMBLY - fan

1шт.

9

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

SCREW - hex flange head, 50 MM long

4шт.

10

J908447

PULLEY

- fan

1шт.

15

J905936

SUPPORT

BRACKET - mounting, tensioner

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Mounting, Bracket Torx Soc, M8 x 1.25 x 25

2шт.

17

J911315

TIGHTENER

TENSIONER ASSEMBLY - belt

1шт.

18

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

SCREW - mounting, tensioner 61 MM long

1шт.

28

J905866

V-BELT,3.56 mm W x 1524.00 mm L, 8 Ribs

Fan 3.56 mm W x 1524.00 mm L, 8 Ribs

1шт.
