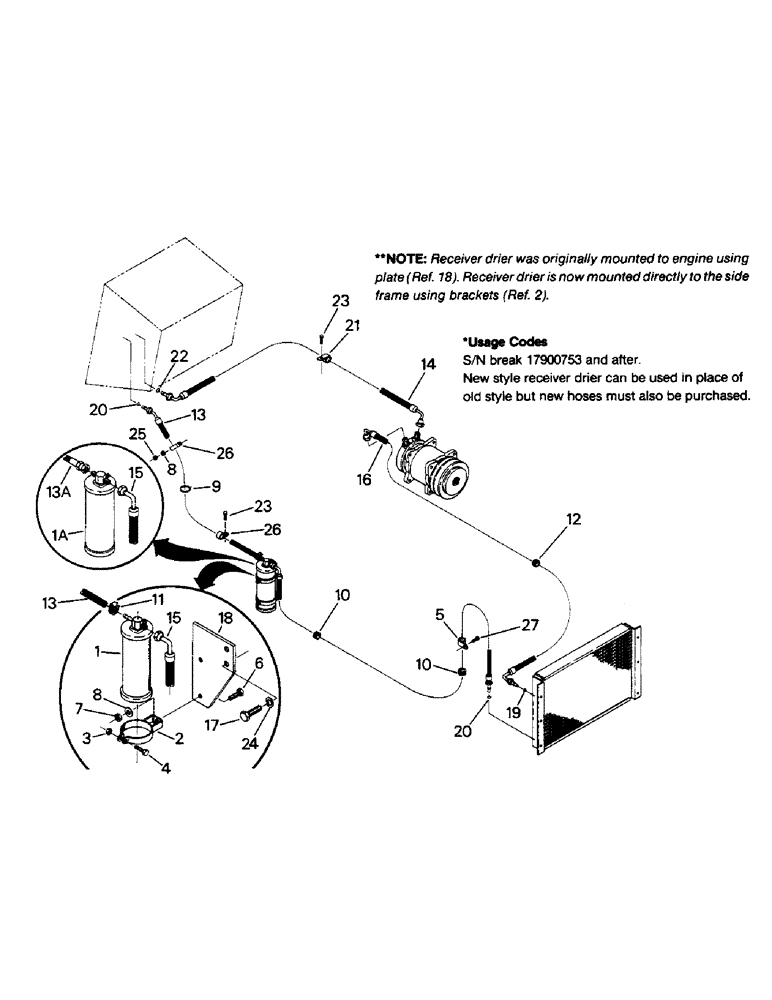

Запчасти Case IH 9110 (03-10) - AIR CONDITIONER PLUMBING (03) - Climate Control

1

1-7778T1

AIR CONDITIONER

RECEIVER-DRIER (1-7778)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

Usage Codes, S/N break 17900753 and after. New style receiver drier can be used in place of old style but new hoses must also be purchased.

1шт.

1a

60-5818T1

SUPPORT

RECEIVER-DRIER

1шт.

Usage Codes, S/N break 17900753 and after. New style receiver drier can be used in place of old style but new hoses must also be purchased.

1шт.

2

1-8563

CLAMP BRACKET

BRACKET - receiver drier mounting

2шт.

3

280129

NUT,1/4"-20

NUT - lock, 1/4 UNC G-A

2шт.

4

19-720

BOLT,1/4" - 20 x 3/4"

CAPSCREW, 1/4 UNC x 2-1/4 G-5

2шт.

5

31-1776

MOUNTING CLIP

CLAMP - hose

1шт.

6

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 UNC G-A

2шт.

8

19-106

WASHER,5/16", SAE

- flat, 5/16

4шт.

9

1-7818

CABLE

STRAP - nylon (Not shown)

1шт.

10

31-2580

GROMMET - hose protector

2шт.

11

25-285

SQUARE NUT,Sq, 5/16"-18

CLAMP - hose, 1/2 x 7/8 (Early style only)

1шт.

12

22-461

GROMMET

- hose protector

1шт.

13

31-2783

HOSE,1.00" ID x 68.00"

A/C 1.00" ID x 68.00", Start Serial: 17900753

1шт.

New style receiver drier can be used in place of old style but new hoses must also be purchased.

1шт.

13a

31-2751

HOSE,7.94mm ID x 1981.2mm L

- A/C (Later style), Start Serial: 17900753

1шт.

New style receiver drier can be used in place of old style but new hoses must also be purchased.

1шт.

14

31-2576

HOSE,15.88mm ID x 1219.2mm L

- A/C

1шт.

15

31-2575

HOSE,7.94mm ID x 2641.6mm L

- A/C

1шт.

16

31-2501

HOSE,10.41mm ID x 1549.4mm L

- A/C

1шт.

17

40-1213

CAPSCREW,Hex, M12 x 1.75 x 25mm, Gr 8.8

M12 x 1.75 x 25 MM

2шт.

Receiver drier was originally mounted to engine using plate (Ref. 18). Receiver drier is now mounted directly to the side frame using brackets (Ref. 2).

1шт.

18

90-6273T1

PLATE

- mounting

1шт.

Receiver drier was originally mounted to engine using plate (Ref. 18). Receiver drier is now mounted directly to the side frame using brackets (Ref. 2).

1шт.

19

31-1808

O-RING

O-RING

1шт.

20

31-1807

O-RING

O-RING

2шт.

21

1-2667

CLAMP

- hose

1шт.

22

31-1809

O-RING

1шт.

23

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

2шт.

24

19-119

LOCK WASHER,1/2"

1/2"

2шт.

Receiver drier was originally mounted to engine using plate (Ref. 18). Receiver drier is now mounted directly to the side frame using brackets (Ref. 2).

1шт.

25

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

26

32-302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

3шт.

27

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

2шт.
