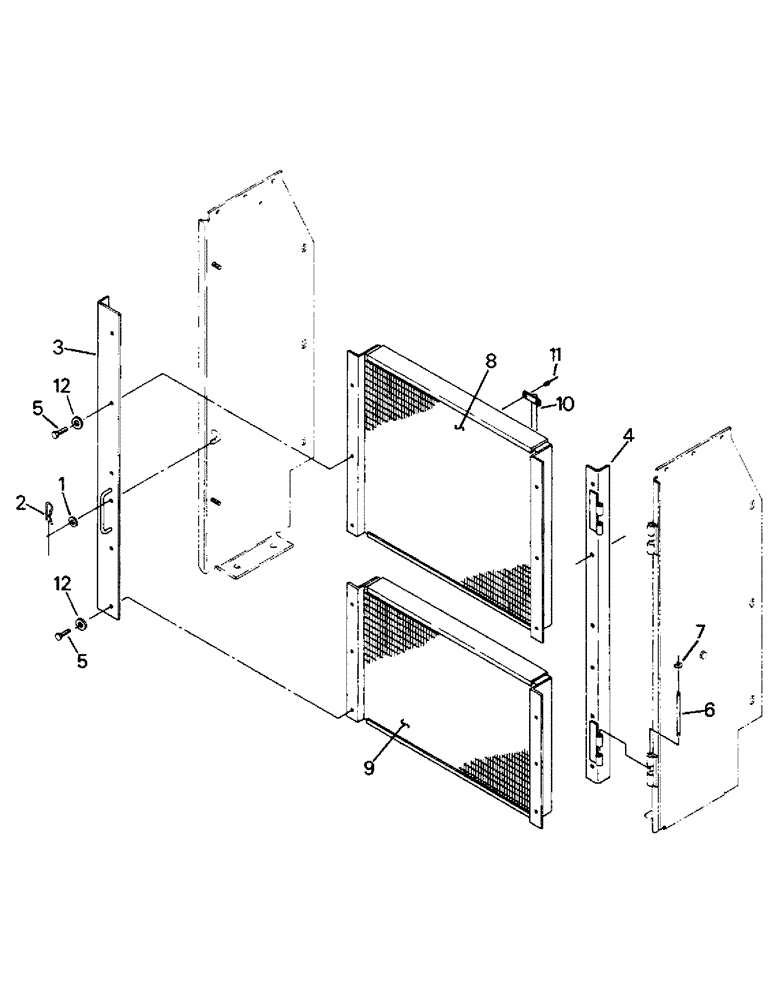

Запчасти Case IH 9110 (03-08) - OIL COOLER AND CONDENSOR MOUNTING (03) - Climate Control

1

19-107

WASHER

- flat, 3/8

1шт.

2

19-5400

PIN

- hair, 1/8

1шт.

3

90-6131T1

MOUNTING PARTS

MOUNT - latching

1шт.

4

90-6132T1

MOUNTING PARTS

MOUNT - hinged

1шт.

5

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

CAPSCREW, 5/16 UNC x 1/2 G-5

12шт.

6

70-1996T2

PIN

ROD - hinge pin

2шт.

7

70-2600T1

RING, SNAP

RING - snap, 1/4

4шт.

8

90-6127T2

COOLER, OIL

COOLER - transmission and hydraulic oil

1шт.

9

60-4815T1

CONDENSER

CONDENSOR - A/C

1шт.

10

90-6806T1

BRACE

- cooler

1шт.

11

19-6205

RIVET

- pop, 1/8 x 3/16

4шт.

12

19-700

WASHER,5/16"

- flat, 5/16

12шт.
