Запчасти Case IH 9110 (07-1) - FUEL SYSTEM (02) - FUEL SYSTEM

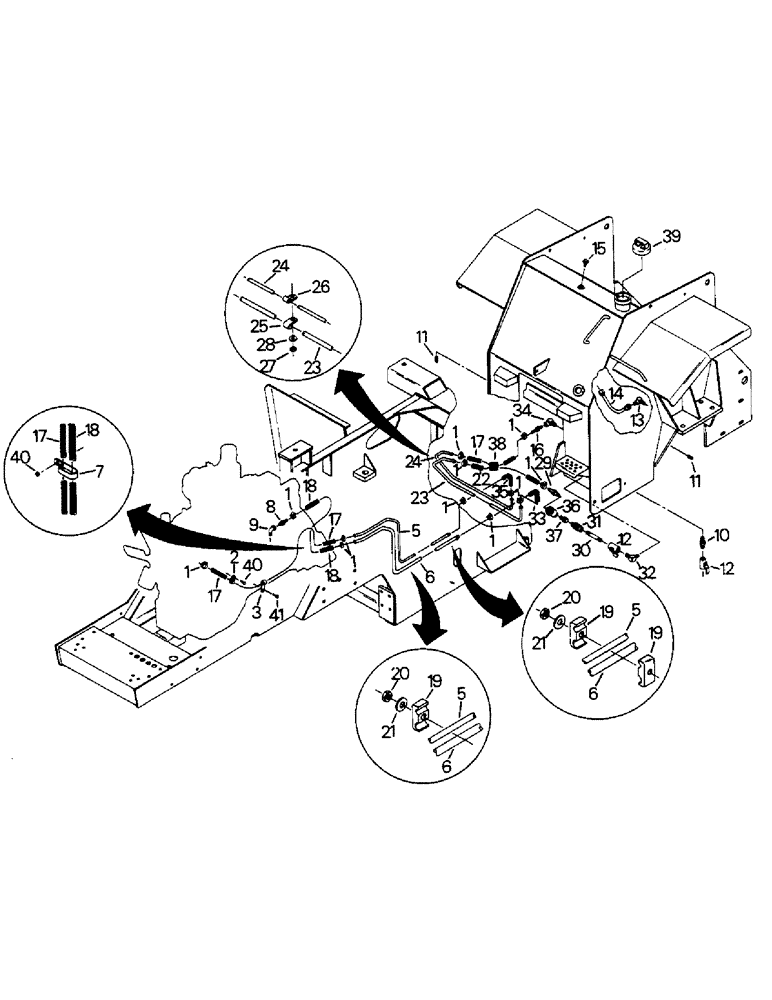

Схема запчастей Case IH 9110 - (07-1) - FUEL SYSTEM (02) - FUEL SYSTEM
29
1
17
19
17
1
26
19
5
3
23
27
8
35
6
35
18
14
18
7
25
40
23
17
6
12
31
36
18
22
5
13
11
21
1
20
1
40
34
20
9
1
33
11
1
16
10
6
5
19
17
41
12
30
24
15
28
37
1
2
1
39
21
32
24

Артикул

Название

Примечание

Количество

1

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose, 1/4 x 5/8

12шт.

2

22-635

MOUNTING CLIP

CLIP - hose

1шт.

3

22-632

CLIP

- hose

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

6шт.

5

90-6535T1

FUEL TUBE,.25" OD

TUBE - fuel return

1шт.

6

90-6534T1

TUBE,.375" OD

- fuel supply

1шт.

7

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- hose

1шт.

8

31-314

FITTING

- barbed, 1/4 NPT male x 3/8 hose

1шт.

9

31-211

ELBOW

1/4 NPT male x 1/4 NPT female

1шт.

10

31-345

FITTING

ADAPTER, 1/2 NPT male x 1/2 NPT male

1шт.

11

31-35

PLUG

- pipe, 1/2 NPT

3шт.

12

31-1267

SHUT-OFF VALVE

VALVE - shut off, 1/2 NPT female x 1/2 NPT female

2шт.

13

31-402

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

1/2 NPT male x 3/4-16 JIC 37 degree male

2шт.

14

90-6144T1

FUEL TUBE,.5" OD

TUBE - tank, fuel crossover

1шт.

15

31-1536

BREATHER

VENT - breather, 1/2 NPT male

1шт.

16

31-1186

FITTING

- barbed, 1/4 NPT male x 1/4 hose

1шт.

17

31-1183

HOSE,6.4 mm ID x 1498.60 mm

2шт.

18

32-336

HOSE

3/8 x 34 inch

1шт.

19

50-2842T1

SUPPORT

CLAMP - half

5шт.

20

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

4шт.

21

19-223

WASHER,1/4"

- flat, 1/4

4шт.

22

31-1691

FUEL HOSE

HOSE, 3/8 x 42 inch

1шт.

23

90-6669T1

FUEL TUBE,.375" OD

TUBE - fuel supply

1шт.

24

90-6688T1

FUEL TUBE,.25" OD

TUBE - fuel return

1шт.

25

22-1109

CLAMP

- tube

2шт.

26

31-1862

CLAMP

- tube

2шт.

27

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

28

19-107

WASHER

- flat, 3/8

2шт.

29

31-553

CONNECTING ROD

FITTING - barbed, 1/4 NPT female x 3/8 hose

1шт.

30

31-2736

LUBE NIPPLE

NIPPLE, pipe, 1/2 NPT x 4-1/2

1шт.

31

31-2705

ELBOW,90 Degree, 3/8"-18 Male x 1/2"-14 Female

3/8 NPT male x 1/2 NPT female

1шт.

32

31-1585

FITTING

ELBOW, 1/2 NPT male x 1/2 NPT male

1шт.

33

32-204

HOSE

3/8 x 7

1шт.

34

31-2076

ADAPTER,90 Degree, 3/8"-18 Male x 1/4"-18 Female

ELBOW, 3/8 NPT male x 1/4 NPT female

1шт.

35

31-2691

HOSE,6.4 mm ID x 228.60 mm

; Order A21561X, and Cut to Required Length 6.4 mm ID x 228.60 mm

1шт.

36

90-6693T1

FILTER

- fuel, in line

1шт.

37

31-2704

ADAPTER,1/4"-18 Male NPTF x 3/8"-18 Female NPTF

1/4 NPT male x 3/8 NPT female

1шт.

38

50-2741T1

CONDUIT

PROTECTOR - flex guard

1шт.

39

2-3679T1

FILLER CAP

CAP - fuel tank

1шт.

40

NSS

NOT SOLD SEPARAT

NUT

1шт.

41

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

CAPSCREW, M10 x 1.50 x 20 MM G-8.8

1шт.

Выбрано товаров: 41
