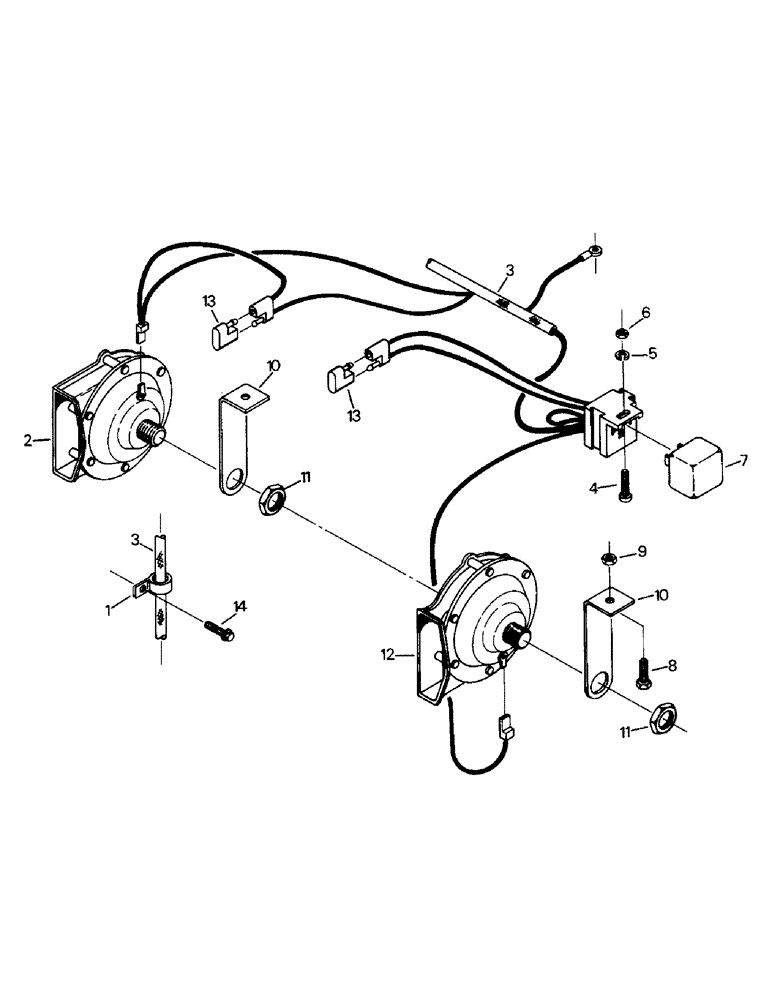

Запчасти Case IH 9110 (10-41) - HORN AND MOUNTING Options & Miscellaneous

1

22-1109

CLAMP

- harness

2шт.

2

29-1003

HORN

- electrical

1шт.

3

20-2021T1

HARNESS

- horn

1шт.

4

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

MACHINE SCREW, no. 10 UNC x 1/2

2шт.

5

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

6

19-567

NUT,#10-24

- no. 10 UNC G-A

2шт.

7

20-2133T1

RELAY

- electrical

1шт.

8

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

2шт.

9

19-508

LOCK NUT

- lock, 5/16 UNC G-B

2шт.

10

29-1004

BRACKET

- horn mounting

2шт.

11

19-1002

SPECIAL NUT

- special

2шт.

12

29-1002

HORN

- electrical

1шт.

13

22-738

DIODE

2шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, 1/4 UNC x 1/2

2шт.
