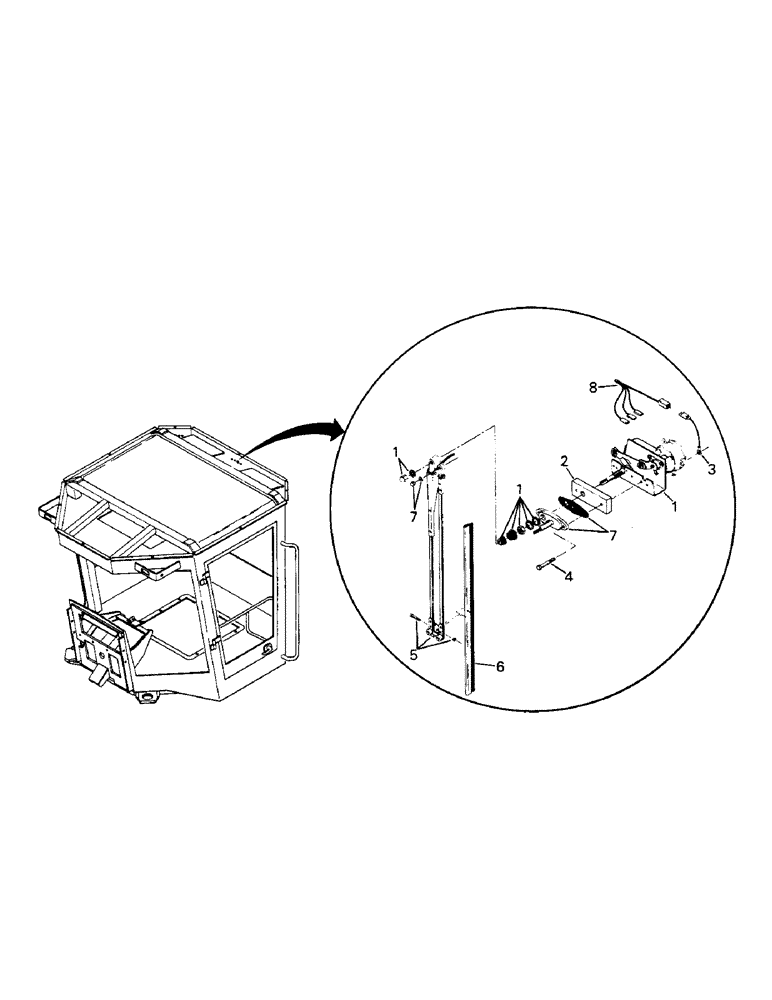

Запчасти Case IH 9110 (10-38) - REAR WIPER AND MOUNTING, PRIOR TO SERIAL NUMBER 17900707 Options & Miscellaneous

35-1610T91

KIT

- rear wiper, Includes: Ref. 1 - 9

1шт.

1

DRIVE ASSEMBLY - rear wiper (See Fig. 10-39)

1шт.

2

60-4981T1

SPACER

- wiper mounting

1шт.

3

20-1452T1

ELECTRICAL WIRE

WIRE - motor ground

1шт.

4

19-1048

CAPSCREW, 1/4 UNF x 1-1/2 G-5 Hex, 1/4"-28 x 1 1/2", G5

2шт.

5

54-313

ARM

- wiper, 20 inch

1шт.

6

54-312

HALF BLADE

BLADE - wiper, 22 inch

1шт.

7

54-311

PIVOT ASSY.

PIVOT KIT - wiper blade

1шт.

8

20-2028T1

HARNESS

- rear wiper

1шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon (Not shown)

3шт.
