Запчасти Case IH 9110 (10-36) - SIDE AND REAR WIPERS WITH WASHER, SERIAL NUMBER 17900707 AND AFTER Options & Miscellaneous

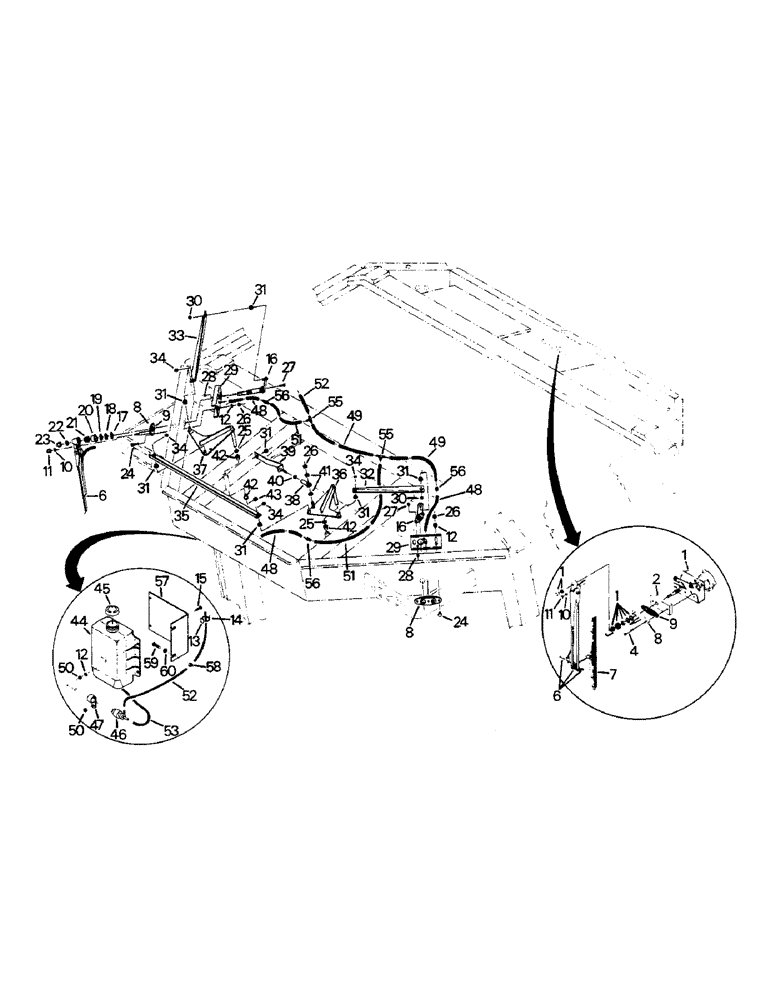

Схема запчастей Case IH 9110 - (10-36) - SIDE AND REAR WIPERS WITH WASHER, SERIAL NUMBER 17900707 AND AFTER Options & Miscellaneous
26
10
21
1
8
39
55
43
59
34
42
25
8
52
50
12
26
36
26
29
51
38
57
34
17
30
50
8
45
13
18
40
31
24
60
56
12
31
31
44
10
11
49
34
27
42
48
24
6
14
42
22
19
47
2
16
37
34
33
28
29
53
27
48
35
31
32
31
55
51
25
23
9
11
31
56
6
49
12
58
31
11
30
4
46
1
20
7
48
15
56
28
52
16

Артикул

Название

Примечание

Количество

35-1718T91

KIT

- side and rear wipers with washer, Includes: Ref. 1 - 61

1шт.

1

DRIVE ASSEMBLY - rear wiper (See Fig. 10-39)

1шт.

2

60-4981T1

SPACER

- wiper

1шт.

3

20-1452T1

ELECTRICAL WIRE

WIRE - ground (Not shown)

1шт.

4

414-424

BOLT,Hex, 1/4" - 28 x 1-1/2", Gr 5

2шт.

5

20-2502T1

HARNESS

- rear wiper (Not shown)

1шт.

6

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

3шт.

7

60-1145T91

WIPER BLADE

BLADE - wiper, 18 inch

3шт.

2-4194T1

WIPER BLADE

BLADE - refill

1шт.

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade, Includes: Ref. 8 - 11

3шт.

8

NSS

NOT SOLD SEPARAT

BODY AND SHAFT ASSEMBLY

3шт.

9

2-4190T1

GASKET

- mounting

3шт.

10

2-4191T1

WASHER

- lock

3шт.

11

2-4192T1

NUT

- shaft

3шт.

12

19-105

WASHER,1/4", SAE

- flat, 1/4

3шт.

13

22-823

MOUNT

MOUNT - adhesive backed

1шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

7шт.

15

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

5шт.

1-2668

SHAFT

ASSEMBLY, Includes: Ref. 16 - 23

2шт.

16

NSS

NOT SOLD SEPARAT

SHAFT

2шт.

17

1-9416

WASHER

2шт.

18

1-9417

WASHER

2шт.

19

1-9418

NUT

- pivot shaft

2шт.

20

1-9419

CAP

- shaft seal

2шт.

21

1-9420

NUT

DRIVER - knurled

2шт.

22

1-9422

WASHER

- lock

2шт.

23

1-9421

NUT

- shaft

2шт.

24

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW, 1/4 UNC x 1-1/2 G-5

4шт.

25

19-5370

WAVE WASHER

- wave

2шт.

26

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

5шт.

27

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

MACHINE SCREW, no. 10 UNC x 3/4

4шт.

28

19-351

NUT,#10 - 24, GA

NUT - lock, no. 10 UNC G-A

4шт.

29

60-5902T1

SPACER

- shaft

2шт.

30

1-2685

CLIP

- spring

2шт.

31

19-6262

RING RACE

BEARING - snap in

7шт.

32

60-5900T1

ANGLE BAR

ANGLE - left side

1шт.

33

60-5901T1

ANGLE BAR

ANGLE - right side

1шт.

34

19-5992

RING, SNAP

RING - snap

4шт.

35

60-5899T1

ANGLE BAR

ANGLE - front

1шт.

36

60-5903T1

SUPPORT

BRACKET - pivot, left

1шт.

37

60-5904T1

SUPPORT

BRACKET - pivot, right

1шт.

38

19-1031

GASKET

JOINT - ball

1шт.

39

60-5898T1

POWER ARM

ARM - link, actuating

1шт.

40

19-89

NUT,1/4"-28, G5

1/4 UNF G-B

1шт.

41

60-5994T1

SPACER

- ball joint

1шт.

42

19-6263

NYLON BEARING,0.38" ID x 0.59" OD x 0.38"

BEARING - flange

4шт.

43

19-5866

RING, SNAP

RING - snap

2шт.

44

60-4236T1

WASHER

TANK - washer, window

1шт.

45

60-4241T1

FILLER CAP

CAP - vented, tank

1шт.

46

60-3183T1

PUMP, WATER

PUMP - window washer

1шт.

47

31-2361

MOUNTING CLIP

CLAMP - pump mounting

1шт.

48

31-2608

TUBE,10.00"

HOSE, , Adapter to Pivot Kit; Order 31-2607T1, and Cut to Required Length 10.00"

3шт.

49

31-2423

HOSE,0.19" ID x 15.00"

Tee to Tee 0.19" ID x 15.00"

2шт.

50

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

5шт.

51

31-2367

HOSE

-, Serial Range: tee-adapter

2шт.

52

31-2370

HOSE,4.7752 mm ID x 3302.00 mm

Pump to Tee 4.7752 mm ID x 3302.00 mm

1шт.

53

31-2422

HOSE,4.77 mm ID x 254.00 mm

Tank to Pump 4.77 mm ID x 254.00 mm

1шт.

54

1-2172

FLUID

- window washer (1 quart) (Not shown)

1шт.

55

31-2363

TEE

- plastic, 3/16

2шт.

56

31-2364

FITTING

- barbed

3шт.

57

60-5817T1

SUPPORT

BRACKET - washer tank

1шт.

58

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

59

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

1шт.

60

19-224

WASHER,3/8", SAE

- flat, 3/8

2шт.

61

1964755C1

SWITCH

- rocker (Not shown) (Rear wiper actuating) (1-6153)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.
