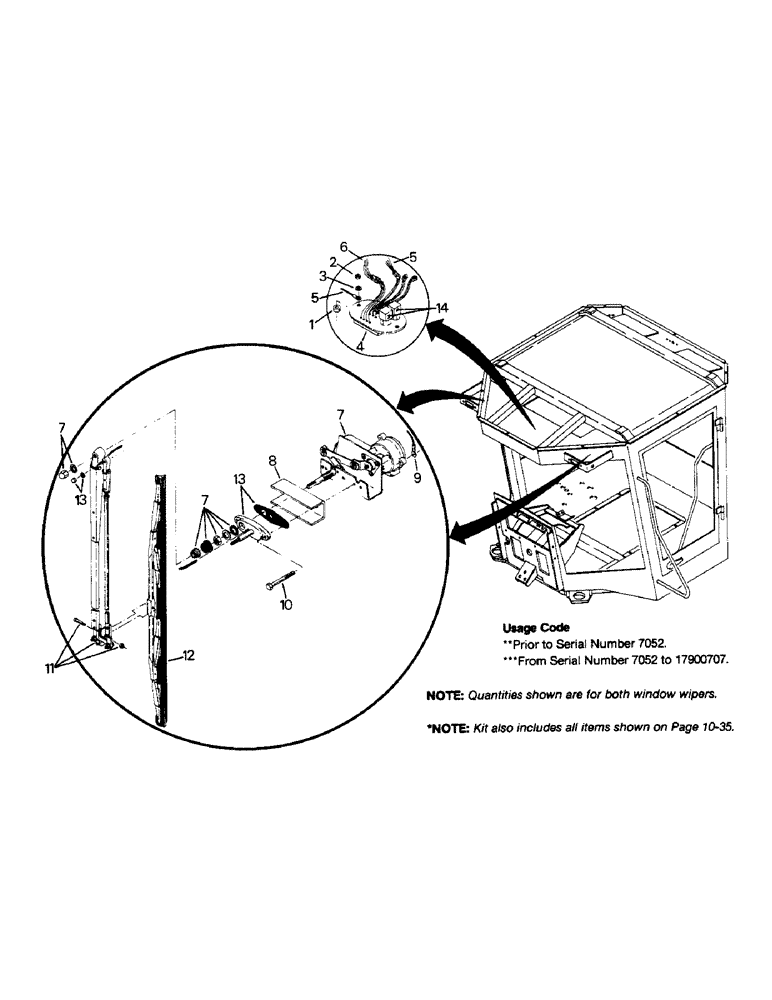

Запчасти Case IH 9110 (10-35) - FRONT SIDE WIPERS AND MOUNTING, PRIOR TO SERIAL NUMBER 17900707 Options & Miscellaneous

35-1609T91

KIT

- front and front side window washer and front side wiper, Includes: Ref. 1 - 14

1шт.

Kit also includes all Refs. shown on Figure 10-35.

1шт.

1

19-6069

SPACER

no. 10 x 1/2 x 9/32 thk

2шт.

2

19-567

NUT,#10-24

no. 10 UNC G-A

2шт.

3

19-195

WASHER,#10

- flat, no. 10

2шт.

4

20-1669T1

CIRCUIT-BREAKER

CIRCUIT BOARD - wiper control Includes Ref. 14

1шт.

5

20-2108T1

HARNESS

- side wiper

2шт.

6

20-2107T1

HARNESS

- wiper jumper

1шт.

7

DRIVE ASSEMBLY - wiper (See Fig. 1-48)

1шт.

8

2-2822T1

SPACER

- wiper mounting

2шт.

9

20-1452T1

ELECTRICAL WIRE

WIRE - motor ground

2шт.

10

185080

CLAMP,Hex, 1/4" - 28 x 2.27", Gr 5

CAPSCREW, 1/4 UNF x 2-1/4 G-5

4шт.

11

60-1440T1

WIPER ARM

ARM - wiper, 22 inch, Serial Range: -7052

2шт.

60-1144T1

WIPER ARM

ARM - wiper, 17 inch, Serial Range: 7052-17900707

1шт.

12

60-1439T91

HALF BLADE

BLADE - wiper, 26 inch, Serial Range: -7052

2шт.

2-4193T1

HALF BLADE

BLADE - wiper refill, Serial Range: -7052

1шт.

60-1145T91

WIPER BLADE

BLADE - wiper, 18 inch, Serial Range: 7052-17900707

1шт.

2-4194T1

WIPER BLADE

BLADE - wiper refill, Serial Range: 7052-17900707

1шт.

13

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade (See Fig. 1-47 for component parts)

2шт.

14

1-7877

RELAY

- electrical

2шт.
