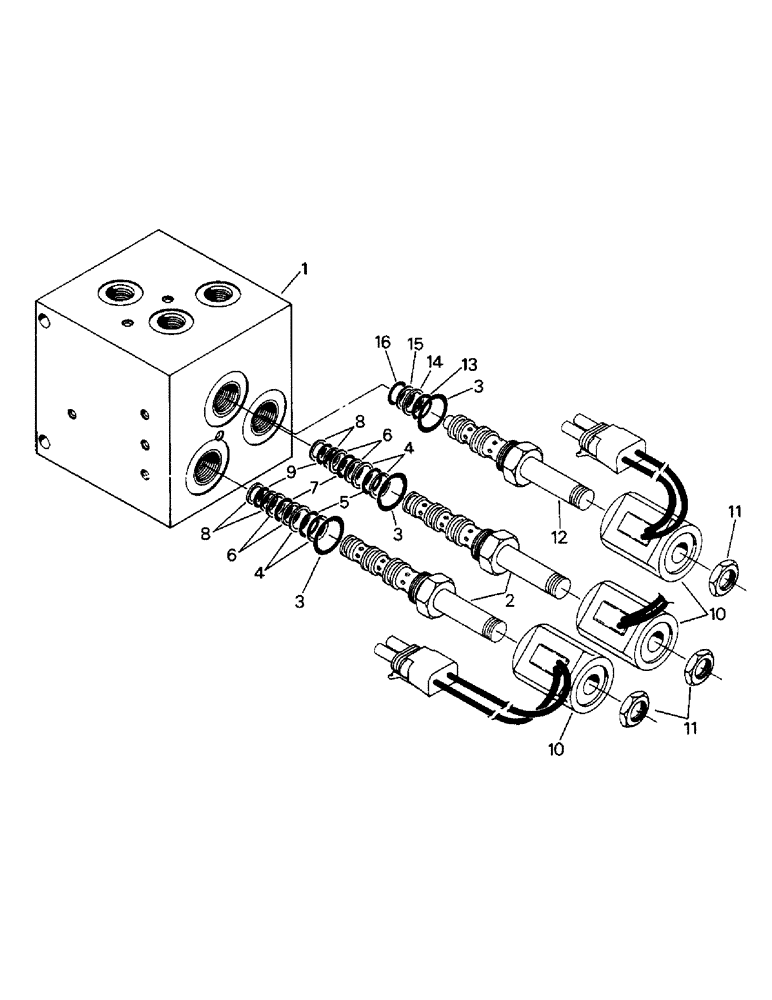

Запчасти Case IH 9110 (10-34) - SOLENOID VALVE ASSEMBLY, STEERABLE FRONT AXLE Options & Miscellaneous

50-3081T91

HYDRAULIC VALVE

VALVE ASSEMBLY - solenoid, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

33-1401T91

CARTRIDGE

ASSEMBLY, Includes: Ref. 2 - 11

2шт.

33-1402T1

SEAL

KIT - seal, Includes: Ref. 3, 4, 5, 6, 7, 8 and 9

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - solenoid

2шт.

3

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

seal 6-1, 90 Duro, .468" ID x .078" Thk

3шт.

Part of Seal Kit, P/N 33-1402T1

1шт.

Part of Seal Kit, P/N 33-1404T1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup

4шт.

Part of Seal Kit, P/N 33-1402T1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

Part of Seal Kit, P/N 33-1402T1

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup

4шт.

Part of Seal Kit, P/N 33-1402T1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

Part of Seal Kit, P/N 33-1402T1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup

4шт.

Part of Seal Kit, P/N 33-1402T1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

Part of Seal Kit, P/N 33-1402T1

1шт.

10

33-1405T1

SPINDLE

COIL - electrical

3шт.

11

19-289

JAM NUT,1/2" - 13, Gr 5

3шт.

33-1403T91

CARTRIDGE

ASSEMBLY, Includes: Ref. 12 - 15

1шт.

33-1404T1

KIT

- seal, Includes: Ref. 3, 13, 14, 15 and 16

1шт.

12

NSS

NOT SOLD SEPARAT

CARTRIDGE - solenoid

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 33-1404T1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit, P/N 33-1404T1

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit, P/N 33-1404T1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 33-1404T1

1шт.
