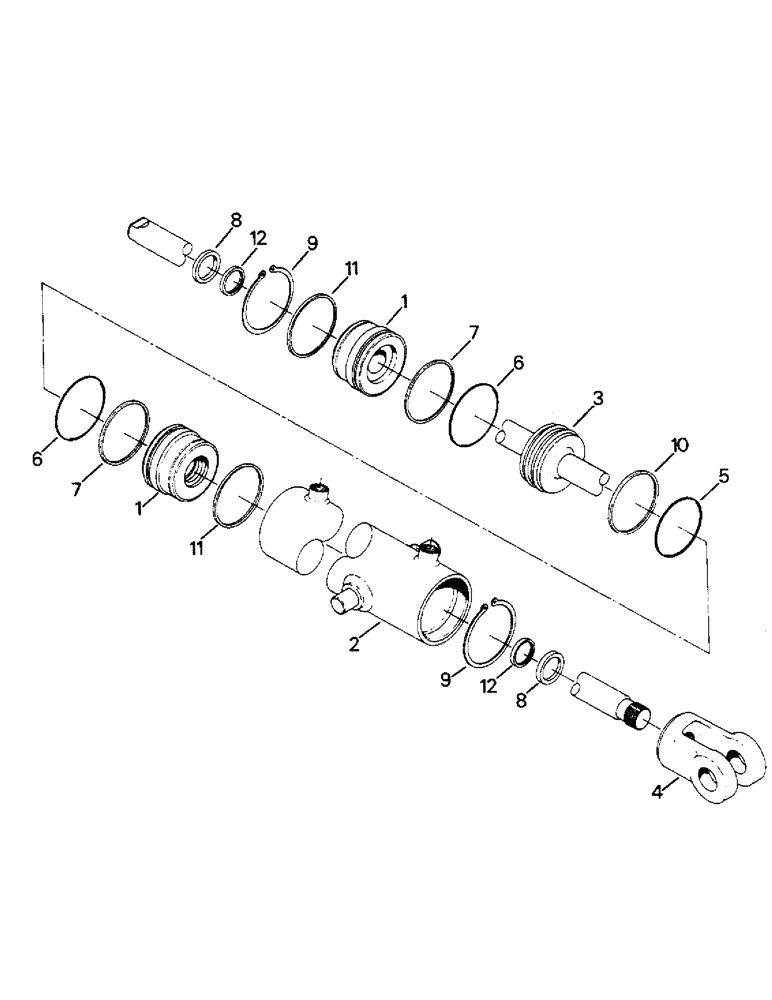

Запчасти Case IH 9110 (10-33) - STEERING CYLINDER ASSEMBLY, STEERABLE FRONT AXLE Options & Miscellaneous

50-3046T91

CYLINDER

ASSEMBLY - steering, Includes: Ref. 1 - 12

1шт.

33-1037T1

SEAL

KIT - seal, Includes: Ref. 5, 6, 7, 8, 10, 11 and 12

1шт.

1

33-1032T1

GUIDE

- rod

2шт.

2

33-1382T1

SLEEVE CYLINDER

BARREL - cylinder

1шт.

3

33-1034T1

ROD

AND PISTON (Replaces 33-1304T1)

1шт.

4

33-1035T1

END

- rod

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - wiper

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

9

33-1036T1

RING, SNAP

RING - snap

2шт.

10

NSS

NOT SOLD SEPARAT

SLIPPER - piston

1шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - lock

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.
