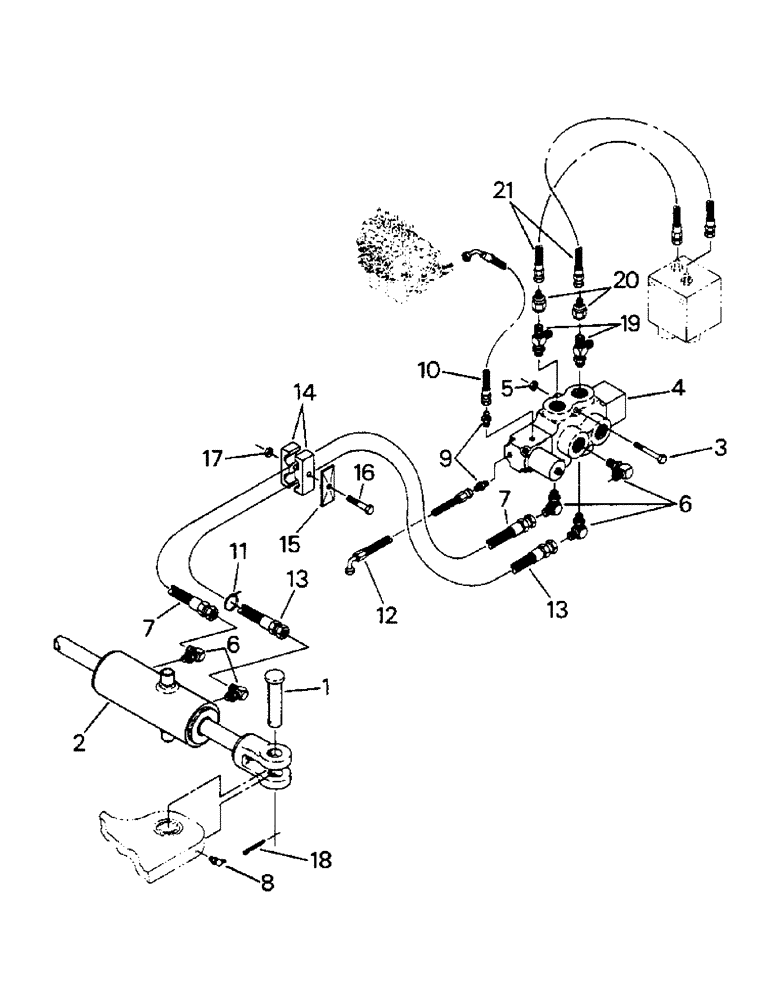

Запчасти Case IH 9110 (10-30) - STEERABLE AXLE HYDRAULIC SYSTEM, INSIDE FRAME Options & Miscellaneous

1

19-6230

CLEVIS PIN

PIN - clevis

1шт.

2

CYLINDER ASSEMBLY - steering (See Fig. 10-33)

1шт.

3

19-23

BOLT,3/8" - 16 x 2 3/4", Gr 5

CAPSCREW, 3/8 UNC x 2-3/4 G-5

2шт.

4

VALVE ASSEMBLY - double selector (See Fig. 10-32)

1шт.

5

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

2шт.

6

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8), 3/4-16 o-ring boss x 3/4-16 JIC 37 degree male

6шт.

7

31-1083

HOSE ASSY.

HOSE -, Serial Range: valve-cylinder

1шт.

8

31-93

FITTING

- lube, 1/8 NPT

1шт.

9

31-1028

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

ADAPTER, 1/8 NPT male x 7/16-20 JIC 37 degree male

2шт.

10

31-2692

HOSE ASSY.

HOSE - control, Serial Range: valve-valve

1шт.

11

31-2600

STRAP

- nylon, double hose

1шт.

12

31-2693

HOSE

- valve to drain tube

1шт.

13

31-1234

HOSE

-, Serial Range: valve-cylinder

1шт.

14

50-2534T1

CLAMP

- half

2шт.

15

50-2533T1

PLATE

COVER - half clamp

1шт.

16

19-724

CAPSCREW, 5/16 UNC x 2-1/2 G-5 Hex, 5/16"-18 x 2 1/2", G5

1шт.

17

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 UNC G-A

1шт.

18

19-199

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

19

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

(8) 3/4-16 o-ring boss x 3/4-16 JIC 37 degree male x 3/4-16 JIC 37 degree male

2шт.

20

31-2790

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

ADAPTER, 3/4-16 JIC 37 degree female x 7/16-20 JIC 37 degree male

2шт.

21

31-1189

HOSE ASSY.

HOSE -, Serial Range: valve-valve

2шт.
