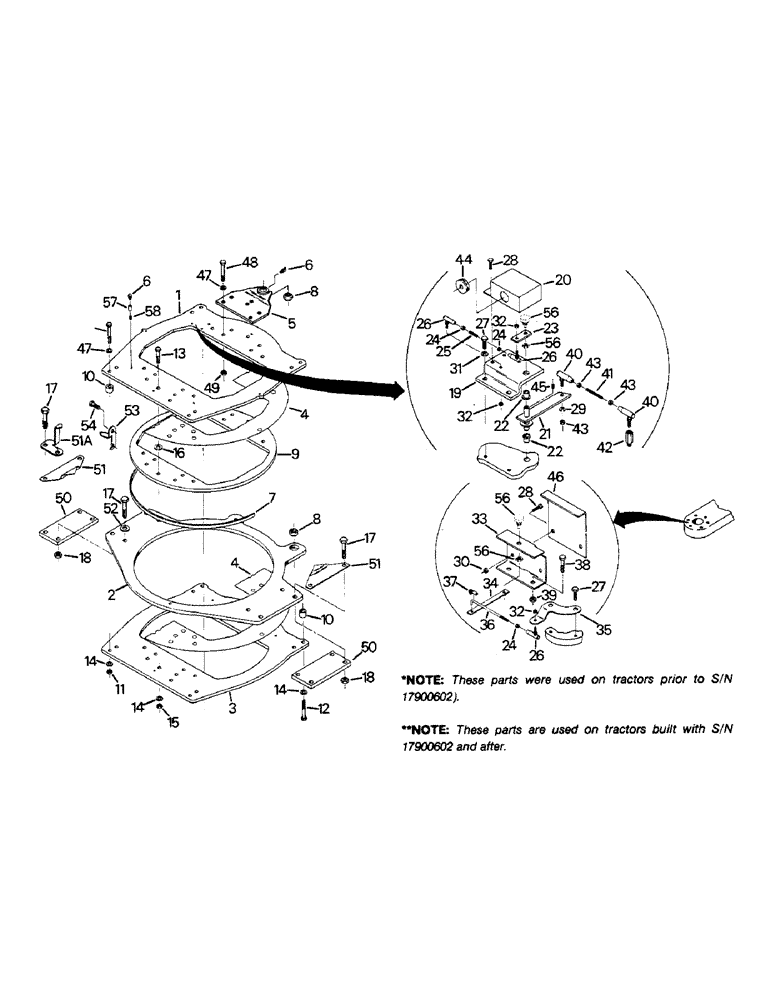

Запчасти Case IH 9110 (10-24) - STEERABLE AXLE MOUNTING, PRIOR TO SERIAL NUMBER 17901057 Options & Miscellaneous

1

70-4539T3

LARGE PLATE

PLATE - frame base

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used on tractors prior to S/N 17900602.

1шт.

70-4539T4

LARGE PLATE

PLATE - frame base

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts are used on tractors built with S/N 17900602 and after.

1шт.

2

70-4542T2

LARGE PLATE

PLATE - axle base

1шт.

3

70-4635T3

LARGE PLATE

PLATE - clamp

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

4

70-4652T2

LARGE PLATE

BEARING - nylatron

4шт.

5

70-5112T1

BRACKET

- cylinder mounting

2шт.

6

31-93

FITTING

- grease, 1/8 NPT

4шт.

7

70-4541T1

BEARING,48 mm OD x 1"

- nylatron

2шт.

8

70-4557T1

BALL JOINT

BEARING - uniball, 1-1/4inch

3шт.

9

70-4536T1

PLATE

- bearing

1шт.

10

70-4913T1

SPACER

13/16 x 1-3/4 x 1-9/64 thk

8шт.

11

19-85

LOCK NUT

- lock, 3/4 UNC G-B

4шт.

12

19-614

BOLT,3/4" - 10 x 4 1/2", Gr 5

CAPSCREW, 3/4 UNC x 4-1/2 G-5

8шт.

13

19-769

BOLT,Hex, 3/4" - 10 x 4", Gr 5

CAPSCREW, 3/4 UNC x 4 G-5

9шт.

14

19-712

WASHER,3/4", SAE

- flat, 3/4 x 1-1/2 x 1/8 thk

17шт.

15

19-84

NUT,3/4"-10, G5

3/4 UNC G-B

9шт.

16

19-6220

WASHER

SHIM - flat, 3/4 x 1-1/2 x 3/64 thk

14шт.

17

223493

SCREW

CAPSCREW, 1 UNC x 4-1/2 G-8

8шт.

18

19-859

LOCK NUT

- lock, UNC G-B

8шт.

19

70-4912T1

BRACKET

- control mounting

1шт.

20

70-4653T1

COVER

- control protection

1шт.

21

70-4654T1

LEVER

Potentiometer Mounting

1шт.

22

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flanged

2шт.

23

70-4658T1

LEVER

Actuating

1шт.

24

19-308

NUT,#10 - 32

no. 10 UNF G-A

3шт.

25

19-6228

ROD

- threaded, no. 10 UNF x 1-1/4

1шт.

26

6-1431

BALL JOINT

JOINT - ball, no. 10 UNF

3шт.

27

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

4шт.

28

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

4шт.

29

19-116

LOCK WASHER,5/16"

5/16"

1шт.

30

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

31

19-117

LOCK WASHER,3/8"

3/8"

2шт.

32

9411893

LOCK NUT,#10-32, GB

NUT - lock, no. 10 UNF G-A

3шт.

33

70-4675T2

BRACKET

Control Mounting

1шт.

34

70-4678T1

LEVER

Actuating

1шт.

35

70-4680T1

BRACKET

- link mounting

1шт.

36

70-4642T1

ROD

Control Adjusting

1шт.

37

60-2404T1

RETAINER

- rod

1шт.

38

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 UNC x 1-1/4 G-5

2шт.

39

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

2шт.

40

19-173

GASKET

JOINT - ball, 5/16 UNF

2шт.

41

19-6229

ROD,THREADED

ROD - threaded, 5/16 UNF x 2-5/16

1шт.

42

70-4661T1

SPACER

- ball joint

1шт.

43

19-88

NUT,5/16"-24, G5

5/16 UNF G-B

3шт.

44

22-765

GROMMET

- hole

1шт.

45

140880

SCREW - set, no. 10 UNF x 1/4

1шт.

46

70-4997T1

LARGE PLATE

PLATE, Cover

1шт.

47

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 thk

14шт.

48

9430296

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

CAPSCREW, 3/4 UNC x 5-1/2 G-8

5шт.

49

19-651

LOCK NUT

- lock, 3/4 UNC G-C

5шт.

50

70-4636T1

AXLE

PLATE - axle mounting

2шт.

51

90-6745T1

PLATE

INDICATOR - axle

2шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

These parts were used on tractors prior to S/N 17900602.

1шт.

51a

90-6950T1

DIPSTICK

INDICATOR - axle

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

These parts are used on tractors built with S/N 17900602 and after.

1шт.

52

19-5685

WASHER

- flat, 1 x 2-1/2 x 3/8 thk

4шт.

53

90-6949T1

FORK

INDICATOR - frame

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

These parts are used on tractors built with S/N 17900602 and after.

1шт.

54

19-476

BOLT,Hex, 3/4" - 10 x 2", Gr 8

CAPSCREW, 3/4 UNC x 2 G-8

2шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

These parts are used on tractors built with S/N 17900602 and after.

1шт.

55

1-1055

SEALANT

ANT - RTV (Not shown) (For attaching bearing ref. 4)

1шт.

56

POTENTIOMETER - electrical (See Fig. 10-29)

2шт.

57

31-57

COUPLING

- pipe, 1/8 NPT

2шт.

58

114794

NIPPLE,Nipple, 1/8" NPT x 2"

- pipe, 1/8 NPT x 2

2шт.
