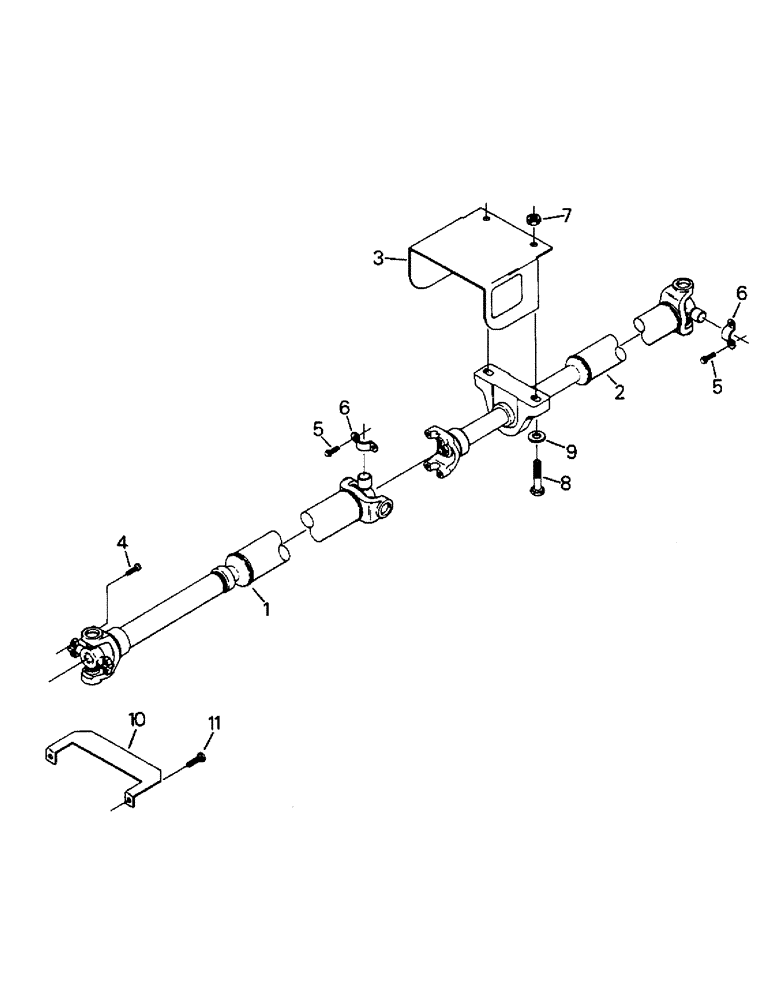

Запчасти Case IH 9110 (10-14) - PTO DRIVESHAFT AND MOUNTING Options & Miscellaneous

1

DRIVESHAFT ASSEMBLY (See Fig. 10-15)

1шт.

2

DRIVESHAFT ASSEMBLY (See Fig. 10-15)

1шт.

3

90-6675T1

SHIELD

- driveshaft

1шт.

4

454151

BOLT,Hex, 5/16" - 24 x 1.50", Gr 8

CAPSCREW, 5/16 UNF x 1-1/2 G-8

4шт.

5

19-6248

BOLT

CAPSCREW - 12 point, 5/16 UNF x 3/4 G-8

8шт.

6

90-6682T1

CLAMP

RETAINER - u-joint

4шт.

7

19-5960

LOCK NUT

- lock, 5/8 UNC G-A

2шт.

8

19-61

BOLT,5/8" - 11 x 2 1/2", Gr 5

CAPSCREW, 5/8 UNC x 2-1/2 G-5

2шт.

9

16-5642

WASHER - flat, 5/8

2шт.

10

90-6702T1

SHIELD

- driveshaft

1шт.

11

SM8124250

BOLT

CAPSCREW, M10 x 1.25 x 50 MM G8.8

2шт.
