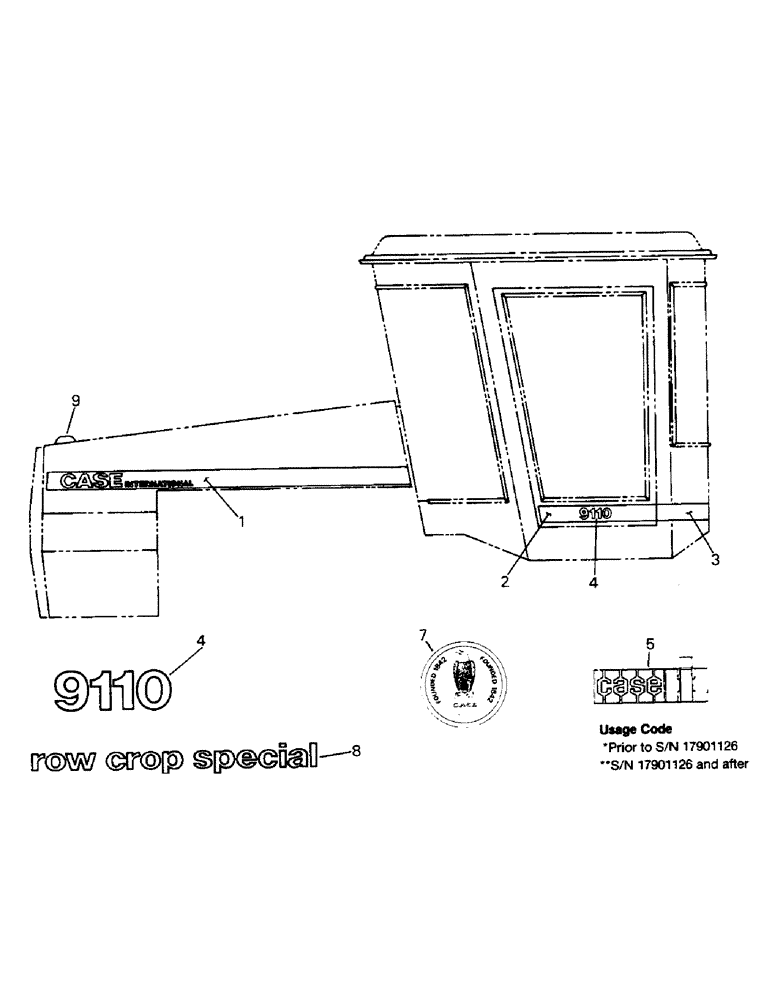

Запчасти Case IH 9110 (09-5) - DECALS AND MEDALLIONS (13) - DECALS

1

60-5955T1

DECAL

- left hood side, Serial Range: -17901126

1шт.

(60-5955T1) reads "CASE international"

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

60-6038T1

DECAL

- left hood side, Start Serial: 17901126

1шт.

Ref # 1; (60-6038T1 & 60-6039T1) both read

1шт.

"case international" in letters that are 40mm (1.58") tall.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

60-5954T1

DECAL

- right hood side, Serial Range: -17901126

1шт.

Ref # 1; (60-5954T1) reads "international CASE".

1шт.

The portion that reads "CASE" is 98mm (3.86") tall.

1шт.

The portion that reads "international" is 39mm (1.54") tall.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

60-6039T1

DECAL

- right hood side, Start Serial: 17901126

1шт.

"case international" in letters that are 40mm (1.58") tall.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

Ref # 1; (60-6038T1 & 60-6039T1) both read

1шт.

2

60-5958T1

DECAL

- left cab side

1шт.

60-5957T1

DECAL

- right cab side

1шт.

3

60-5959T1

DECAL

- cab rear

1шт.

4

2-7446T1

DECAL

- 9110 model, Serial Range: -17901126

2шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

5

A181538

EMBLEM CASE/IH

MEDALLION - adhesive backed

1шт.

A181437

EMBLEM CASE/IH

MEDALLION - front grille

1шт.

6

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self threading (Not shown) (Used for mounting grille medallion)

2шт.

7

A180055

CAP ASSY.

INSERT - steering wheel

1шт.

8

60-5998T1

DECAL

- row crop special (Red)

2шт.

9

2-4587T2

HOOD

MEDALLION - hoodsight

1шт.
