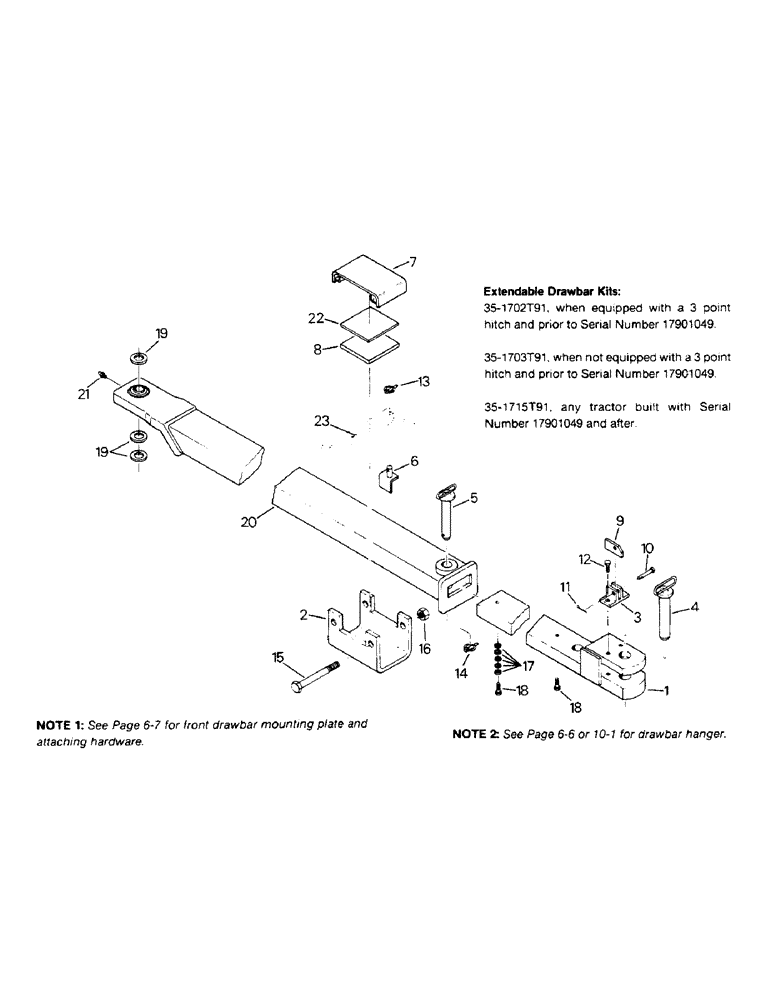

Запчасти Case IH 9110 (06-8) - EXTENDABLE DRAWBAR AND MOUNTING (12) - FRAME

1

70-5202T1

DRAWBAR

- extendable

1шт.

2

70-4516T1

CLEVIS

YOKE - drawbar slide

1шт.

3

70-1737T1

LATCH

BRACKET - drawbar latch

1шт.

4

70-1735T1

PIN

- implement

1шт.

5

70-1731T1

PIN

- drawbar retainer

1шт.

6

70-1937T2

SHAFT LOCK

PIN - stop, drawbar slide

2шт.

7

70-4555T1

COVER

- slide retainer

1шт.

8

70-4513T1

SLIDE

- plastic

1шт.

9

1-4906

LATCH

- implement pin

1шт.

10

42-102

CLEVIS PIN,1/2" x 2.060"

PIN - clevis, 1/2 x 2

1шт.

11

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1

1шт.

12

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

CAPSCREW, 1/2 UNC x 1-1/2 G-8

2шт.

13

19-6056

LOCK PIN,7/16" x 1 3/4"

PIN - klik

2шт.

14

19-1041

LOCK PIN,7/16" x 2"

PIN - klik

1шт.

15

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

CAPSCREW, 1 UNC x 9-1/4 G-8

2шт.

16

19-375

LOCK NUT,1" - 8, GB

NUT - lock, 1 UNC G-B

2шт.

17

19-111

WASHER,5/8"

- flat, 5/8

5шт.

18

19-1106

BOLT,Hex, 5/8" - 11 x 1.25, Gr 8, Full Thd

CAPSCREW, 5/8 UNC x 1-1/4 G-8

2шт.

19

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat hardened, 1-3/4 x 2-3/4 x 1/4 thk

3шт.

20

70-5255T1

TUBE

DRAWBAR - receiver tube

1шт.

21

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

22

70-5253T1

PLATE

- slide spacer

1шт.

23

HANGER - drawbar

1шт.

See Figure 6-6 or 10-1 for drawbar hanger.

1шт.
