Запчасти Case IH 9110 (06-6) - DRAWBAR HANGER AND MISCELLANEOUS, WITHOUT THREE POINT HITCH (12) - FRAME

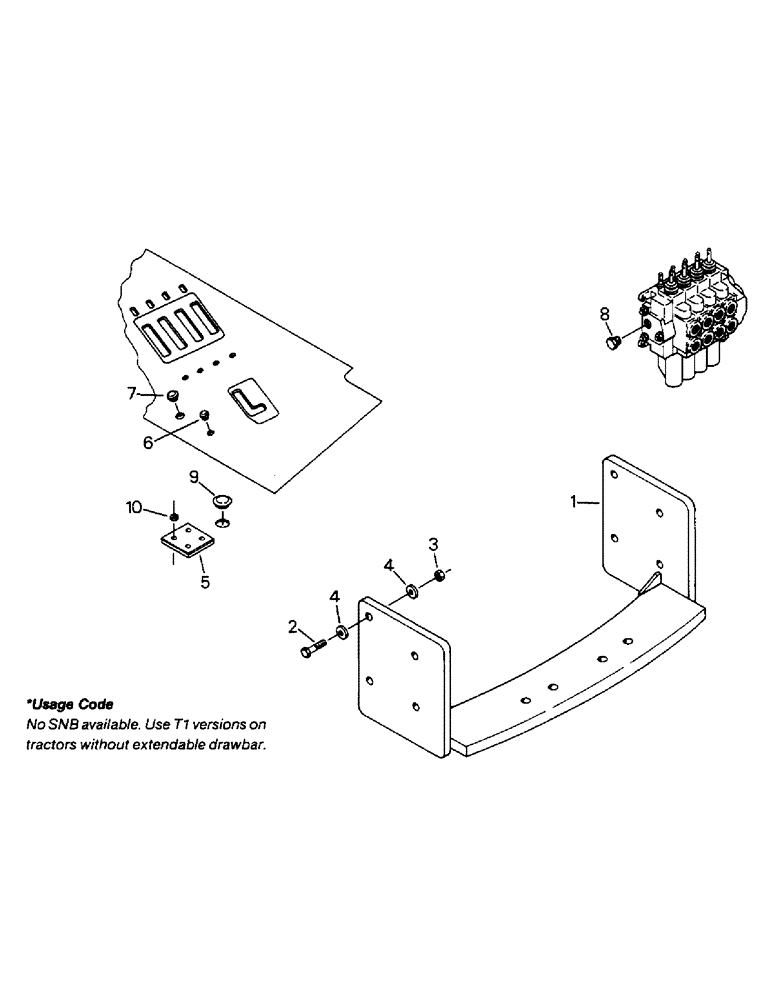

Схема запчастей Case IH 9110 - (06-6) - DRAWBAR HANGER AND MISCELLANEOUS, WITHOUT THREE POINT HITCH (12) - FRAME
10
1
2
9
3
7
5
4
8
6
4

Артикул

Название

Примечание

Количество

1

70-3154T2

HANGER

- drawbar (70-3154T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

No SNB available. Use T1 versions on tractors without extendable drawbar.

1шт.

2

19-6173

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

CAPSCREW, 3/4 UNC x 2-1/4 G-8

8шт.

3

19-85

LOCK NUT

- lock, 3/4 UNC G-B

8шт.

4

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 thk

16шт.

5

60-4652T1

COVER

- console floorboard

1шт.

6

60-4258T1

PLUG

- hole, 3/8

1шт.

7

64-146

PLUG

- hole, 1/2

1шт.

8

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- with o-ring (6)

1шт.

9

22-619

GROMMET

PLUG - hole, 1-1/4

1шт.

10

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 UNC G-A

4шт.

Выбрано товаров: 12
