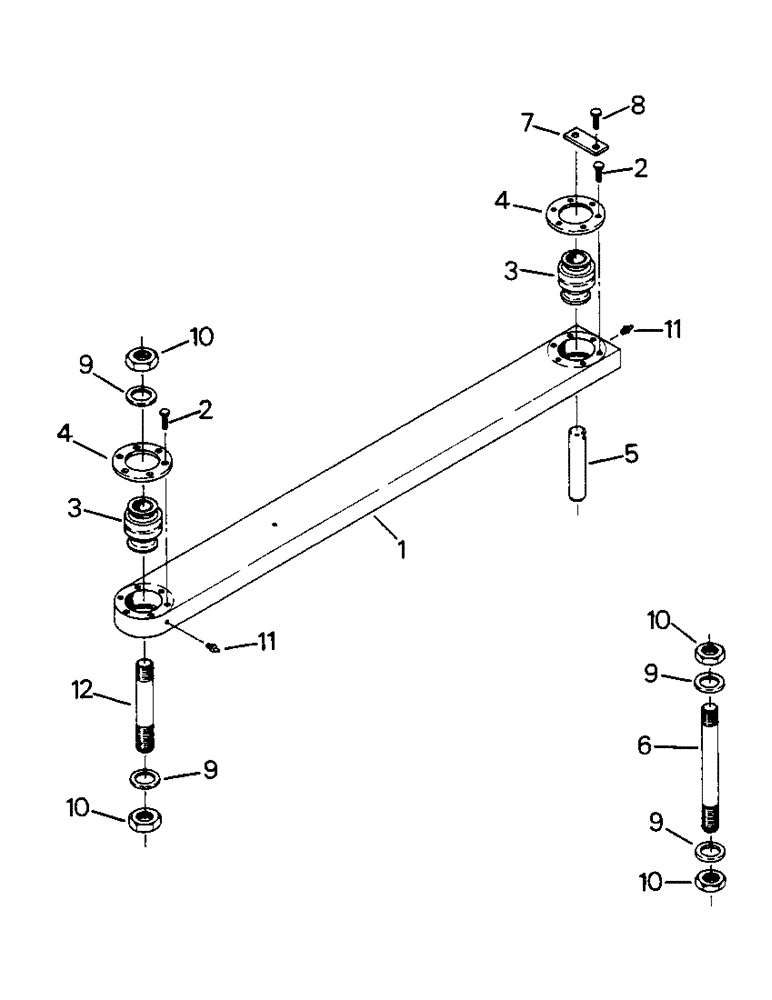

Запчасти Case IH 9110 (06-4) - KING PIN AND CONNECTING LINK (12) - FRAME

70-3135T91

ELEC CONNECTOR

LINK ASSEMBLY - frame connecting, Includes: Ref. 1 - 4

1шт.

1

70-3136T1

CONNECTOR, ELEC

LINK - frame connecting

1шт.

2

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 1 G-5

12шт.

3

15-45

SPHERICAL BEARING,1.755" ID x 3.5617" OD x 4"

- king pin uniball

2шт.

4

2-10

RETAINER

- bearing

2шт.

5

70-4077T1

PIN

- connecting link

1шт.

6

70-3137T1

PIN,44.37mm OD x 323.85mm L

- pivot, 1-3/4 x 12-3/4

1шт.

7

70-1910T1

RETAINER

- pin

1шт.

8

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, 1/2 UNC x 1-1/4 G-8

2шт.

9

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat (Special)

4шт.

10

19-620

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5

NUT - jam, 1-3/4 UN G-B

4шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

12

70-4662T1

PIN

- pivot, 1-3/4 x 9

1шт.
