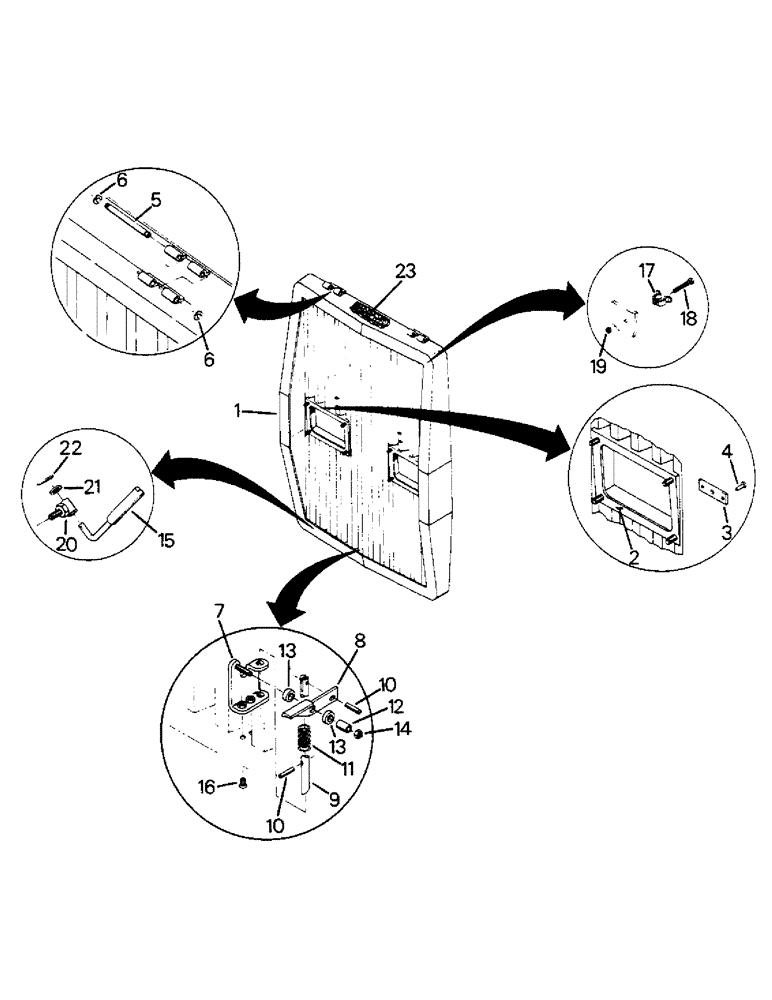

Запчасти Case IH 9110 (06-3) - 70-4503T91 GRILLE AND MOUNTING (12) - FRAME

70-4503T91

GRILLE

ASSEMBLY, Includes: Ref. 1 - 4

1шт.

1

70-4945T1

GRILLE

1шт.

2

70-4484T1

SUPPORT

BRACKET - lamp

2шт.

3

70-2507T2

LARGE PLATE

PLATE - retainer

2шт.

4

1-2503

RIVET,Pop, .146" x .425"

- pop

16шт.

5

70-1996T2

PIN

- hinge

2шт.

6

70-2600T1

RING, SNAP

RING - snap

4шт.

70-4190T91

LATCH

ASSEMBLY, Includes: Ref. 7 - 14

1шт.

7

70-4196T1

BRACKET

- latch

1шт.

8

70-4192T1

LEVER

- release

1шт.

9

70-4194T1

ROD

- locking

1шт.

10

455734

LOCK PIN,1/8" x 3/4", Slotted

Pin, 1/8" x 3/4", Slotted

2шт.

11

19-6155

SPRING

- compression

1шт.

12

70-4193T1

SPACER

- pivot

1шт.

13

70-4195T1

SPACER

2шт.

14

231-24109

LOCK NUT,#10-32, GB

NUT - lock, no. 10 UNF G-A

1шт.

15

70-4522T1

STEM

ROD - grille support

1шт.

16

19-565

SCREW,Sl Flat Hd, #10 - 24 x 5/8", Gr 5

MACHINE SCREW, no. 16 UNC x 5/8

2шт.

17

19-5988

CLIP

- rod retainer

1шт.

18

51200257

SCREW

MACHINE SCREW, no. 2 UNC x 3/4

1шт.

19

19-5789

NUT

no. 2 UNC G-A

1шт.

20

70-1797T1

ROD

PIVOT - grille rod

1шт.

21

19-107

WASHER

- flat, 3/8

1шт.

22

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1

1шт.

23

70-4527T2

FOAM

SEAL - foam

1шт.
