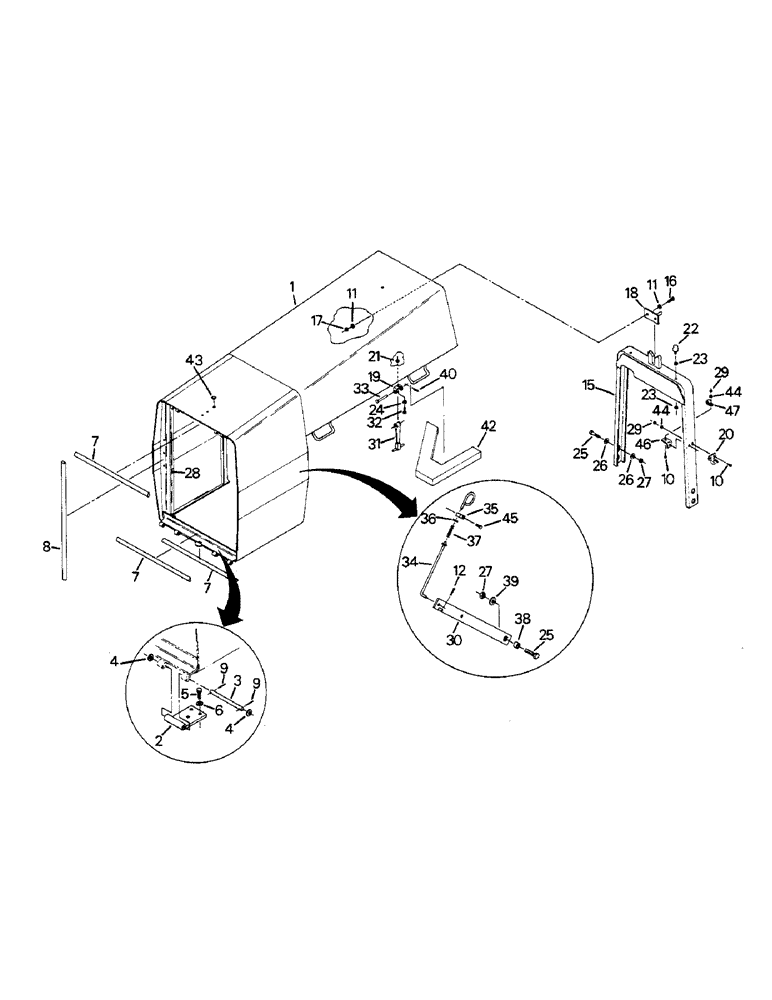

Запчасти Case IH 9110 (06-2) - 70-4502T2 HOOD AND MOUNTING (12) - FRAME

1

70-4502T2

HOOD

(70-4502T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

2

70-4263T1

HINGE

- hood tilt up

2шт.

3

70-4262T1

PIN

- hinge

2шт.

4

19-5779

BUSHING

WASHER - flat, 1/2 x 7/8 x 5/64 thk

4шт.

5

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 UNC x 1-1/4 G-5

6шт.

6

19-1059

WASHER

- flat, hardened, 3/8

6шт.

7

70-5265T1

SEAL

- foam (70-4525T1)

3шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

8

70-5264T1

SEAL

- foam (70-4529T1)

2шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

9

455734

LOCK PIN,1/8" x 3/4", Slotted

Pin, 1/8" x 3/4", Slotted

4шт.

10

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

3шт.

11

19-107

WASHER

- flat, 3/8

4шт.

12

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1

1шт.

15

70-4524T1

SUPPORT

- hood, rear

1шт.

16

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

2шт.

17

19-341

LOCK NUT,3/8" - 16, GB

NUT - lock, 3/8 UNC G-A

2шт.

18

70-4691T1

PLATE

STRIKER - hood latch

1шт.

19

2-4683T2

BRACKET

- anchor hood

1шт.

20

60-3063T2

BRACKET

- hood holddown

1шт.

21

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

1шт.

22

70-2816T1

BUMPER

- hood rest

2шт.

23

19-236

JAM NUT,5/16" - 24, Gr 5

- jam, 5/16 UNF G-B

4шт.

24

19-223

WASHER,1/4"

- flat, 1/4

1шт.

25

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 UNC x 1-1/2 G-5

5шт.

26

19-109

WASHER,1/2"

- flat, 1/2

8шт.

27

19-653

LOCK NUT

- lock, 1/2 UNC G-A

5шт.

28

70-4526T1

SEAL - foam

1шт.

29

19-5563

LOCK NUT

- lock, no. 10 UNC G-A

3шт.

30

70-4553T2

SUPPORT - hood tilt

1шт.

31

51-324

STRAP

TIEDOWN - rubber

1шт.

32

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 5/8 G-5

1шт.

33

19-5664

CLEVIS PIN,5/16" x 2"

PIN - clevis, 5/16 x 1-7/8

1шт.

34

70-4528T1

SLIDE

ROD - support, latch

1шт.

35

31-1775

CLAMP

- rod

1шт.

36

19-106

WASHER,5/16", SAE

- flat, 5/16

1шт.

37

19-6195

SPRING

- compression

1шт.

38

1-443

BUSHING

SPACER - pivot

1шт.

39

19-463

WASHER,1/2", SAE

- flat, 1/2

1шт.

40

19-558

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter) 3/32" x 1/2"

1шт.

42

70-4519T1

FOAM

SEAL - foam

1шт.

43

60-4401T1

PLUG

- rubber

2шт.

44

19-195

WASHER,#10

- flat, no. 10

3шт.

45

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

1шт.

46

70-5023T1

ANGLE

BRACKET - clamp mounting

1шт.

47

32-69

CLAMP

- cable

1шт.
