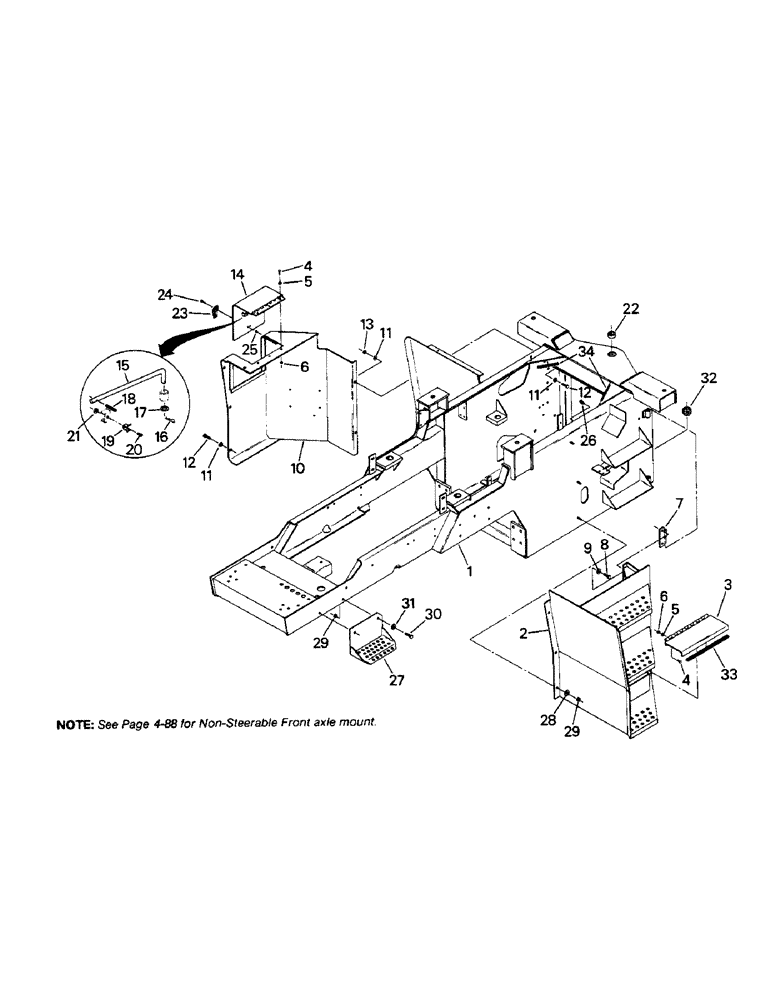

Запчасти Case IH 9110 (06-1) - FRONT FRAME (12) - FRAME

1

FRAME - front (Special order item)

1шт.

2

70-3160T1

STEP

- cab access

1шт.

3

70-3161T1

COVER

- tool box

1шт.

4

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

6шт.

5

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 1/16 thk

6шт.

6

19-508

LOCK NUT

- lock, 5/16 UNC G-B

6шт.

7

70-3158T1

HINGE

- step mounting

2шт.

8

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

CAPSCREW, 1/2 UNC x 1 G-B

4шт.

9

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened, 1/2 x 1 x 3/32 thk

4шт.

10

70-4548T1

COVER

- hydraulic component

1шт.

11

19-107

WASHER

- flat, 3/8

8шт.

12

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

6шт.

13

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

14

70-4708T1

COVER

DOOR - hydraulic cover

1шт.

15

70-4815T1

ROD

- door support

1шт.

16

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

19-306

WASHER

- flat, 3/8 x 11/16 x 3/64 thk

1шт.

18

19-5361

LOCK PIN,1/8" x 1 1/4", Slotted

Pin, 1/8" x 1 1/4", Slotted

1шт.

19

19-5988

CLIP

- rod retainer

1шт.

20

421169

GUARD

MACHINE SCREW, #2 UNC x 3/4

1шт.

21

70-4485T1

NUT

RETAINER - rod clip

1шт.

22

70-4621T1

BUSHING

- hinge pin

4шт.

23

70-4156T1

LATCH

- cover door

1шт.

24

340-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

MACHINE SCREW, no. 6 UNC x 1/2

2шт.

25

19-5564

LOCK NUT,#6-32, GB

NUT - lock, no. 6 UNC G-A

2шт.

26

31-93

FITTING

- grease, 1/8 NPT

2шт.

27

70-2142T3

STEP

- front

1шт.

28

19-463

WASHER,1/2", SAE

- flat, 1/2

3шт.

29

19-82

LOCK NUT

- lock, 1/2 UNC G-B

5шт.

30

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 UNC x 1-1/2 G-5

2шт.

31

19-109

WASHER,1/2"

- flat, 1/2

2шт.

32

15-44

SPHERICAL BEARING

BEARING - steering cylinder

2шт.

33

2-7088T1

GASKET

GROMMET - tool box cover

1шт.

34

31-2787

GROMMET

- frame

2шт.
