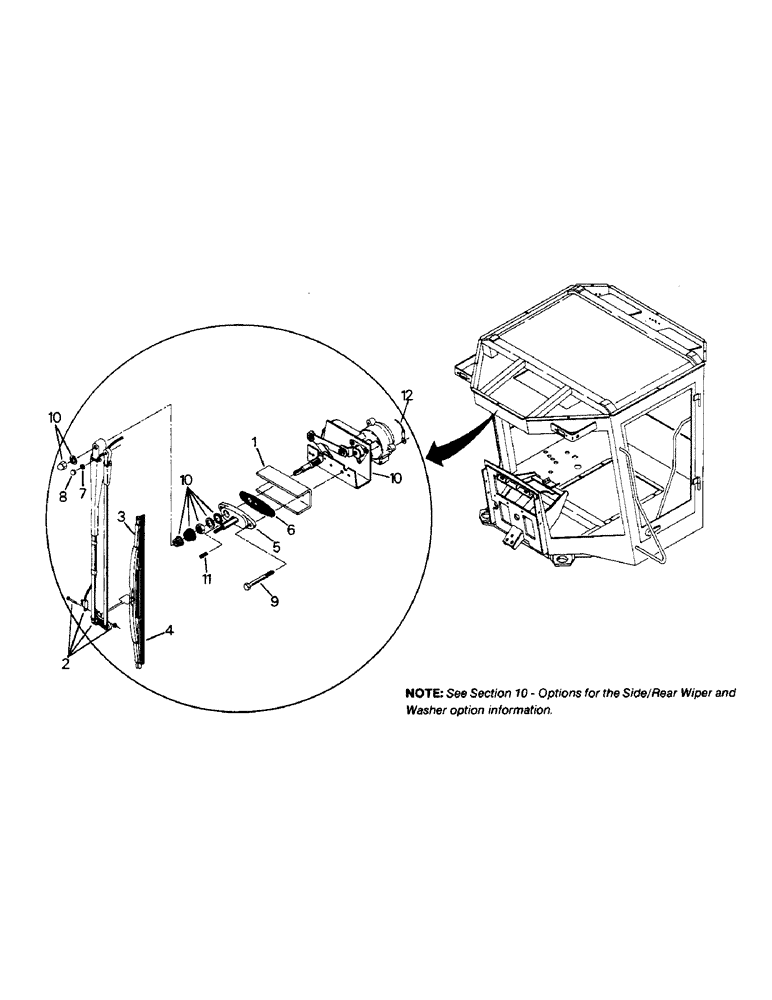

Запчасти Case IH 9110 (01-47) - FRONT WIPER MOUNTING (10) - CAB

1

2-2822T1

SPACER

- wiper mounting

1шт.

2

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

1шт.

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME - wiper blade

1шт.

4

2-4194T1

WIPER BLADE

BLADE - wiper, 18 inch

1шт.

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SHAFT ASSEMBLY

1шт.

6

2-4190T1

GASKET

1шт.

7

2-4191T1

WASHER

1шт.

8

2-4192T1

NUT

1шт.

9

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

CAPSCREW, 1/4 UNF x 2-1/4 G-5

2шт.

10

DRIVE ASSEMBLY - wiper (See Fig. 1-48 and 1-49)

1шт.

11

20-1317T1

CAP

- washer tube cover (Not used with window washer)

1шт.

12

20-1452T1

ELECTRICAL WIRE

WIRE - motor ground

1шт.
