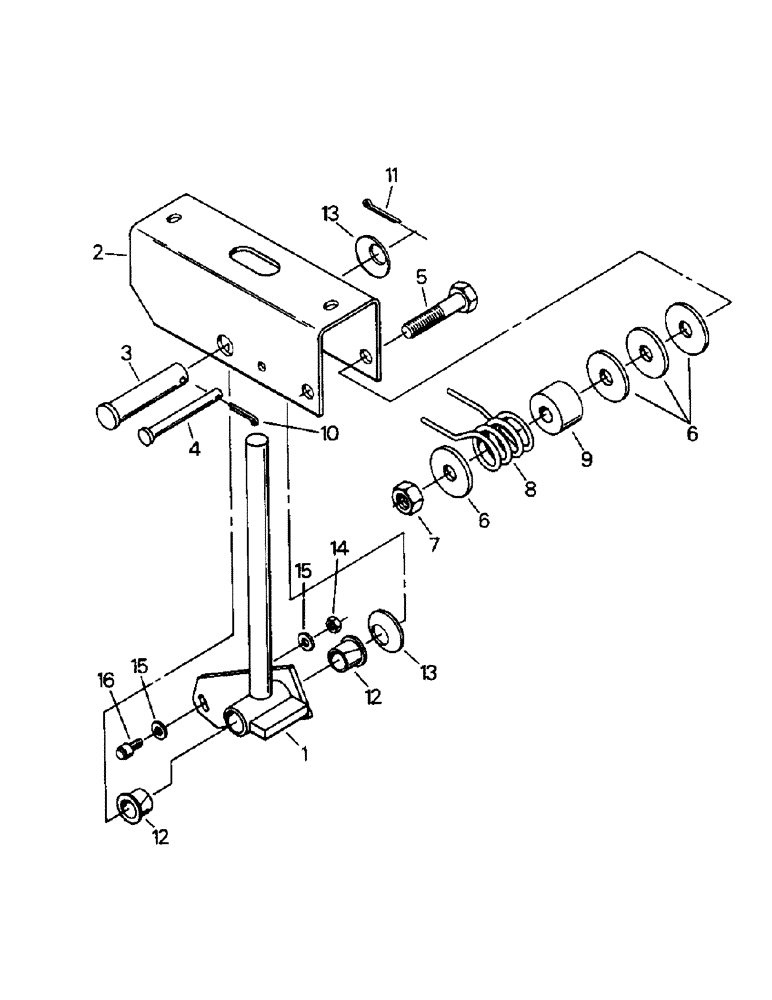

Запчасти Case IH 9110 (01-42) - PULSER LEVER ASSEMBLY (10) - CAB

60-4447T93

CONTROL

LEVER ASSEMBLY - pulser, Includes: Ref. 1 - 16

1шт.

1

60-4509T2

CONTROL

LEVER - pulser

1шт.

2

60-4510T2

FRAME

- pulser

1шт.

3

19-6165

PIN

- clevis, 1/2 x 2-1/4 inch

1шт.

4

19-6160

PIN

- clevis, 1/4 x 2-1/4 inch

1шт.

5

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 UNC x 1-3/4 G-5

1шт.

6

19-6192

WASHER - flat, 3/8 x 1-1/4 x 7/64 thk

4шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

1шт.

8

70-4486T2

SPRING

- lever return

1шт.

9

60-4511T2

SPACER

- spring

1шт.

10

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

11

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

1шт.

12

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flanged

2шт.

13

19-6034

SPRING WASHER

- curved spring, 1/2

2шт.

14

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- Keps, no. 8 UNC G-A

1шт.

15

19-281

WASHER,#8

- flat, no. 8

2шт.

16

20-1316T1

ACTUATOR

- magnetic

1шт.
