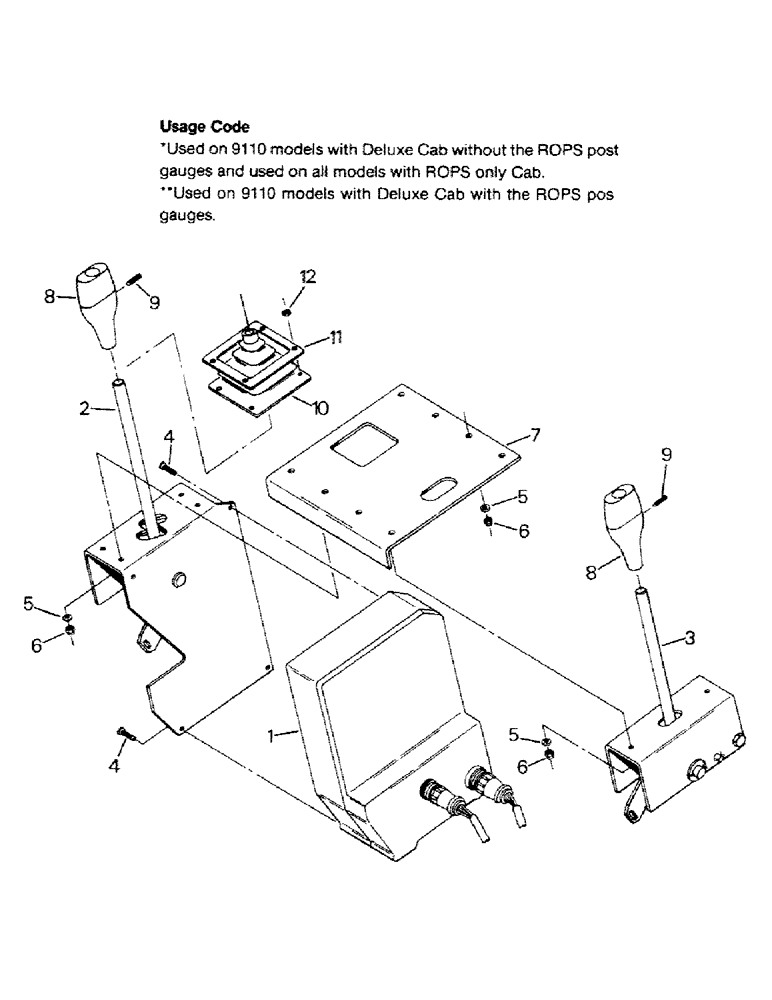

Запчасти Case IH 9110 (01-40) - TRANSMISSION CONTROLS (10) - CAB

60-5761T91

CONTROL

LER ASSEMBLY - transmission (Replaces 70-5761T91), Includes: Ref. 1 - 7

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

Used on 9110 models with Deluxe Cab without the ROPS post gauges and used on all models with ROPS only Cab.

1шт.

60-5868T91

CONTROL

LER ASSEMBLY - transmission, Includes: Ref. 1 - 7

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

Used on 9110 models with Deluxe Cab with the ROPS post gauges.

1шт.

60-6570T1R

REMAN ELECT CONTROL

9110 PRIOR TO P.I.N. JCB0003600 (12/86-6/89), Reman for New P/N 60-5868T91

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

20-2487T1

TERMINAL BOX

BOX ASSEMBLY - electronic

1шт.

60-6570T1R

REMAN ELECT CONTROL

9110 (12/86-6/89), Reman for New P/N 20-2487T1

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

LEVER ASSEMBLY - mode (See Fig. 1-41)

1шт.

3

LEVER ASSEMBLY - pulser (See Fig. 1-42)

1шт.

4

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

TAPPING SCREW, no. 10 UNS x 3/4

4шт.

5

19-105

WASHER,1/4", SAE

- flat, 1/4

14шт.

6

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

14шт.

7

60-5058T1

SUPPORT

BRACKET - lever mounting

1шт.

8

60-6036T1

KNOB

KNOB - control lever (60-4512T1)

2шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

9

19-5926

SET SCREW

SCREW - set, no. 8 UNC x 3/8

2шт.

10

60-5847T1

BOOT

- lever inclosure (Used on ROPS only cab only)

2шт.

11

60-5846T1

RETAINER

- boot (Used on ROPS only cab only)

2шт.

12

19-5564

LOCK NUT,#6-32, GB

NUT - lock, no. 6 UNC G-A (Used on ROPS only cab only)

8шт.
