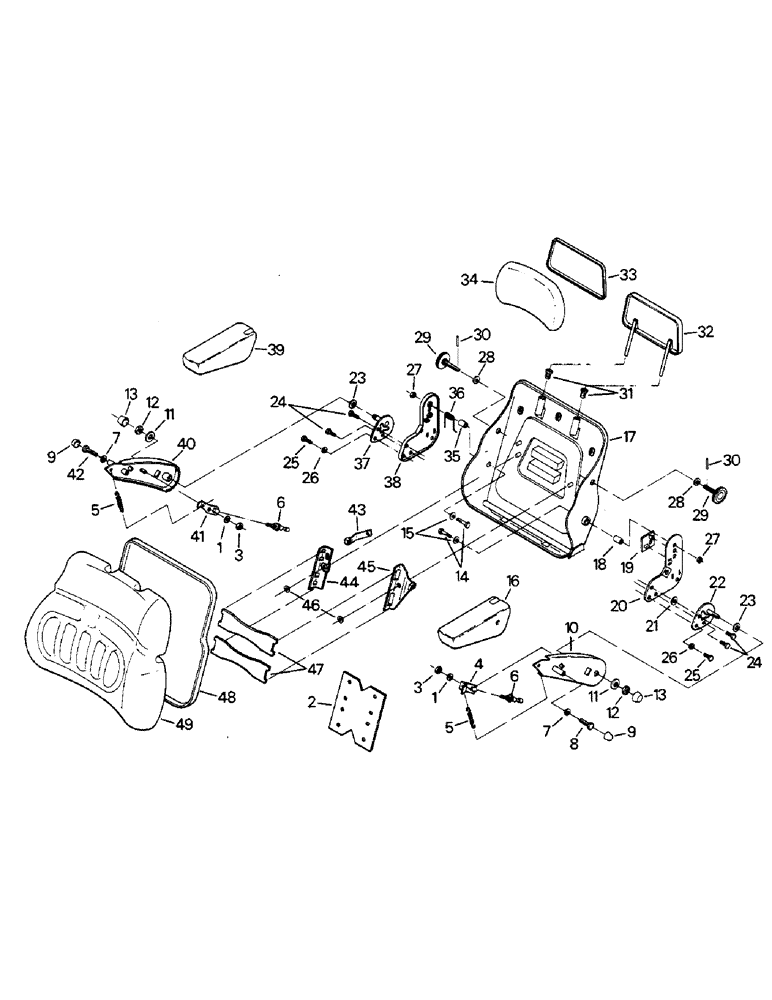

Запчасти Case IH 9110 (01-31) - SEAT ASSEMBLY, BACK CUSHION AND ARMREST (10) - CAB
№
Артикул
Название
Примечание
Количество
1
40-1153
WASHER
- flat, M13
2шт.
2
60-1705T1
PLATE
- plastic
1шт.
3
60-1655T1
NUT
M12
2шт.
4
60-3188T1
RETAINER
- armrest adjustment, left
1шт.
5
60-3189T1
SPRING
- armrest adjustment retainer
2шт.
6
60-1650T1
STEERING KNUCKLE
SPINDLE - adjustable, armrest
2шт.
7
40-1008
WASHER
- flat, M10
2шт.
8
40-1073
CAPSCREW,Hex, M10 x 1.5 x 70mm, Gr 8.8
M10 x 70 MM
1шт.
9
60-1656T1
COVER
protective
2шт.
10
60-3190T1
SUPPORT
- armrest, left
1шт.
11
40-1156
WASHER
- flat, M25
2шт.
12
60-1653T1
LOCK NUT
- lock, M24 x 1.5
2шт.
13
60-3240T1
COVER
- protective
2шт.
14
40-1150
CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8
M8 x 30
2шт.
15
40-1007
WASHER
- flat, M8
2шт.
16
60-3194T1
ARMREST
- left
1шт.
17
60-4860T1
BACKREST
PAN - backrest
1шт.
18
60-4852T1
SPACER
- armrest support mount
1шт.
19
60-4859T1
SPACER
1шт.
20
60-4858T1
MOUNTING PARTS
MOUNT, armrest support, left
1шт.
21
60-1679T1
WASHER
- flat, M10
1шт.
22
60-3256T1
LARGE PLATE
PLATE - bearing, left
1шт.
23
60-1654T1
WASHER
- flat, M24
2шт.
24
60-4847T1
SCREW
CAPSCREW, M8 x 35 MM
4шт.
25
19-214
BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5
CAPSCREW, 7/16 UNF x 1-3/4
2шт.
26
19-193
LOCK WASHER,Ext Tooth, 7/16"
WASHER - flat, 7/16
2шт.
27
60-4845T1
NUT
M8
2шт.
28
60-1667T1
WASHER
M11
2шт.
29
60-3200T1
KNOB
- lumbar support
2шт.
30
40-1176
PIN
- spring, M3 x 20 MM
2шт.
31
60-1669T1
BUSHING
- headrest
2шт.
32
60-1672T1
SUPPORT
- backrest extension
1шт.
33
60-1642T1
SUPPORT
EXTRUSION - plastic
1шт.
34
60-5952T1
CUSHION
- headrest (With gray cloth upholstery)
1шт.
60-4916T1
CUSHION
- headrest (With tan cloth upholstery)
1шт.
35
60-4850T1
SPACER
- armrest support mount
1шт.
36
60-4849T1
SPRING
1шт.
37
60-3257T1
PLATE
- bearing, right
1шт.
38
60-4851T1
MOUNTING PARTS
MOUNT - armrest support, right
1шт.
39
60-3199T1
ARMREST
- right
1шт.
40
60-3195T1
SUPPORT
- armrest, right
1шт.
41
60-3196T1
RETAINER
- armrest adjustment, right
1шт.
42
40-1069
CAPSCREW,Hex, M10 x 1.5 x 45mm, Gr 8.8
M10 x 45 MM
1шт.
43
60-1695T1
BEARING
1шт.
44
60-1696T1
BRACKET
- angled
1шт.
45
60-1698T1
BRACKET
BEARING
1шт.
46
60-1697T1
RING, SNAP
RING - retainer
2шт.
47
60-1699T1
PLATE
2шт.
48
60-1641T1
SUPPORT
EXTRUSION - plastic
1шт.
49
60-5950T1
CUSHION
- seat back (With gray cloth upholstery)
1шт.
60-4915T1
CUSHION
- seat back (With tan cloth upholstery)
1шт.
Выбрано товаров: 51
