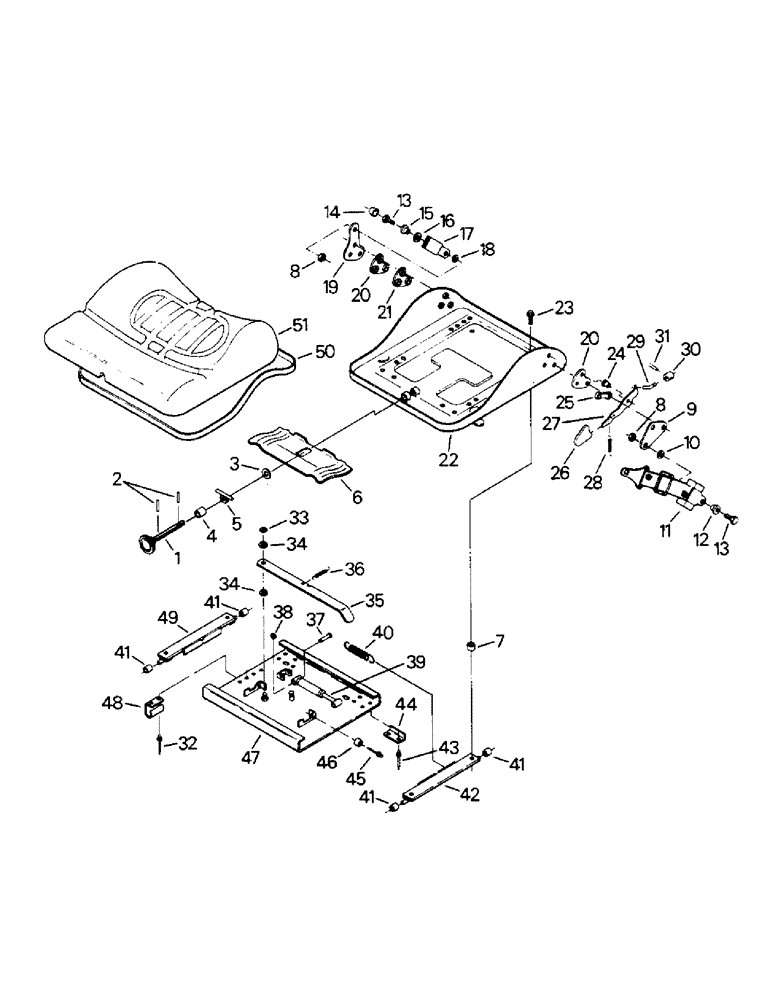

Запчасти Case IH 9110 (01-29) - SEAT ASSEMBLY, SEAT CUSHION AND LATERAL ISOLATOR (10) - CAB
№
Артикул
Название
Примечание
Количество
1
60-4848T1
KNOB
SPINDLE ASSEMBLY - seat inclination
1шт.
2
40-1175
PIN
- spring, M3 x 18 MM
2шт.
3
40-1153
WASHER
- flat, M13
1шт.
4
60-3203T1
BUSHING
- spacer
1шт.
5
60-1687T1
NUT
- retaining
1шт.
6
60-1694T1
PLATE
- support
1шт.
7
60-3237T1
BUSHING
SPACER - seat pan mounting
4шт.
60-4869T91
SAFETY BELT
BELT ASSEMBLY - seat, safety, Includes: Ref. 8 - 19
1шт.
8
60-4870T1
NUT
7/16 UNF
2шт.
9
60-4871T1
ANCHOR
MOUNT - safety belt
1шт.
10
40-1159
WASHER
- flat, M13
1шт.
11
60-4872T1
STRAP
- safety belt
1шт.
12
60-3197T1
BUSHING
- strap swivel
1шт.
13
60-1665T1
CAPSCREW,Pan, #10 - 32 x .375"
7/16 UNF x 1
2шт.
14
60-1656T1
COVER
- protective
1шт.
15
60-1666T1
BUSHING
- buckle swivel
1шт.
16
60-1662T1
WASHER
- spring, M15
1шт.
17
60-1658T1
BUCKLE
- safety belt
1шт.
18
60-1667T1
WASHER
- flat, M11
1шт.
19
60-1668T1
BRACKET
- safety belt
1шт.
20
60-1638T1
LARGE PLATE
SPACER - safety belt mount
2шт.
21
60-4844T1
PLATE
SPACER - safety belt bracket
1шт.
22
60-3236T1
PAN
- seat bottom
1шт.
23
60-1628T1
BOLT
CAPSCREW, M8 x 20 mm
4шт.
24
60-4855T1
BUSHING
- lever pivot
1шт.
25
60-4854T1
SPACER
- safety belt mount
1шт.
26
60-4861T1
HANDLE
- back reclining lever
1шт.
27
60-4856T1
LEVER
- back reclining
1шт.
28
60-4853T1
SPRING
- lever return
1шт.
29
60-4857T1
ROD
1шт.
30
60-4841T1
STOP
- reclining lever
1шт.
31
40-1232
PIN
- spring, M4 x 14 MM
1шт.
32
1-2503
RIVET,Pop, .146" x .425"
- pop, 5/32 dia. x 1/4
2шт.
60-3235T91
LEVER ASSY.
LEVER ASSEMBLY, Includes: Ref. 33 - 35
1шт.
33
40-1155
CIRCLIP,M10
RING - snap, M9
1шт.
34
40-1183
WASHER
M10
2шт.
35
NSS
NOT SOLD SEPARAT
LEVER - lateral isolator
1шт.
36
60-3234T1
SPRING
- lever return
1шт.
60-3230T91
SHOCK ABSORBER
ASSEMBLY, Includes: Ref. 37 - 39
1шт.
37
60-3233T1
PIN
- shock mounting
2шт.
38
40-1182
CIRCLIP,M6
RING - snap, M5
2шт.
39
NSS
NOT SOLD SEPARAT
SHOCK ABSORBER
1шт.
40
60-3232T1
SPRING
- lateral isolator return
2шт.
41
60-3228T1
NEEDLE BEARING
- needle roller
4шт.
42
60-3229T1
BRACKET
- isolator, left
1шт.
60-3226T91
BASE
ASSEMBLY - isolator, Includes: Ref. 43 - 47
1шт.
43
NSS
NOT SOLD SEPARAT
RIVET - pop
8шт.
44
NSS
NOT SOLD SEPARAT
ANGLE
4шт.
45
NSS
NOT SOLD SEPARAT
RIVET - pop
2шт.
46
60-3231T1
BUMPER
- isolator
2шт.
47
NSS
NOT SOLD SEPARAT
BASE - lateral isolator
1шт.
48
60-3366T1
SPRING
- leaf
1шт.
49
60-3227T1
BRACKET
- isolator, right
1шт.
50
60-1640T1
SUPPORT
EXTRUSION - plastic
1шт.
51
60-5951T1
CUSHION
- seat bottom (With gray cloth upholstery)
1шт.
60-4914T1
CUSHION
- seat bottom (With tan cloth upholstery)
1шт.
Выбрано товаров: 56
