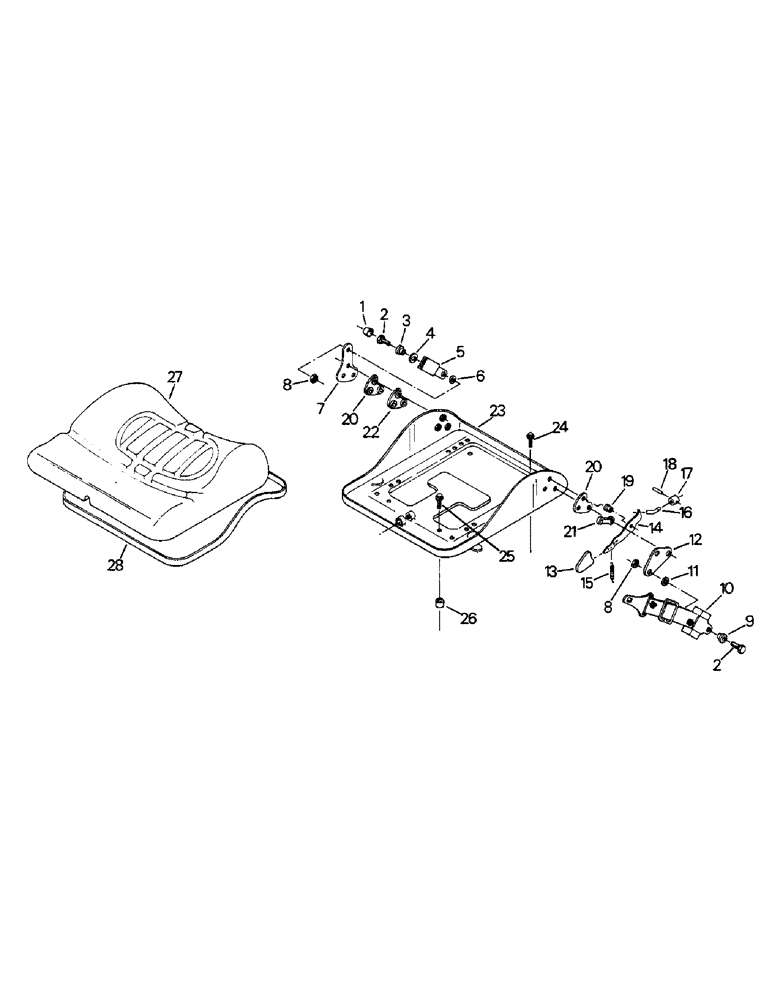

Запчасти Case IH 9110 (01-21) - SEAT ASSEMBLY, SEAT CUSHION AND SEAT BELT (10) - CAB

60-4869T91

SAFETY BELT

BELT ASSEMBLY - seat, safety, Includes: Ref. 1 - 12

1шт.

1

60-1656T1

COVER

- protective

1шт.

2

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

7/16 UNF x 1

2шт.

3

60-1666T1

BUSHING

- buckle swivel

1шт.

4

60-1662T1

WASHER

- spring, M15

1шт.

5

60-1658T1

BUCKLE

- safety belt

1шт.

6

60-1667T1

WASHER

- flat, M11.5

1шт.

7

60-1668T1

BRACKET

- safety belt

1шт.

8

60-1661T1

NUT

7/16 UNF

2шт.

9

60-3197T1

BUSHING

- strap swivel

1шт.

10

60-4872T1

STRAP

- safety belt

1шт.

11

40-1159

WASHER

- flat, M13

1шт.

12

60-4871T1

ANCHOR

MOUNT - safety belt

1шт.

13

60-4861T1

HANDLE

- back reclining lever

1шт.

14

60-4856T1

LEVER

- backrest reclining

1шт.

15

60-4853T1

SPRING

- lever return

1шт.

16

60-4857T1

ROD

1шт.

17

60-4841T1

STOP

- reclining lever

1шт.

18

40-1232

PIN

- spring, M4 x 14 MM

1шт.

19

60-4855T1

BUSHING

- lever pivot

1шт.

20

60-1638T1

LARGE PLATE

SPACER - safety belt mount

2шт.

21

60-4854T1

SPACER

- safety belt mount

1шт.

22

60-4844T1

PLATE

SPACER - safety belt bracket

1шт.

23

60-4865T1

PAN

- seat bottom

1шт.

24

60-4843T1

SCREW

CAPSCREW, M8 x 16 MM

2шт.

25

60-1628T1

BOLT

CAPSCREW, M8 x 20 MM

2шт.

26

60-4846T1

BUSHING

SPACER - seat pan mounting

2шт.

27

60-5947T1

CUSHION

- seat bottom (With gray cloth upholstery)

1шт.

60-5622T1

CUSHION

- seat bottom (With tan cloth upholstery)

1шт.

33-1394T1

CUSHION

- seat bottom (With vinyl upholstery)

1шт.

28

60-1640T1

SUPPORT

EXTRUSION - plastic

1шт.
