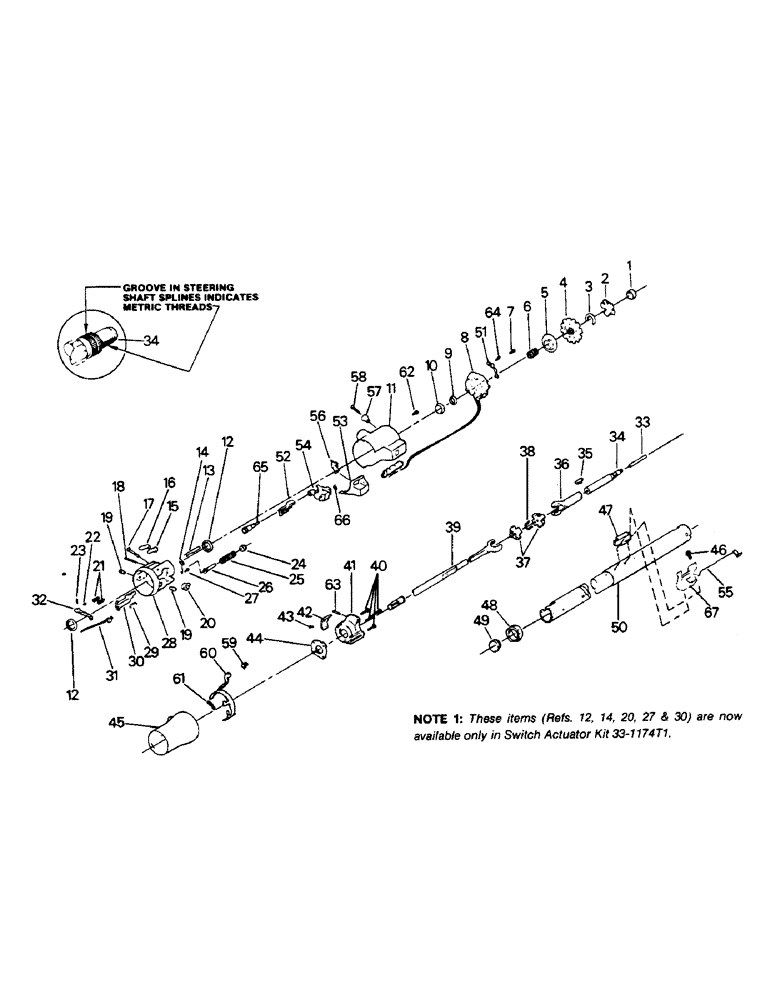

Запчасти Case IH 9110 (01-17) - STEERING COLUMN ASSEMBLY (10) - CAB
№
Артикул
Название
Примечание
Количество
1-7630
STEERING COLUMN
COLUMN ASSEMBLY - steering, tilt and telescoping, Includes: Ref. 1 - 68
1шт.
1
1-1320
BUMPER
- retracted steering shaft
1шт.
2
1-1329
RETAINER
- carrier snap ring
1шт.
3
1-1331
RETAINER
- shaft lock
1шт.
4
1-1325
ARRESTER
LOCK - steering shaft
1шт.
6
1-4507
SPRING
- upper bearing
1шт.
7
1-1333
SCREW
3шт.
8
1-4497
SWITCH
ASSEMBLY - turn signal
1шт.
9
1-1336
SEAT
- inner race
1шт.
10
1-1328
SPRING KIT
RACE - inner
1шт.
11
2-1454
HOUSING
COVER - lock housing
1шт.
12
NSS
NOT SOLD SEPARAT
BEARING ASSEMBLY
1шт.
These items (Refs. 12, 14, 20, 27, & 30) are now available only in Switch Actuator Kit 33-1174T1
1шт.
13
19-5460
LOCK BOLT
BOLT - lock
1шт.
14
NSS
NOT SOLD SEPARAT
SPRING - lock bolt
1шт.
These items (Refs. 12, 14, 20, 27, & 30) are now available only in Switch Actuator Kit 33-1174T1
1шт.
15
1-1227
BRAKE SHOE
SHOE - steering wheel lock
1шт.
16
1-1226
BRAKE SHOE
SHOE - steering wheel lock
1шт.
17
1-1225
DRIVE SHAFT
1шт.
19
1-4509
PIVOT PIN
PIN, PIVOT
2шт.
20
NSS
NOT SOLD SEPARAT
SECTOR - switch actuator
1шт.
These items (Refs. 12, 14, 20, 27, & 30) are now available only in Switch Actuator Kit 33-1174T1
1шт.
21
1-1301
SPRING
- shoe
2шт.
22
1-1230
SPRING
- release lever
1шт.
23
1-1221
PIN
- release lever
1шт.
25
1-4508
SPRING
- wheel tilt
1шт.
26
1-1323
GUIDE
- spring
1шт.
27
NSS
NOT SOLD SEPARAT
SCREW
1шт.
These items (Refs. 12, 14, 20, 27, & 30) are now available only in Switch Actuator Kit 33-1174T1
1шт.
28
1-4474
HOUSING ASSY.
HOUSING ASSEMBLY (Includes refs. 12-18, 20-23, 27, 29, 30 and 32)
1шт.
29
1-1229
SPRING
- rack preload
1шт.
30
NSS
NOT SOLD SEPARAT
RACK - switch actuator
1шт.
These items (Refs. 12, 14, 20, 27, & 30) are now available only in Switch Actuator Kit 33-1174T1
1шт.
31
1-4465
ACTUATOR
ASSEMBLY - ignition switch
1шт.
32
1-4476
CONTROL LEVER
LEVER - shoe release
1шт.
2-1463
SHAFT
(33-39) SHAFT ASSEMBLY - steering
1шт.
33
1-4488
STEM
ROD - telescope locking
1шт.
34
2-1467
SHAFT
- upper steering
1шт.
36
1-4487
YOKE
ASSEMBLY - race and steering shaft
1шт.
37
NSS
NOT SOLD SEPARAT
SPHERE - centering
2шт.
38
NSS
NOT SOLD SEPARAT
SPRING - joint preload
1шт.
39
1-4486
STEERING SHAFT
SHAFT ASSEMBLY - yoke and steering
1шт.
40
1-1334
SCREW
- support
4шт.
41
1-4493
SUPPORT ASSY.
SUPPORT - steering column housing (Includes refs. 42, 43 and 63)
1шт.
42
1-4494
FIXING BRACKET
PLATE - shroud retaining
1шт.
43
19-5459
SCREW
- oval head Phillips
1шт.
44
1-1326
LARGE PLATE
PLATE - lock
1шт.
45
1-4504
SHROUD
- steering column housing
1шт.
46
1-1335
SCREW
- washer head
1шт.
47
1-4496
IGNITION SWITCH
SWITCH ASSEMBLY - ignition
1шт.
48
1-4468
ADAPTER
- lower bearing
1шт.
49
1-4467
BEARING ASSY
BEARING ASSEMBLY
1шт.
50
2-1461
COLUMN JACKET
JACKET ASSEMBLY - steering column
1шт.
51
1-4466
ARM ASSY.
ARM ASSEMBLY - signal switch
1шт.
52
1-4498
ACTUATOR
- dimmer switch rod
1шт.
53
1-4469
COVER
CAP - column housing end cover
1шт.
54
2-1452
IGNITION SWITCH
PIVOT ASSEMBLY - switch actuator
1шт.
55
2-1462
THREADED ROD
ROD ASSEMBLY - dimmer switch
1шт.
56
1-4470
SHIELD
- tilt lever opening
1шт.
57
1-4500
BUTTON
KNOB - hazard warning
1шт.
58
19-5456
SCREW,Oval Hd, M3.5
1шт.
59
1-4499
PAD
- release lever finger
1шт.
60
1-4501
LEVER
- key release
1шт.
61
1-4506
SPRING
- key release
1шт.
62
1-6926
SCREW,Cross Oval Hd
- oval head Phillips
3шт.
63
1-6925
DOWEL
Pin
1шт.
65
2-1455
PIVOT PIN
PIN - switch activating pivot
1шт.
66
1-6927
SPRING
- pin preload
1шт.
67
1-7739
SWITCH
ASSEMBLY - dimmer
1шт.
68
2-1481
STUD
- dimmer switch
1шт.
Выбрано товаров: 75
