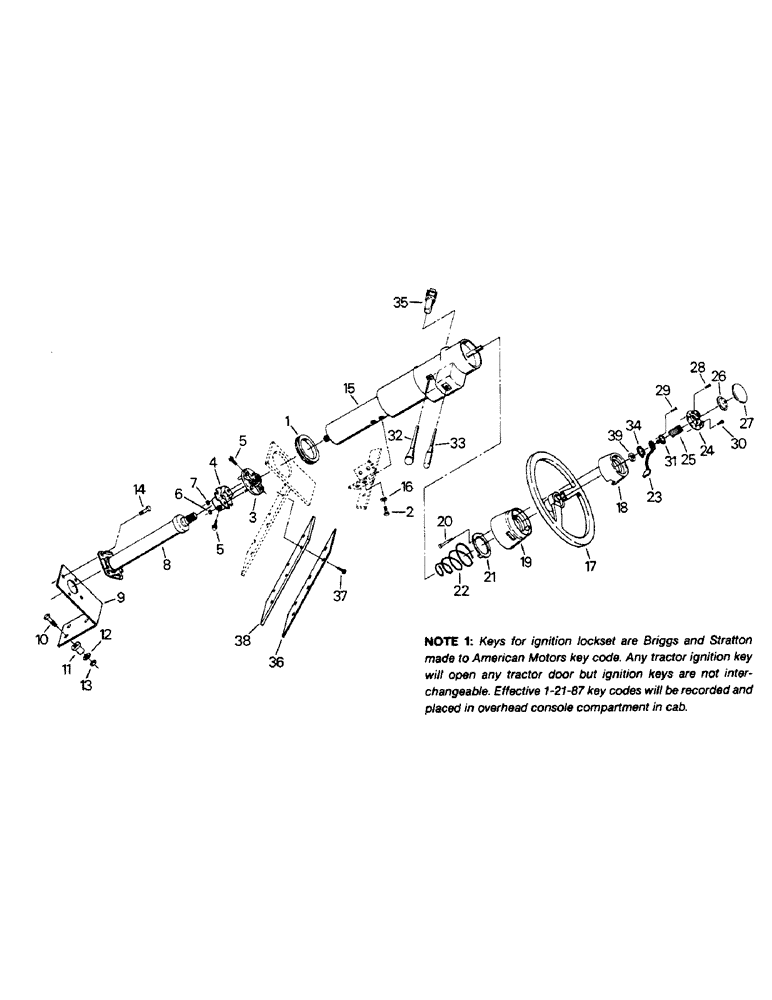

Запчасти Case IH 9110 (01-15) - STEERING COLUMN AND MOUNTING (10) - CAB

1

32-327

GROMMET

steering column

1шт.

2

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

CAPSCREW, M8 x 16 MM (11500763)

4шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

60-4390T91

COUPLING

COUPLER ASSEMBLY - steering, Includes: Ref. 3 - 7

1шт.

3

60-4436T1

FLANGE

COUPLING - steering column

1шт.

4

60-4437T1

FLANGE

- steering shaft

1шт.

5

CAS7807271

SCREW

CAPSCREW - 12 pt

2шт.

6

451399

NUT,5/16"-18, G5, Hvy

5/16 UNF G-B

1шт.

7

9420821

NUT

3/8 UNF G-B

1шт.

8

60-4230T1

STEERING COLUMN

SHAFT - steering

1шт.

9

60-4231T1

SUPPORT

BRACKET - steering shaft mounting

1шт.

10

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 UNC x 1-1/2 G-5

3шт.

11

1-3528

MOUNTING PARTS

MOUNT - bracket, rubber

3шт.

12

19-107

WASHER

- flat, 3/8

3шт.

13

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

3шт.

14

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

4шт.

15

COLUMN ASSEMBLY - steering (See Fig. 1-17)

1шт.

16

19-700

WASHER,5/16"

- flat, 5/16

4шт.

2-3755T92

STEERING WHEEL

WHEEL ASSEMBLY - steering, Includes: Ref. 17 - 22

1шт.

17

60-1827T2

WHEEL (STEERING)

WHEEL - steering

1шт.

18

60-1828T1

CAP

COVER - upper hub

1шт.

19

60-1829T1

COVER

- lower hub

1шт.

20

19-5791

SELF-TAP SCREW,Cross Pan Hd, #6 x 1 1/4"

TAPPING SCREW, no. 6 UNC x 1-1/4

2шт.

21

60-1830T1

RETAINER

- telescoping spring

1шт.

22

60-1831T1

SPRING

- telescoping

1шт.

23

60-1951T1

CONTROL LEVER

LEVER - telescoping release

1шт.

24

60-1819T1

PLATE

- base

1шт.

25

60-1820T1

SPRING

1шт.

26

60-1821T1

CUPEL

CUP - horn contact

1шт.

27

60-1822T1

BUTTON

- horn (With tan interiors)

1шт.

60-5911T1

BUTTON

- horn (With gray interiors)

1шт.

28

260-14436

SELF-TAP SCREW,Cross Pan Hd, #8 x 2 1/4"

TAPPING SCREW, no. 8 UNS x 2-1/4

1шт.

29

488-1104

SCREW,Cross Flat Hd, #10-32 x 1/4"

MACHINE SCREW, no. 10 UNF x 1/4

2шт.

30

9414743

SCREW,Tap, Gr 5

TAPPING SCREW, no. 10 UNS x 5/8

3шт.

31

18-1565

LOCK SCREW,5/16" - 18 x 0.95"

SCREW - telescoping lock

1шт.

32

18-1567T1

CONTROL LEVER

LEVER - tilt actuating

1шт.

33

1-4188T1

CONTROL LEVER

LEVER - blinker, wiper, washer and hi-low beam

1шт.

34

18-1570

RING, SNAP

RETAINER

1шт.

35

22-752

LOCK ASSY

LOCKSET - ignition actuating

1шт.

Keys for ignition lockset are Briggs and Stratton made to American Motors key code. Any tractor ignition key will open any tractor door but ignition keys are not interchangable. Effective 1-21-87 keys codes will be recorded and placed in overhead console compartment in cab.

1шт.

36

60-4459T1

COVER

PLATE

1шт.

37

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

TAPPING SCREW, 1/4 UNC x 3/4

6шт.

38

60-4751T1

SEAL

FOAM - acoustic

1шт.

39

19-1026

JAM NUT,9/16" - 18, Gr 5

9/16 UNF G-C (Included with ref. 15)

1шт.
