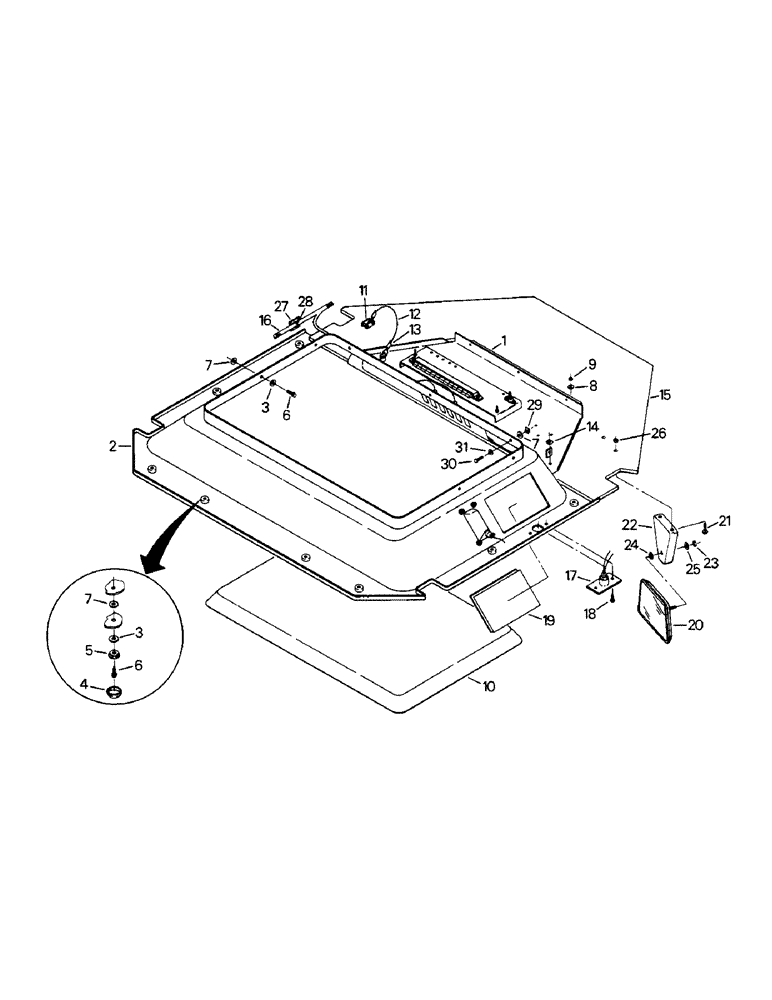

Запчасти Case IH 9110 (01-08) - DELUXE OVERHEAD ASSEMBLY (10) - CAB

1

DOOR - overhead (See Fig. 1-10)

1шт.

2

HEADLINER (See Fig. 1-11)

1шт.

3

9421089

WASHER

- flat, 3/16 x 1/2 x 1/16 thk

15шт.

4

60-5920T1

CAP

- trim (Gray)

8шт.

19-5735

CAP

- trim (Tan)

1шт.

5

1-8674

CAP WASHER

- trim cap

8шт.

6

19-259

SELF-TAP SCREW,Hex, #10 x 3/4"

TAPPING SCREW, no. 10 UNC x 3/4

12шт.

7

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 thk

15шт.

8

19-106

WASHER,5/16", SAE

- flat, 5/16

3шт.

9

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

3шт.

10

60-5921T1

FOAM

INSULATION - vinyl coated (Gray)

1шт.

60-4026T2

FOAM

INSULATION - vinyl coated (Tan)

1шт.

11

2-3604T1

LINK

- connecting

2шт.

12

60-4137T1

ROPE

WIRE ROPE - plastic coated

2шт.

13

70-5269T1

FERRULE

- wire rope (64-144)

4шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

14

19-5524

NUT

- J type, 1/4-20

2шт.

15

60-5924T1

NOISE PROTECTION

INSULATION - vinyl coated (Gray)

1шт.

60-4018T1

ISOLATOR

INSULATION - vinyl coated (Tan)

1шт.

16

20-1970T1

HARNESS

- overhead wire

1шт.

17

20-1971T91

LIGHT

ASSEMBLY - console

1шт.

18

24379R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

TAPPING SCREW, no. 8 UNS x 1/2

2шт.

19

60-5922T1

FOAM

- speaker cover (Gray)

2шт.

60-4015T1

FOAM

- speaker cover (Tan)

1шт.

20

A177462

MIRROR

- rear view (1-8617) (Includes washer and nut)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

21

9421295

SCREW,Hex Washer, #10 - 24 x 3/4"

MACHINE SCREW, #10 UNC x 3/4

2шт.

22

64-86

BRACKET

- rear view mirror

1шт.

23

19-5565

LOCK NUT,1/4"-28, GB

NUT, LOCK, , (Used with mirror 1-8617 only) 1/4"-28, GB

1шт.

24

19-105

WASHER,1/4", SAE

- flat, 1/4 (Used with mirror 1-8617)

1шт.

19-605

LOCK WASHER,Ext Tooth, 5/16"

WASHER - flat, 5/16 (Used with mirror A177462)

1шт.

25

19-467

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4 (Used with mirror 1-8617 only)

1шт.

26

19-5563

LOCK NUT

- lock, no. 10 UNC G-A

2шт.

27

22-823

MOUNT

MOUNT - adhesive backed

6шт.

28

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon tie

6шт.

29

19-6200

CLIP

NUT - J type, 1/4-20

3шт.

30

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

3шт.

31

19-105

WASHER,1/4", SAE

- flat, 1/4

3шт.
