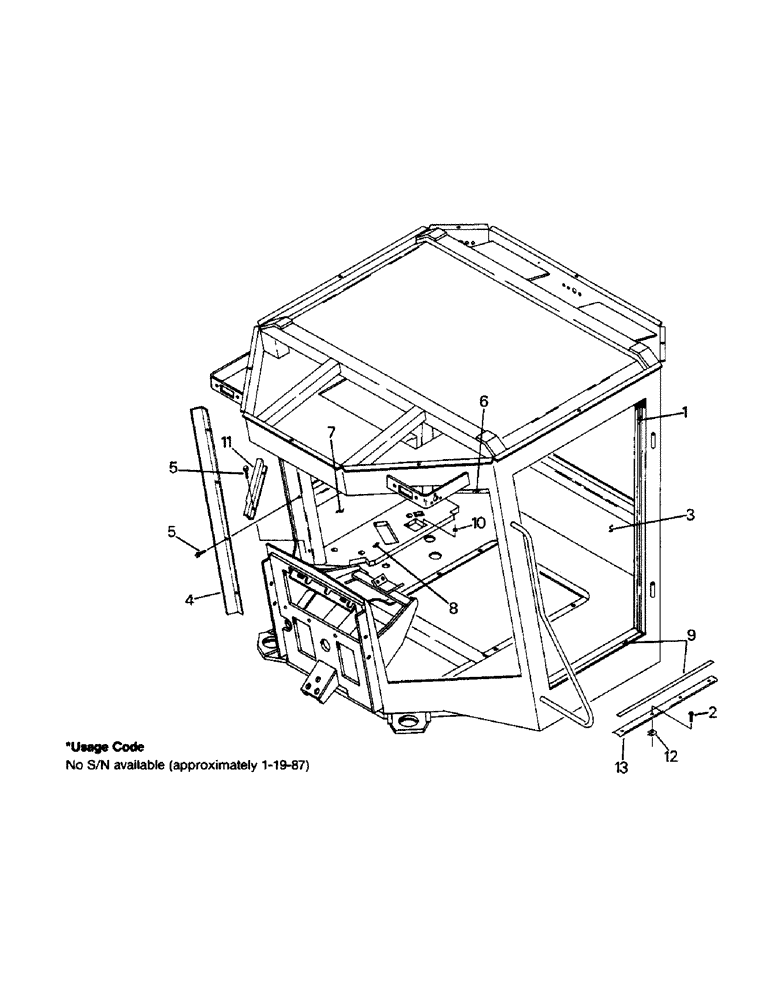

Запчасти Case IH 9110 (01-06) - DELUXE CAB INTERIOR TRIM (10) - CAB

1

60-4125T2

SEAL

- door weatherstrip

1шт.

2

19-641

SCREW,Sl Csk, #10 - 24 x 1/2"

MACHINE SCREW, no. 10 UNC x 1/2

4шт.

3

60-5935T1

NOISE PROTECTION

INSULATION - vinyl coated, cab rear (Gray)

1шт.

60-4131T1

INSULATOR

INSULATION - vinyl coated cab rear (Tan)

1шт.

4

60-4383T1

PROTECTOR

GUARD - wire harness

1шт.

5

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

TAPPING SCREW, no. 10 UNC x 1/2

6шт.

6

60-4504T1

FOAM

INSULATION - acoustic, right rear

1шт.

7

60-4503T1

FOAM

INSULATION - acoustic, right side

1шт.

8

60-5601T3

FOAM

INSULATION - acoustic, control console (60-5601T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

No S/N available (approximately 1-19-87)

1шт.

9

60-4599T1

BAND

STRIP - non-skid, 1 inch x 25 inch

2шт.

10

19-820

BOLT (SPREADER)

NUT - lock, 5/16 UNC G-A

4шт.

11

60-4403T1

PROTECTOR

GUARD - wire harness

1шт.

12

19-6119

STEEL SHEET NUT

NUT - clip

4шт.

13

60-5011T2

LARGE PLATE

PLATE - trim (60-5011T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.
