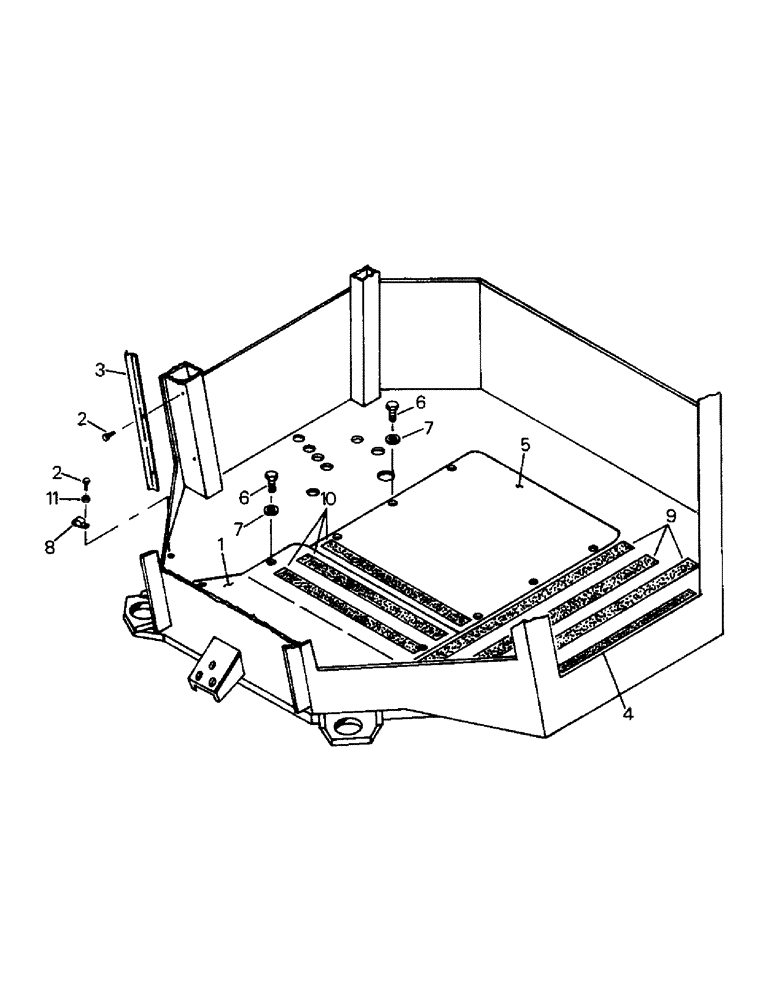

Запчасти Case IH 9110 (01-05) - FLOORBOARDS AND TRIM, ROPS ONLY CAB (10) - CAB

1

60-5612T1

PLATE

COVER - floorboard front

1шт.

2

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

TAPPING SCREW, no. 10 UNC x 1/2

6шт.

3

60-5855T1

GUARD

- wire harness

1шт.

4

60-4599T1

BAND

STRIP - non-skid, 1 inch x 25 inch

1шт.

5

60-5598T1

COVER

- floorboard rear

1шт.

6

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

13шт.

7

19-106

WASHER,5/16", SAE

- flat, 5/16

13шт.

8

31-1349

MOUNTING CLIP

CLAMP - wire harness

2шт.

9

60-5856T1

STRIP

- non-skid, 2 inch x 38 inch

3шт.

10

60-5857T1

STRIP

- non-skid, 2 inch x 25 inch

3шт.

11

19-195

WASHER,#10

- flat, no. 10 x 9/16 x .04 thk

2шт.
