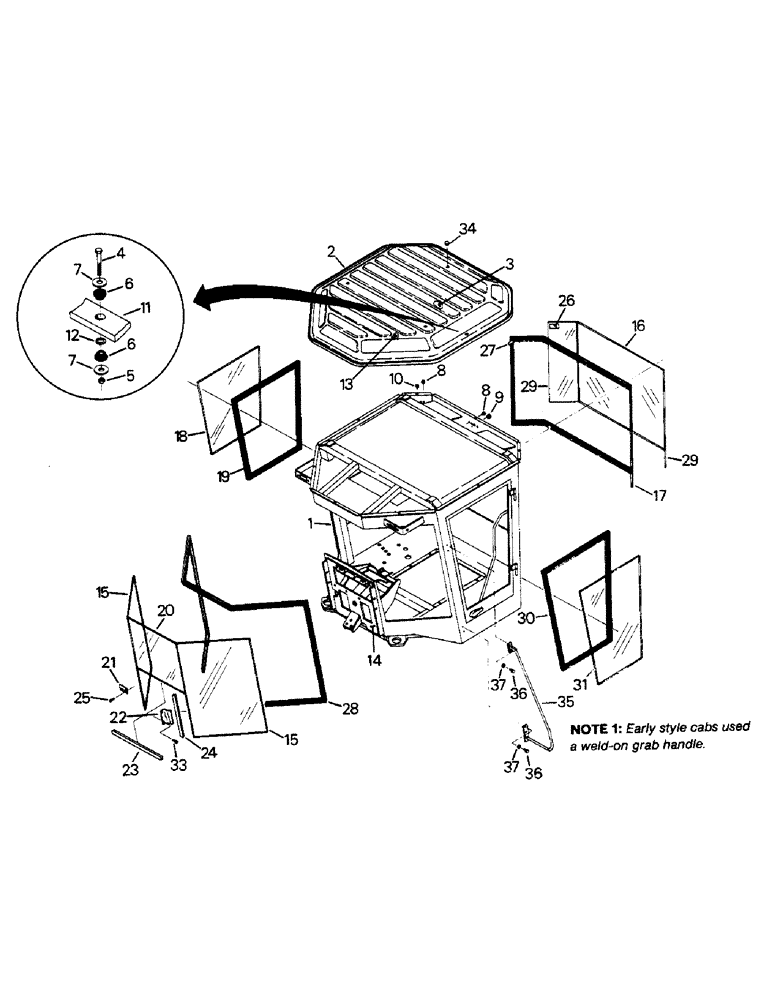

Запчасти Case IH 9110 (01-01) - DELUXE CAB AND WINDOWS (10) - CAB

1

CAB STRUCTURE (Special order item)

1шт.

2

60-5970T1

ROOF

CAP - cab roof (Red)

1шт.

3

60-4450T2

FOAM

- cab top, rear

1шт.

4

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW, 1/4 UNC x 1-1/2 G-5

8шт.

5

19-1081

LOCK NUT

- lock, 1/4 UNC G-A

8шт.

6

60-1826T1

BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L

- rubber snubber

16шт.

7

9421394

WASHER

- flat, 1/4 x 1.00 x .06 thk

16шт.

8

60-4582T1

PLUG

- for 5/16 dia. hole

13шт.

9

31-2175

PLUG

- for 3/4 dia. hole

4шт.

10

60-4401T1

PLUG

- for 5/8 dia. hole

2шт.

11

60-4583T1

FOAM

- roof cap

1шт.

12

60-4584T1

WASHER

- nylon, 9/16 x 3/4 x 3/16 thk

8шт.

13

60-4657T1

FOAM

- cab top, front

1шт.

14

60-4481T1

FOAM

- firewall

1шт.

15

60-3540T1

CAB GLASS ASSY

GLASS - front angled

2шт.

16

60-3859T1

GLASS

- rear

1шт.

17

60-3860T1

SEAL, GLASS

MOLDING - rear window

1шт.

18

60-3856T1

GLASS,CAB

GLASS - side

1шт.

19

60-3857T1

SEAL, GLASS

MOLDING - side window

1шт.

20

60-4315T1

WINDSHIELD

GLASS - front

1шт.

21

60-2774T1

CLAMP

CLIP - front window retaining

2шт.

22

60-4146T1

SUPPORT

CLIP - angled window retaining

2шт.

23

60-3039T1

SEAL, GLASS

ISOLATOR - front window

1шт.

24

60-3040T1

SEAL, GLASS

ISOLATOR - angle window

2шт.

25

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

TAPPING SCREW, no. 10 UNC x 1/2

4шт.

26

2-6879T1

DECAL

- emergency exit

1шт.

27

20-1814T1

SEAL, GLASS

SLEEVE - heat shrink

1шт.

28

60-4682T1

MOLDING

- front and angled windows

1шт.

29

60-3858T1

GLASS

- rear angled

2шт.

30

60-4602T1

SEAL, GLASS

MOLDING - door window

1шт.

31

60-4603T1

GLASS

- door

1шт.

32

1-1055

SEALANT

ANT - RTV window sealing (Used on refs. 15, 16, 20 and 29)

1шт.

33

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, 1/4 UNC x 1/2

4шт.

34

31-2595

PLUG

- plastic (Fitting holes)

3шт.

35

60-5861T1

HANDLE

- grab

1шт.

Early style cabs used a weld-on grab handle

1шт.

36

19-5348

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

CAPSCREW, 3/8 UNC x 7/8 G-5

4шт.

37

19-107

WASHER

- flat, 3/8

4шт.
