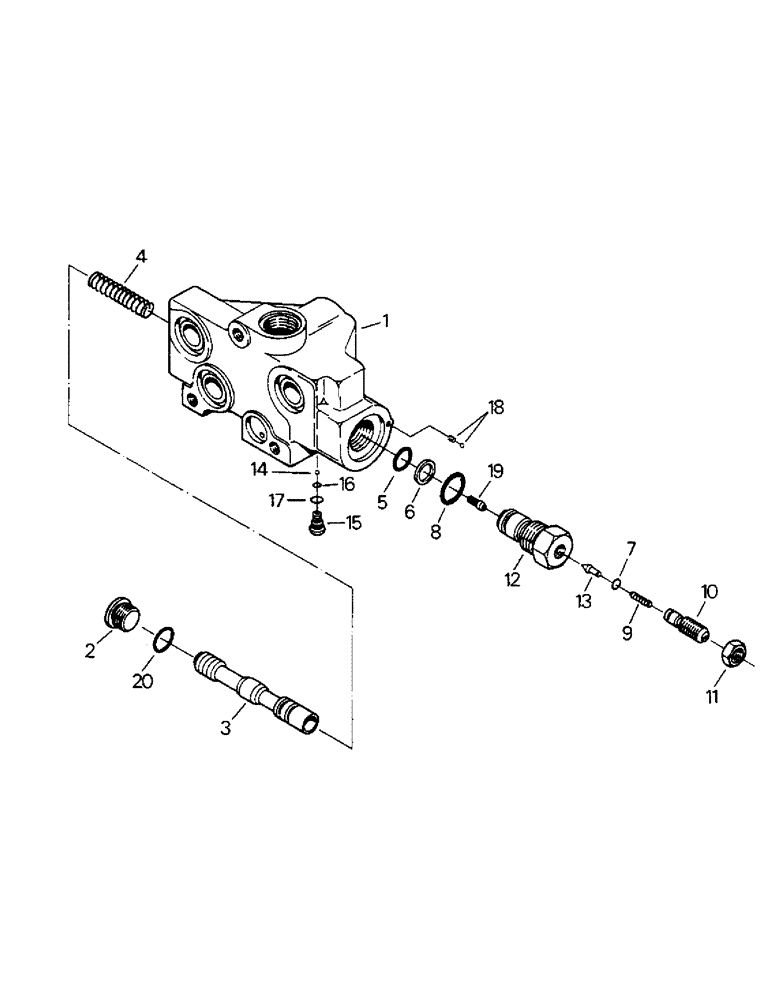

Запчасти Case IH 9110 (08-18) - INLET BODY ASSEMBLY (07) - HYDRAULICS

50-2960T92

VALVE

(1-20) BODY ASSEMBLY - inlet (50-2960T91), Includes: Ref. 1 - 20

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

50-2582T1

SEAL KIT

KIT - seal, Includes: Ref. 5, 6, 7, 8, 14, 16, 17 and 20

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - inlet

1шт.

2

31-2094

PLUG

- 7/8-14 o-ring boss (Includes ref. 20)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - compensator

1шт.

4

50-2961T1

SPRING

- compression

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 50-2582T1

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit, P/N 50-2582T1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 50-2582T1

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 50-2582T1

1шт.

9

50-2578T1

SPRING

- compression

1шт.

10

50-2579T1

ADJUSTMENT SCREW

- adjusting

1шт.

11

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

1шт.

12

50-2580T1

SPINDLE

HOUSING - relief valve

1шт.

13

50-1751T1

VALVE POPPET

POPPET - pilot

1шт.

14

104916

BALL BEARING,0.1875 mm OD

BEARING - ball

1шт.

Part of Seal Kit, P/N 50-2582T1

1шт.

50-3002T91

PLUG

ASSEMBLY - shuttle (50-1649T91), Includes: Ref. 15 - 17

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - shuttle

1шт.

50-1654T1

SEAL KIT

KIT - seal, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 50-2582T1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 50-2582T1

1шт.

18

50-2566T1

PLUG

- expansion

1шт.

19

50-2581T1

FILTER

- screen

1шт.

20

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- plug

1шт.

Part of Seal Kit, P/N 50-2582T1

1шт.
