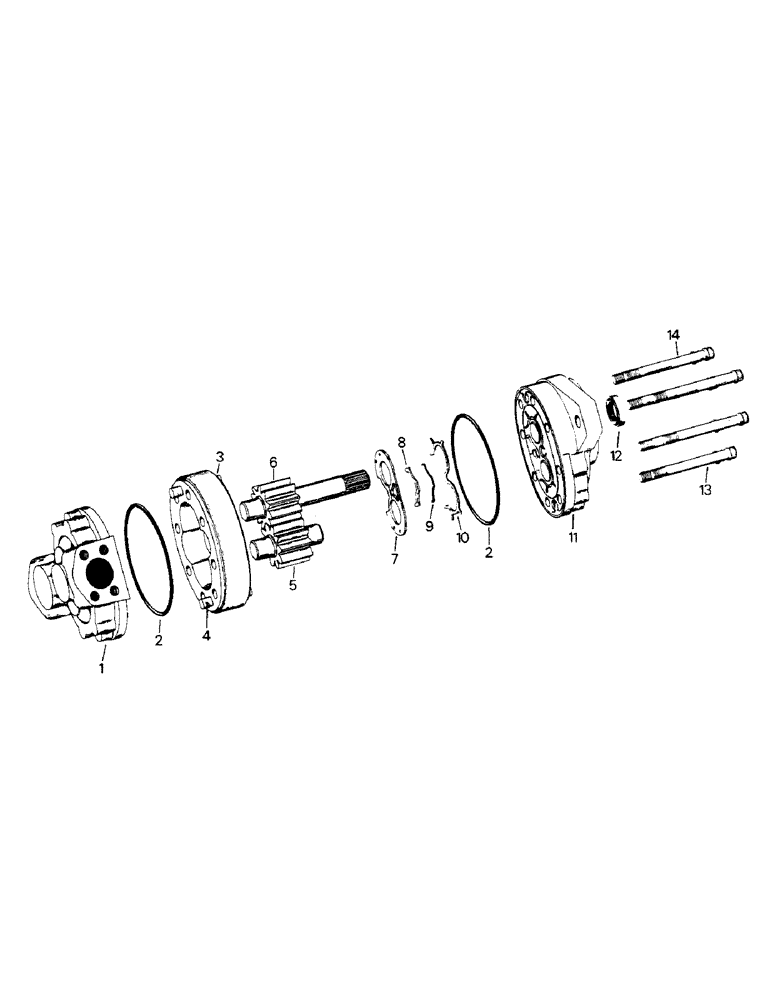

Запчасти Case IH 9110 (08-13) - GEAR PUMP ASSEMBLY (07) - HYDRAULICS

50-2662T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - gear, Includes: Ref. 1 - 14

1шт.

50-2834T1

SEAL KIT

KIT - seal, Includes: Ref. 2, 7, 8 and 9

1шт.

1

50-2826T1

PLATE

- back

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

Part of Package Seal Kit, P/N 50-2834T1

1шт.

3

50-2827T91

BODY

ASSEMBLY Includes Ref. 4

1шт.

4

50-2828T1

PIN

- dowel

4шт.

5

50-2829T1

GEAR

- idler

1шт.

6

50-2830T1

GEAR

- drive

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of Package Seal Kit, P/N 50-2834T1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

Part of Package Seal Kit, P/N 50-2834T1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - molded o-ring

1шт.

Part of Package Seal Kit, P/N 50-2834T1

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

11

50-2831T1

LARGE PLATE

PLATE - front

1шт.

12

18-680

SEAL

- input

1шт.

13

19-1625

BOLT,Flg, 3/8" - 16 x 3 3/4", Gr 8

CAPSCREW - 12 point, 3/8 UNC x G-8

4шт.

14

19-1626

BOLT,Flg, 3/8" - 16 x 4", Gr 8

CAPSCREW - 12 point, 3/8 UNC x 4 G-8

4шт.
