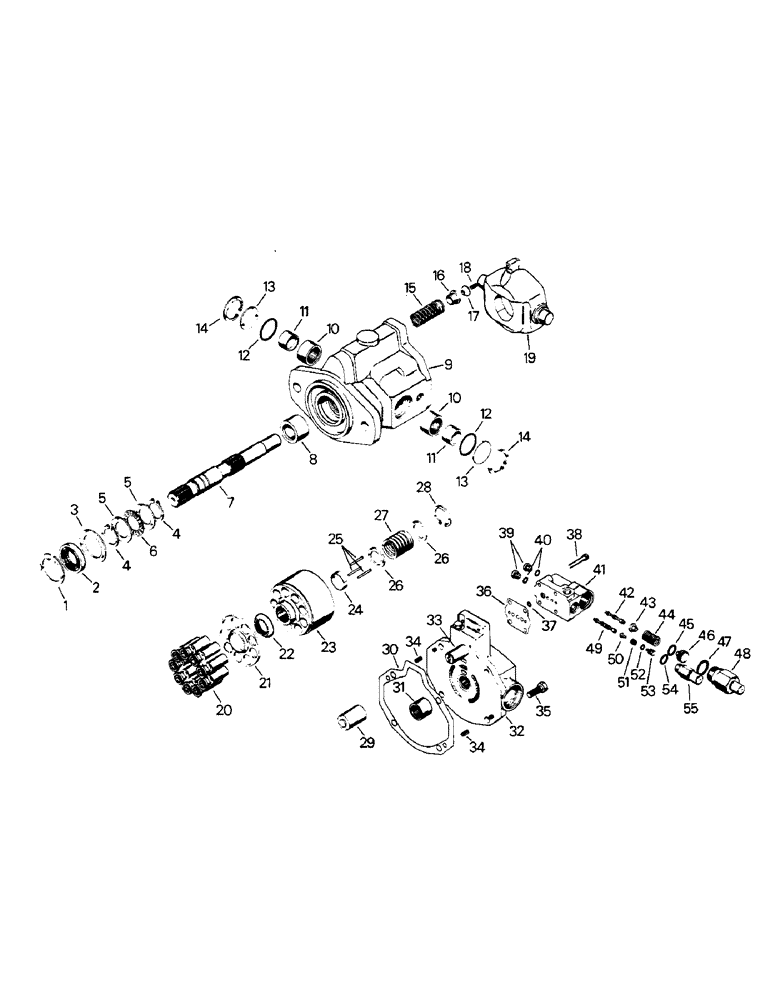

Запчасти Case IH 9110 (08-11) - PISTON PUMP ASSEMBLY (07) - HYDRAULICS

50-2664T91

PUMP

ASSEMBLY - piston, Includes: Ref. 1 - 55

1шт.

50-2664T91R

REMAN-HYD PUMP

9110 (PRIOR TO S/N JCB0003600) (12/86-6/89)

1шт.

50-2664T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

50-2825T91

SEAL KIT

KIT - seal and gasket, Includes: Ref. 1, 2, 4, 12, 14, 30, 36, 37, 40, 45, 47, 52 and 54

1шт.

1

50-2784T1

RING

- snap

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

2

50-2785T1

SEAL

- input shaft

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

3

50-2786T1

WASHER

1шт.

4

50-2787T1

RING

- snap

2шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

5

50-2788T1

RING RACE

RACE - thrust

2шт.

6

50-2789T1

THRUST BEARING

- thrust

1шт.

7

50-2790T1

SHAFT

- input, drive

1шт.

8

50-2792T1

BEARING

- input drive

1шт.

9

50-2791T91

HOUSING ASSY.

HOUSING ASSEMBLY (Includes refs. 8 and 34)

1шт.

10

50-2793T1

BEARING

- cam plate

2шт.

11

50-2794T1

RING RACE

RACE - bearing inner

2шт.

12

50-2795T1

O-RING

O-RING - seal

2шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

13

50-2796T1

COVER

- trunnion

2шт.

14

50-2797T1

RING

- snap

2шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

15

50-2798T1

SPRING

- compression

1шт.

16

50-2799T1

COLLAR

- spring

1шт.

17

50-1793T1

BUTTON

- pivot

1шт.

18

50-1794T1

PIN

- roll

1шт.

19

50-2800T1

PLATE

- cam

1шт.

50-2801T1

CYLINDER

KIT - rotating group, Includes: Ref. 20 - 30

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON

9шт.

21

NSS

NOT SOLD SEPARAT

PLATE - piston pump shoe

1шт.

22

NSS

NOT SOLD SEPARAT

PIVOT - piston plate

1шт.

23

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

25

NSS

NOT SOLD SEPARAT

PIN - cylinder block

3шт.

26

NSS

NOT SOLD SEPARAT

WASHER - spring rear

2шт.

27

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

28

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

29

50-2802T1

PISTON

- control

1шт.

30

50-2803T1

GASKET

- back plate

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

50-2804T91

PLATE

ASSEMBLY - back, Includes: Ref. 31 - 40

1шт.

31

50-2805T1

ROLLER BEARING

- input shaft

1шт.

32

NSS

NOT SOLD SEPARAT

PLATE - back

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - guide

1шт.

34

50-2806T1

PIN

- roll

2шт.

35

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW, 3/8 UNC x 1-1/4 G-8

4шт.

36

50-2808T1

GASKET

- compensator

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

37

50-2809T1

O-RING

- seal

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

38

138203

HEX SOC SCREW,1/4" - 20 x 1 1/4", Gr 8

CAPSCREW - socket head, 1/4 UNC x 1-1/4 G-8

4шт.

39

50-2812T91

O-RING

- o-ring (Includes ref. 40)

2шт.

40

50-2813T1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

- plug

2шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

50-2810T91

EQUALIZER

COMPENSATOR ASSEMBLY, Includes: Ref. 41 - 55

1шт.

41

NSS

NOT SOLD SEPARAT

BODY - compensator

1шт.

42

NSS

NOT SOLD SEPARAT

SPOOL - pressure

1шт.

43

50-2814T1

SPRING SEAT

SEAT - spring retainer

1шт.

44

50-2815T1

SPRING

- compression

1шт.

45

50-2816T1

O-RING

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

46

50-2817T1

PISTON

FOLLOWER - pressure spring

1шт.

47

50-2818T1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- plug

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

48

50-2819T1

CAP

- pressure adjusting

1шт.

49

NSS

NOT SOLD SEPARAT

SPOOL - flow

1шт.

50

50-2820T1

SPRING SEAT

SEAT - spring retainer

1шт.

51

50-2821T1

SPRING

- compression

1шт.

52

50-2822T1

O-RING

- seal

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

53

50-2823T1

PISTON

FOLLOWER - flow spring

1шт.

54

50-1821T1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-RING - plug

1шт.

Part of Seal and Gasket Kit, P/N 50-2825T91

1шт.

55

50-2824T1

CAP

- flow adjustment

1шт.
