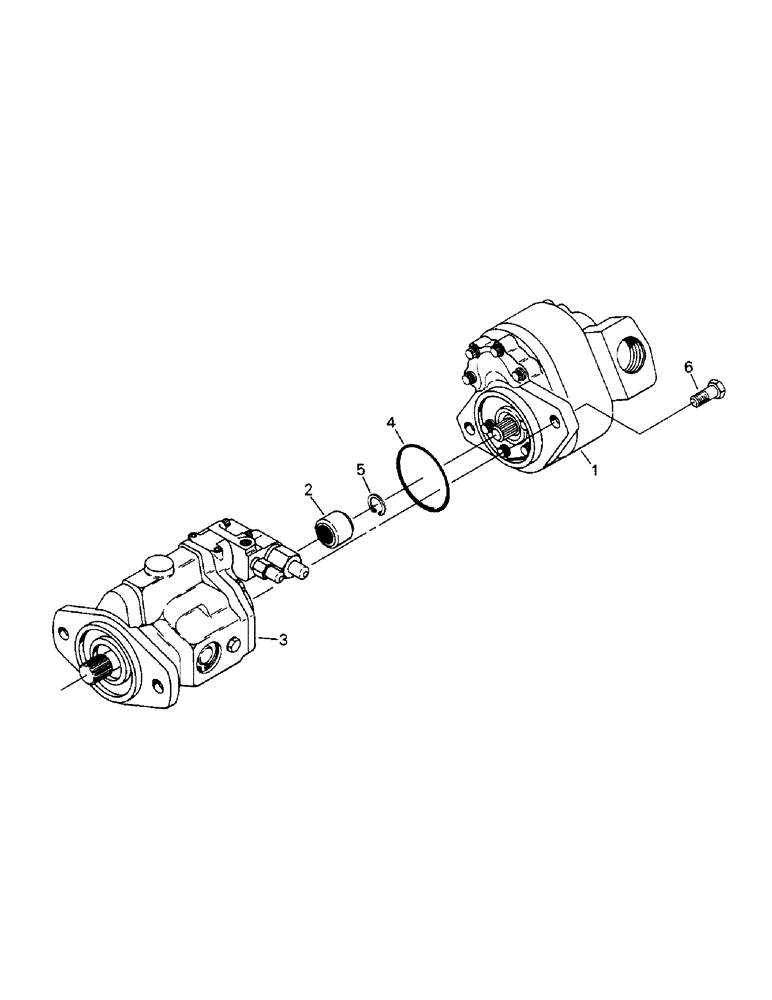

Запчасти Case IH 9110 (08-10) - TANDEM PUMP ASSEMBLY (07) - HYDRAULICS

50-2621T91

PUMP

ASSEMBLY - tandem, Includes: Ref. 1 - 6

1шт.

1

PUMP ASSEMBLY - gear (See Fig. 8-13)

1шт.

2

50-2663T1

COUPLING

- pump drive

1шт.

3

PUMP ASSEMBLY - piston (See Fig. 8-11)

1шт.

4

50-2665T1

O-RING

- pump seal

1шт.

5

50-2666T1

RING, SNAP

RING - lock, coupling

1шт.

6

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 UNC x 1-1/2 G-5

2шт.
