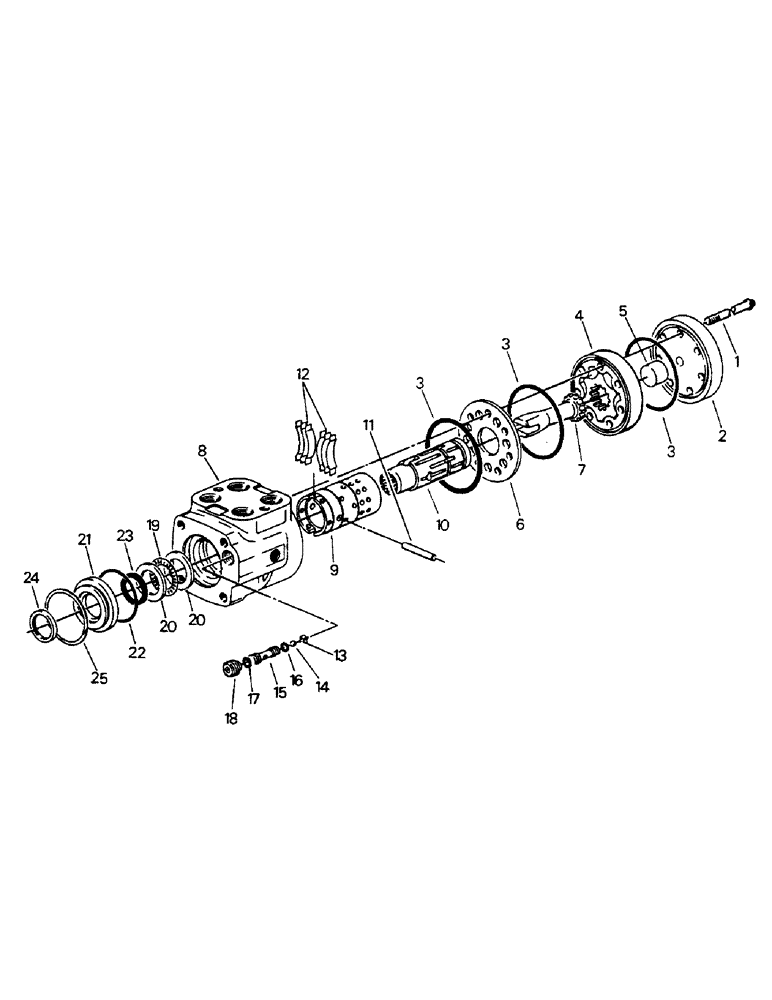

Запчасти Case IH 9110 (08-08) - STEERING CONTROL VALVE (07) - HYDRAULICS

50-2600T91

UNIT

CONTROL VALVE - steering, Includes: Ref. 1 - 25

1шт.

1

18-1734

BOLT,Hex, 5/8" - 11 x 2", Gr 5

CAPSCREW - 12 point

7шт.

2

2-2422

KIT

CAP - end cover

1шт.

3

2-6913T1

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

seal

3шт.

4

33-1039T1

GEAR-SET

GEAR SET

1шт.

5

2-2057

SPACER

1шт.

6

18-1686

PLATE

- spacer

1шт.

7

18-128

DRIVE

- gear set

1шт.

33-1040T91

CONTROL

ASSEMBLY, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

9

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

11

18-157

PIN

- dowel

1шт.

12

18-1689

SPRING

- centering

6шт.

13

2-2059

RETAINER

- check ball

1шт.

14

2-2060

BALL

- check

1шт.

15

2-2061

SEAT

SEAL - check ball

1шт.

16

18-150

SEAL,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

2-2062

SEAL

O-RING

1шт.

18

2-2063

SET SCREW

- set

1шт.

19

18-1693

NEEDLE BEARING

BEARING - needle thrust

1шт.

20

2-2064

RING RACE

RACE - bearing

1шт.

21

18-1695

BUSHING

- seal gland

1шт.

22

18-1694

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

23

18-144

SEAL

- guard ring

1шт.

24

18-137

OIL SEAL

- input

1шт.

25

18-1696

SEALING RING

RING - snap

1шт.
